Power Indicator
Lights
Revision C

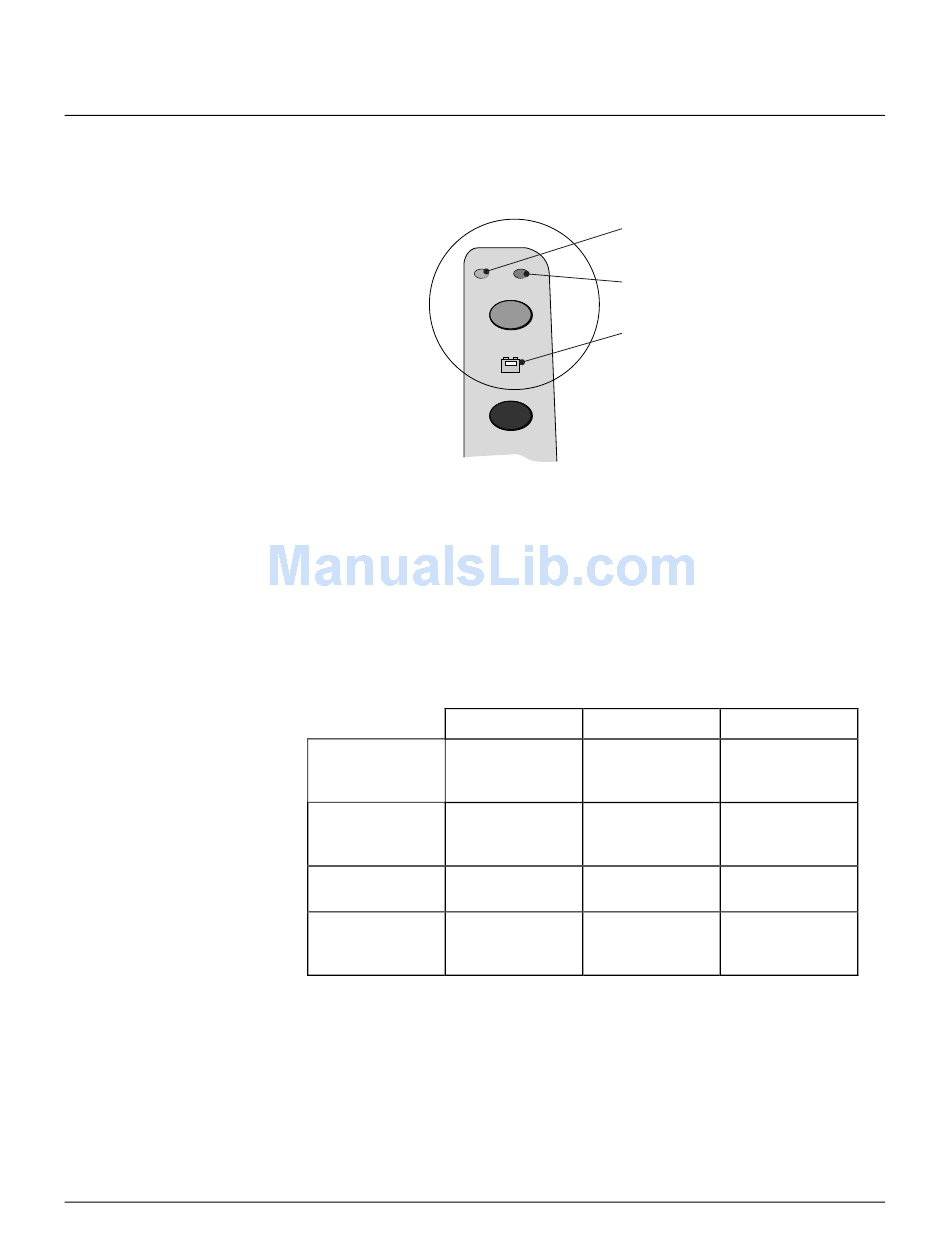

There are three power indicator lights on the front of the monitor. The
illustration below identifies these indicator lights.
AC
Power
Charging Status
Graph Go/Stop
NBP Go/Stop
These indicators, when lit, denote a power condition. Conditions may be
designated with a single indicator or a combination of indicators. The chart
below details these power conditions and their indicators.
In the chart below, an "X" indicates that the indicator light shown at the
top of the column is lit.
Conditions Indicated by Power Indicator Lights
Unit is AC
powered; battery
is being charged
Unit is AC
powered; battery
is fully charged
Unit is battery
powered
Conditioning;
battery is being
discharged*
* In this condition, the battery can be used but be aware it is not fully
charged so usage time is unpredictable. The system message "COND IS
RUNNING" is displayed.
NOTE: If the Charging Status LED is blinking yellow, this indicates a
malfunction in the battery management system. Please contact
Service.
