Analysis Settings - GE Medical Systems Dash 2000 Operator's Manual

Analysis Settings

8-16
To display the ECG Analysis Settings Menu, use the Trim Knob control to
select the Analysis Settings label from the ECG Menu.
MAIN
MENU

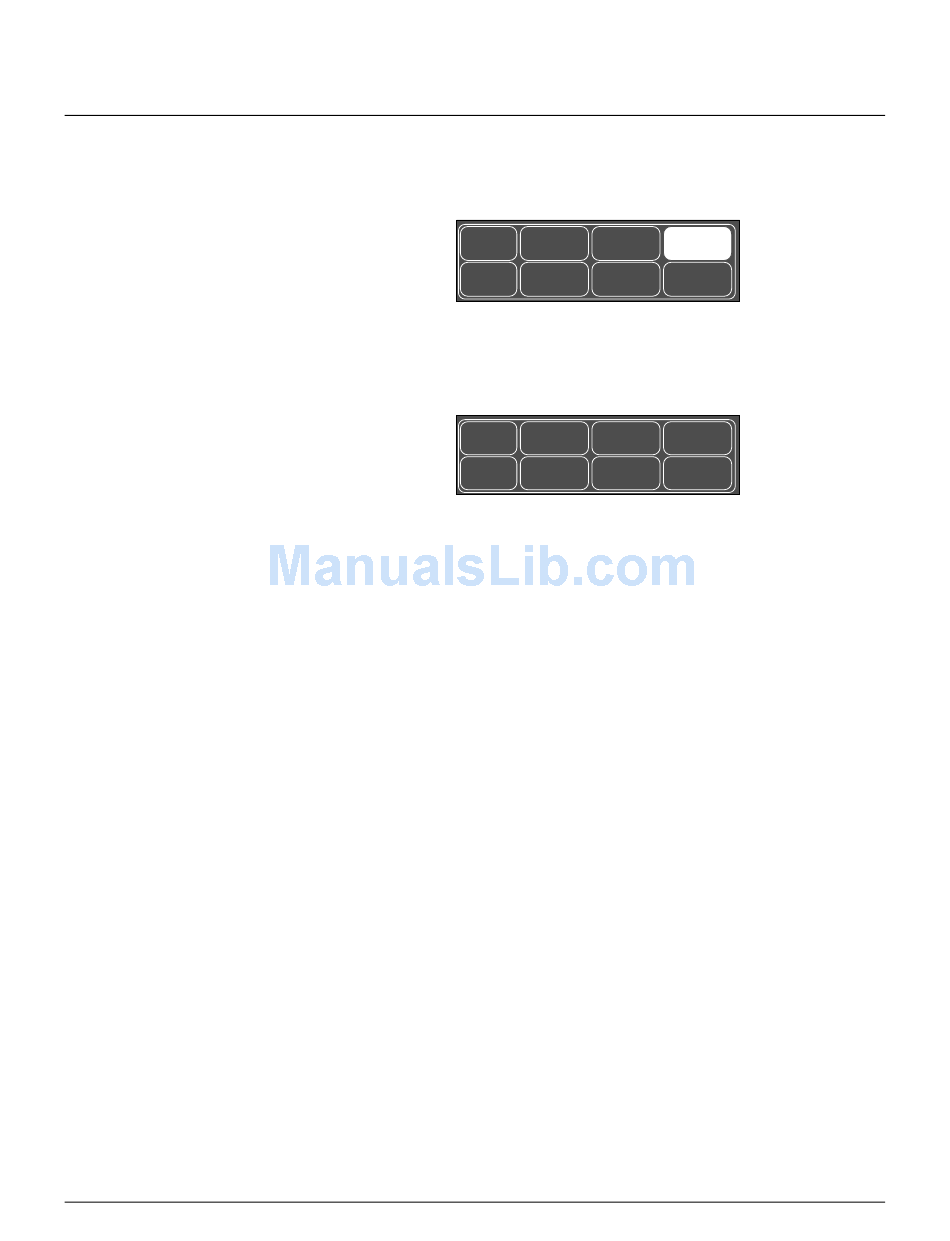

The Analysis Settings Menu is displayed at the bottom of the screen.
MAIN
MENU
PREV.
MENU
ANALYSIS SETTINGS Menu
With the Trim Knob control, you can now select any of the displayed
options.
•
ECG FILTER—select one of four filter settings for the ECG signal.
•
LEAD ANALYSIS—choose single lead or multi-lead processing of ECG.
•
DETECT PACE—turn pacemaker detection on/off or access help.
•
QRS WIDTH—choose QRS width (normal or narrow) or access help.
•
ARRHYTH—turn arrhythmia detection on/off.
