Limits

Revision C
This option provides an information window that shows the alarm limits for
displayed pressures (systolic, diastolic, and/or mean). A new set of menu
options is displayed to allow you to adjust these limits.
For this example, the ART information is used. Follow this procedure:
1. Select ART LIMITS option from the ART Menu. An information
window is displayed on the screen and a new set of menu options is
displayed in the menu area.
21-NOV-2000 16:27
II
ART LIMITS
>
RETURN
ART-S
ART-D
ART-M
ART-R
MAIN
MENU

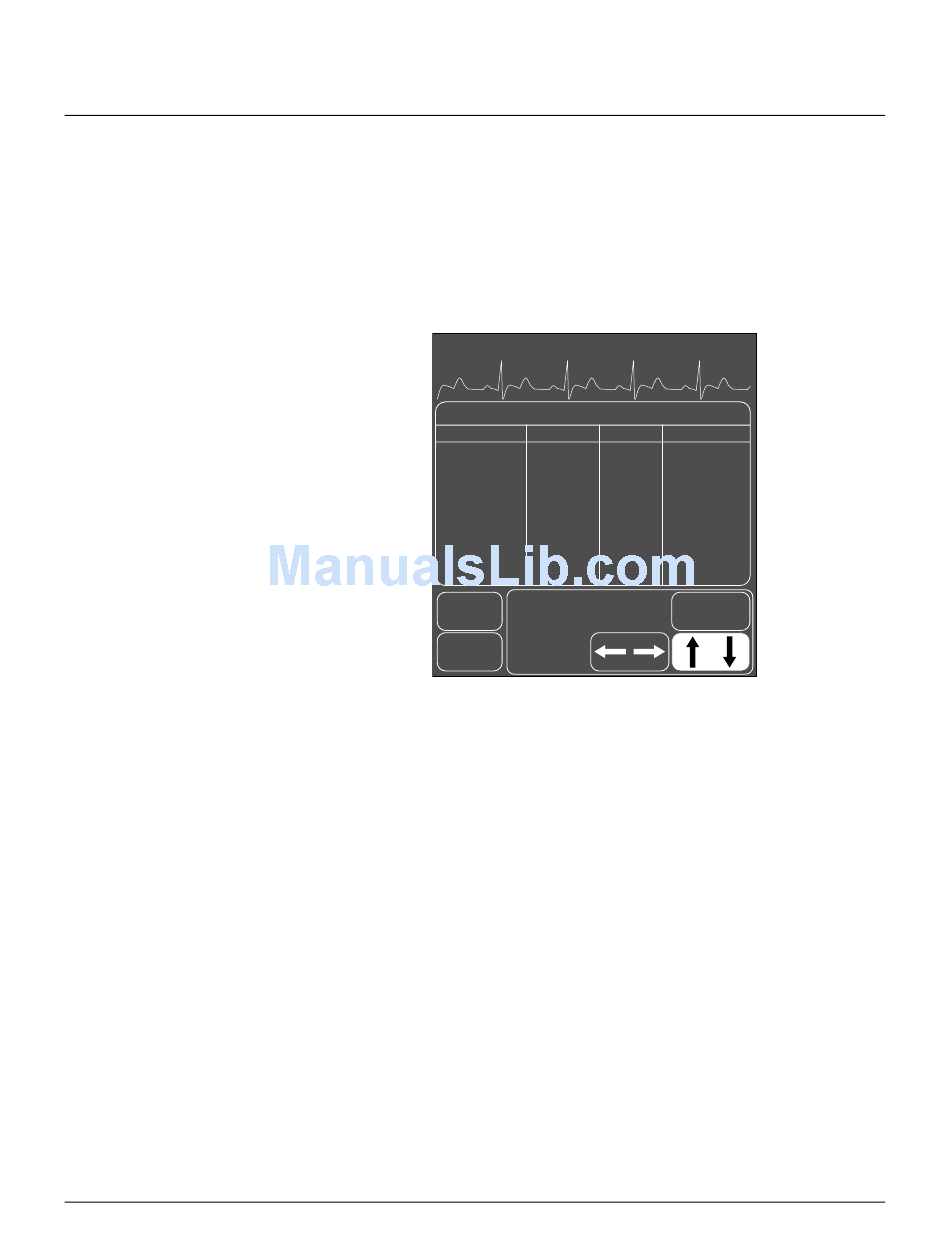

ART LIMITS Menu and Information Window
2. Rotate the Trim Knob control to move the pointer (>) through the list.
3. Press the Trim Knob control when the pointer is in front of the
parameter for which you want to change limits. The parameter label
highlights.
4. Turn the Trim Knob control to highlight the low or high limit.
5. Press the Trim Knob control again and rotate to change value. Press
the Trim Knob control to complete the change.
6. Rotate the Trim Knob control to highlight the parameter label and
press to unhighlight.
7. Select RETURN when all changes are completed. The popup menu and
information window close.
