Electrode Placement

5-Leadwire Electrode
Placement
RA
V1
RL
AHA Configuration
8-4
The chart below shows the label used to identify each leadwire. Included also
is its associated color code per AHA and IEC standards.
Leadwire
AHA
(Software Label)
Color
RA (right arm)
white
LA (left arm)
black
RL (right leg)
green
LL (left leg)
red
V1 (precordial)
brown
V2 (precordial)
yellow
V3 (precordial)
green
V4 (precordial)
blue
V5 (precordial)
orange
V6 (precordial)
purple

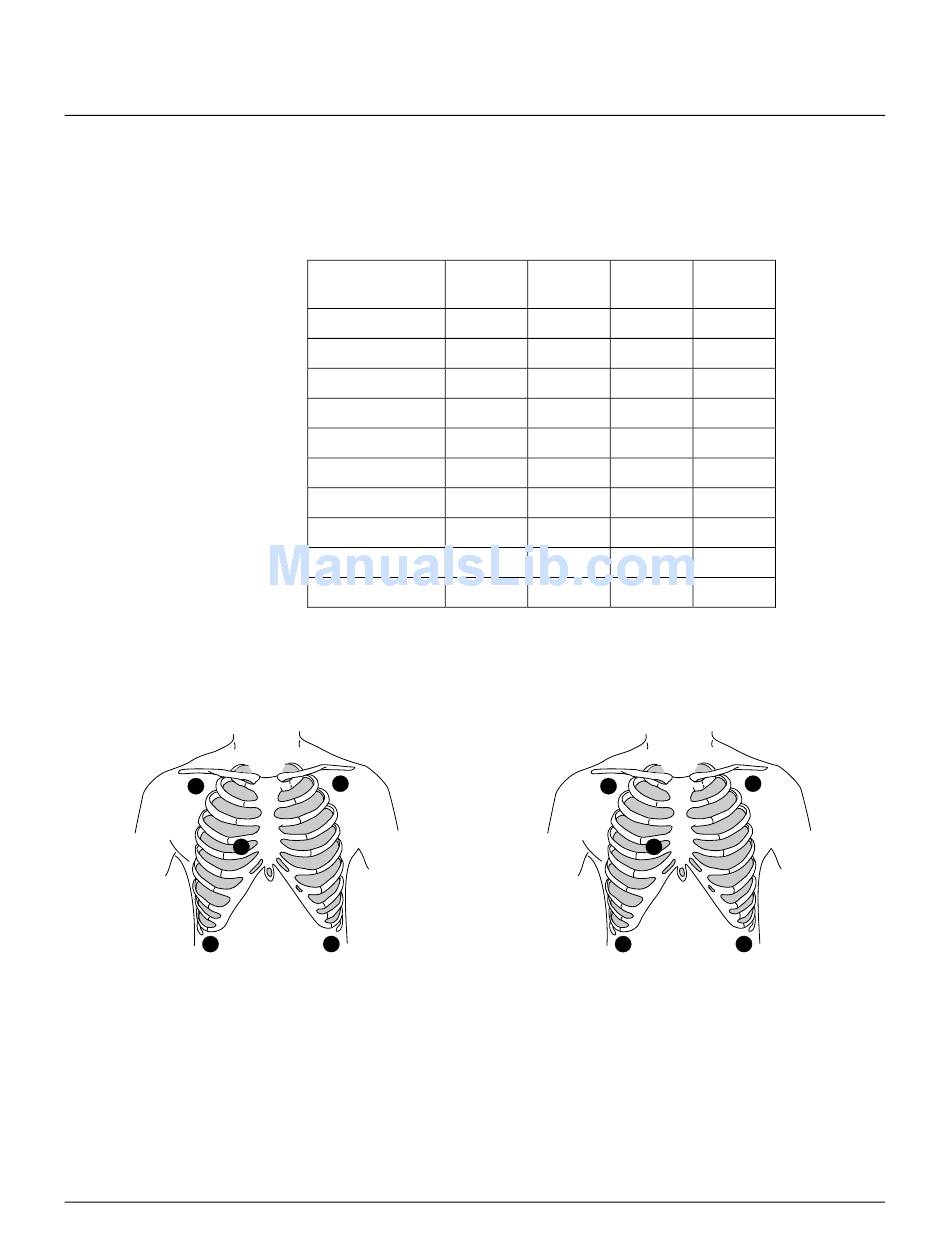

Following is a suggested configuration when using five leadwires:
LA
LL
132B
Right arm and left arm electrodes should be placed just below the right and left
clavicle.
Right leg and left leg electrodes should be placed on a non-muscular surface
on the lower edge of the rib cage.
The chest electrode should be placed according to the physician's preference.
Dash 2000 Patient Monitor
2005873-001
AHA
IEC
IEC
Label
Color
Label
RA
red
LA
yellow
RL
black
LL
green
V1
white
V2
yellow
V3
green
V4
brown
V5
black
V6
purple
R
C1
N
IEC Configuration
R
L
N
F
C1
C2
C3
C4
C5
C6
L
F
132C
Revision C
