EQUIPMENT OVERVIEW: Components
The Dash 3000/4000 patient monitor can function by itself with a built-in
writer, or it can be cabled in with the optional Unity Network via
Ethernet. Optional components are, if using Wireless LAN or cabled to
Ethernet, a Centralscope central station and the Clinical Information
Center.
This device is designed to monitor a fixed set of parameters including
ECG, noninvasive blood pressure, impedance respiration, SpO2, and
temperature. Invasive pressure and EtCO2 are optional features.
Additional specialized features include cardiac output, cardiac
calculations, pulmonary calculations, dose calculations, PA wedge (PA
wedge is only available with the invasive pressure option), ICG module
interface, and SAM module interface.
AC Battery
Power
Charging Status
A B
Graph
NBP Go/Stop
Zero All
Trim Knob
Silence Alarm/
Admit
001C

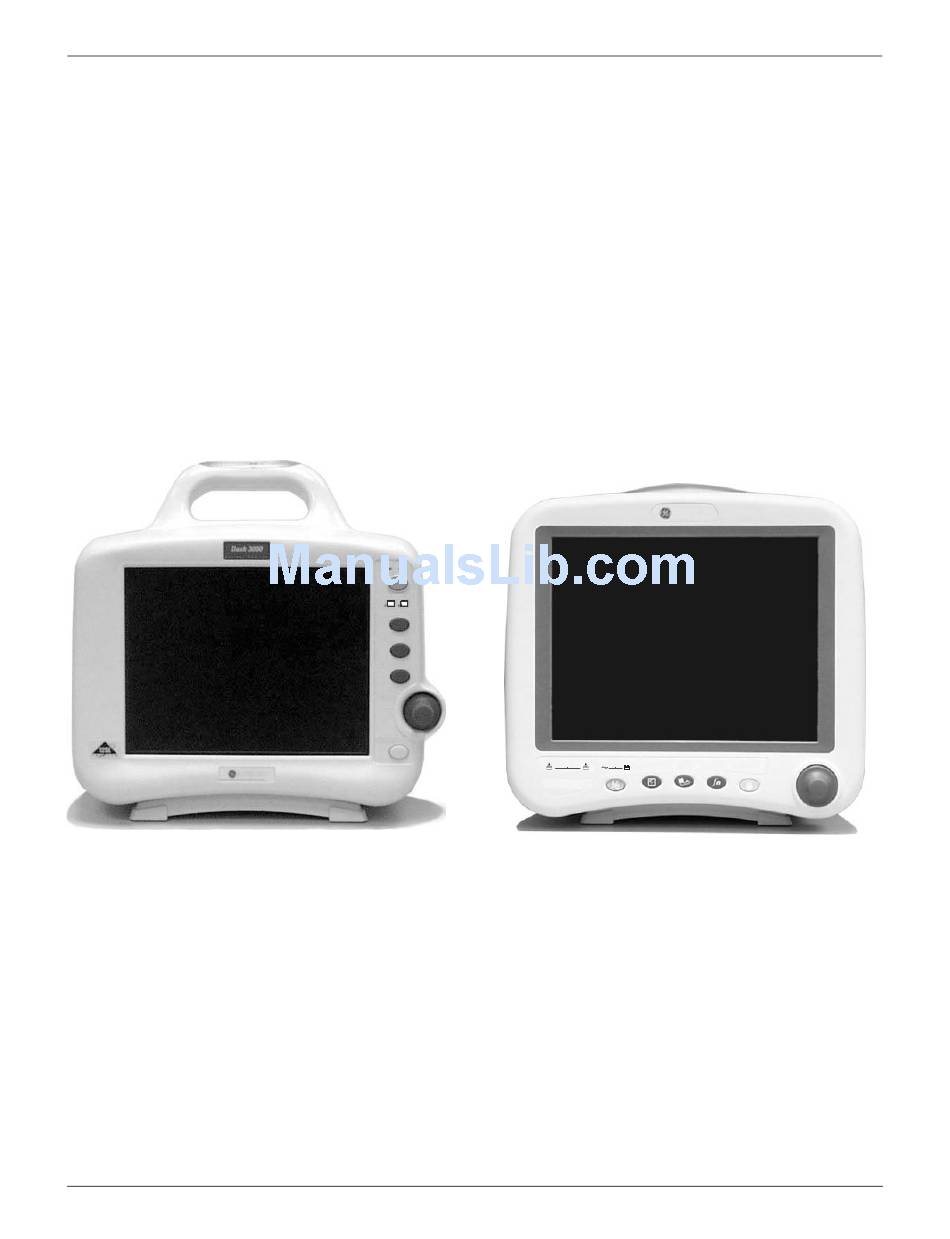

Dash 3000/4000 Patient Monitor
2000966-105
Charging Status Power Graph Go/Stop NBP Go/Stop Zero All
A B
Dash 4000
Dash 4000 Monitor
Silence Alarm/
Admit
051C
