Toolbar Options

In either the link display or the floor display, the operational status of
3Com equipment is indicated by the following colors:
Green — Up
Yellow — Up (but with minor service degradation)
Orange — Up (but with major service degradation)
Red — Down
Blue — Unknown
The Explore view has a toolbar in the link display and the floor display.
Table 33 lists the options on the toolbar in the link display.

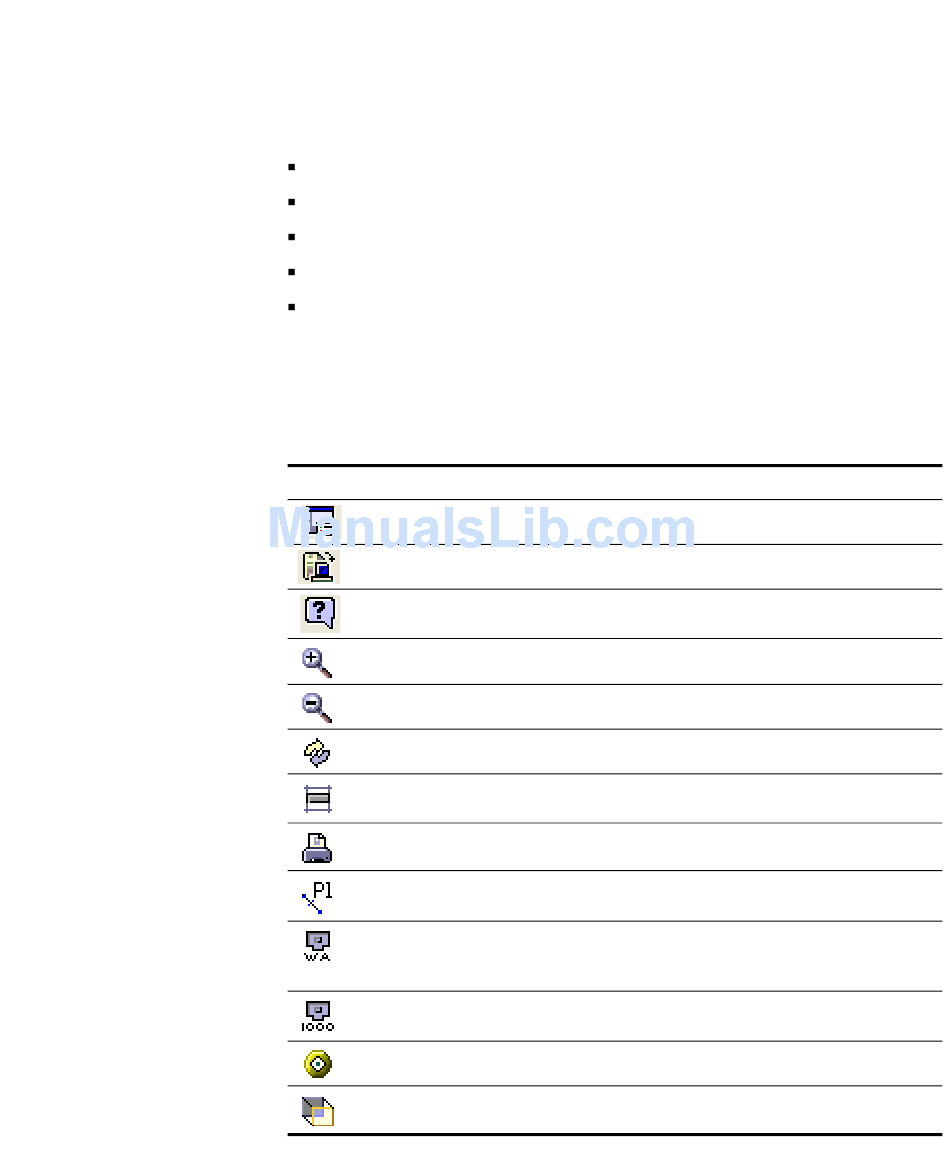

Table 33 Toolbar Options in Link Display of Explore View
Icon Description
Edit 3WXM preferences.
Configure 3WXM Services.
Launch Help.
Zoom in.
Zoom out.
Refresh the information.
Fit the view in the window.
Print the view displayed in the window.
Display link labels for WX switches, ports, buildings, floors.
Show wired authentication ports. A wired authentication port
uses 802.1X authentication for wired Ethernet clients attached to
the port.
Show network ports. A network port provides a physical link to
Ethernet devices.
Show MAPs.
Display the view in reverse video.
