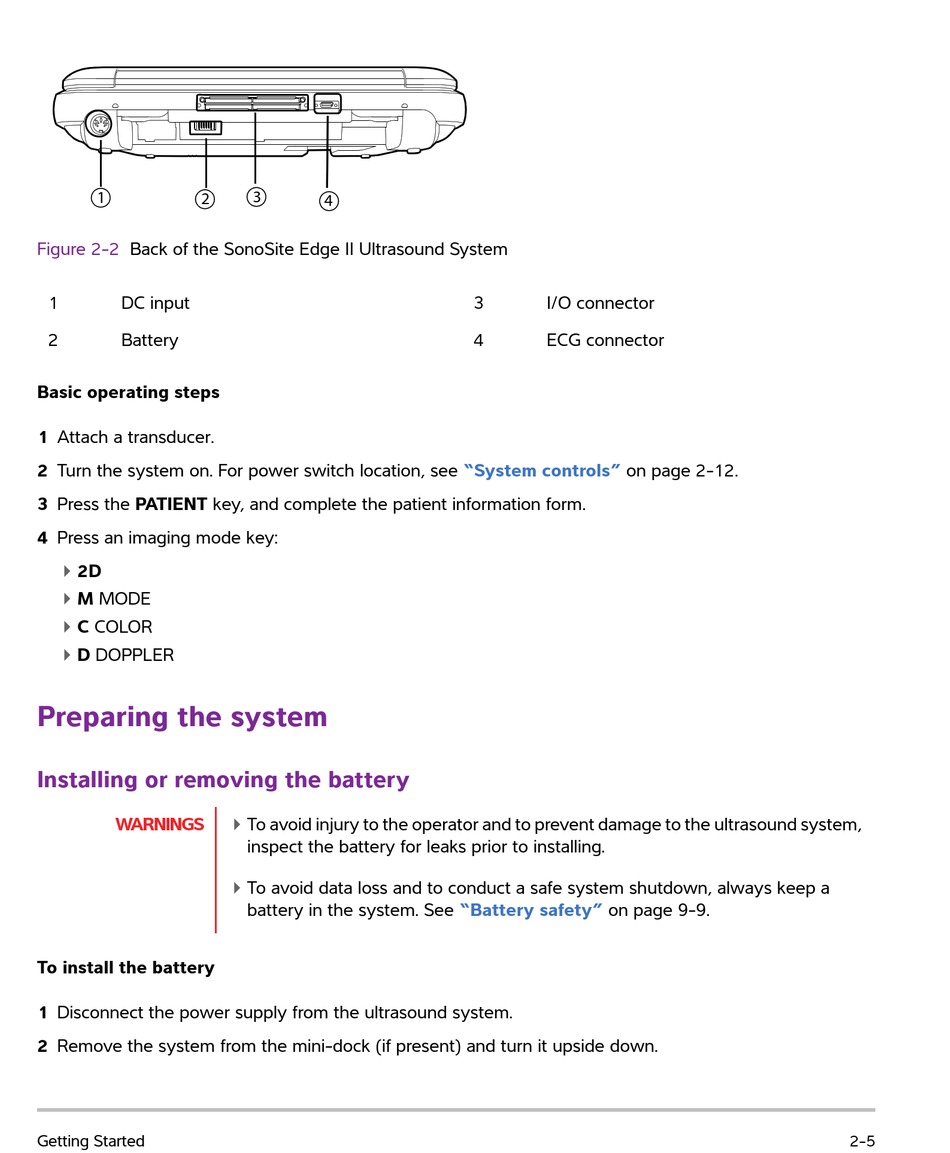

Figure 2-2 Back of the SonoSite Edge II Ultrasound System
1 DC input
2 Battery
Basic operating steps
1 Attach a transducer.
2 Turn the system on. For power switch location, see
3 Press the PATIENT key, and complete the patient information form.
4 Press an imaging mode key:
2D
M MODE
C COLOR
D DOPPLER

Preparing the system

Installing or removing the battery

WARNINGS
To install the battery
1 Disconnect the power supply from the ultrasound system.
2 Remove the system from the mini-dock (if present) and turn it upside down.
Getting Started
3
4
To avoid injury to the operator and to prevent damage to the ultrasound system,
inspect the battery for leaks prior to installing.
To avoid data loss and to conduct a safe system shutdown, always keep a
battery in the system. See
3 I/O connector
4 ECG connector
"System controls" on page 2-12.
"Battery safety" on page 9-9.
2-5
