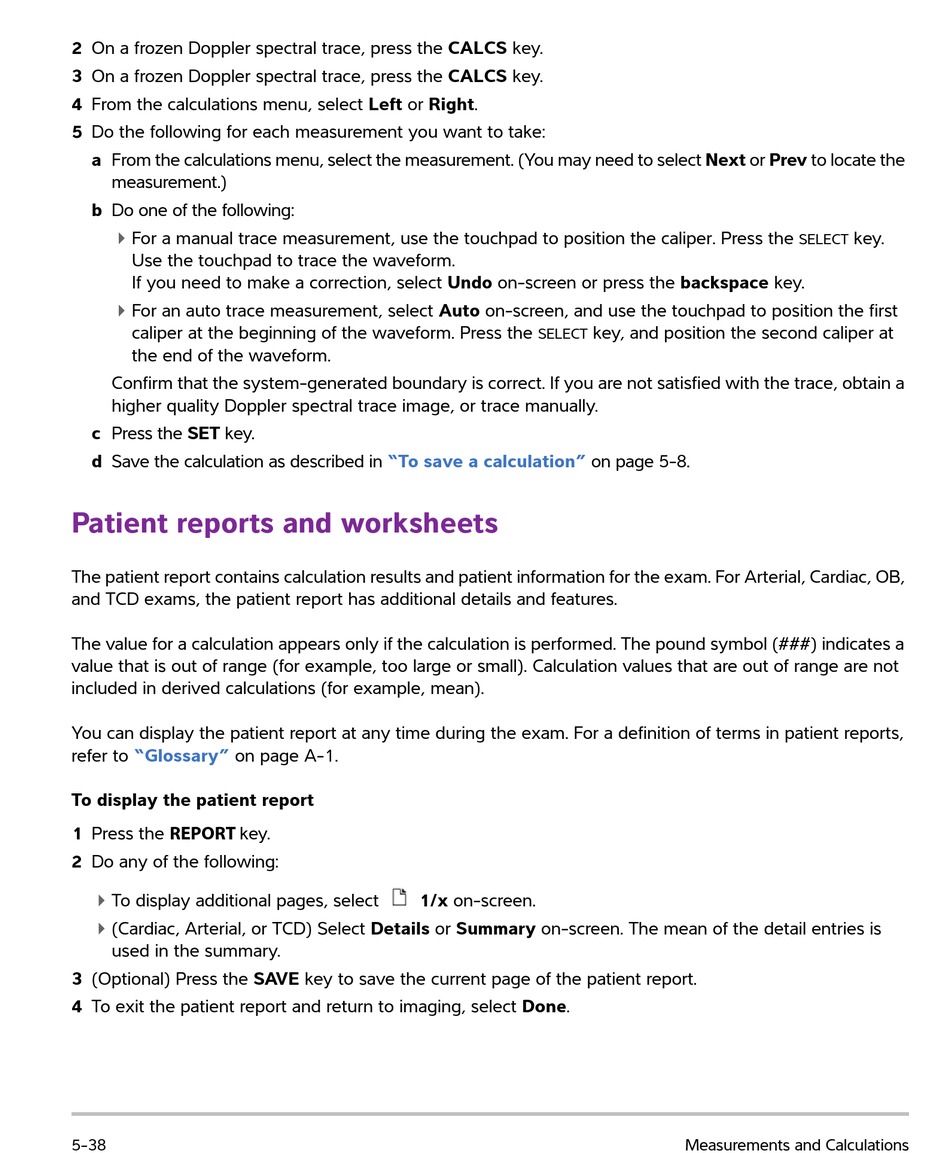

2 On a frozen Doppler spectral trace, press the CALCS key.
3 On a frozen Doppler spectral trace, press the CALCS key.
4 From the calculations menu, select Left or Right.
5 Do the following for each measurement you want to take:
a From the calculations menu, select the measurement. (You may need to select Next or Prev to locate the
measurement.)
b Do one of the following:
For a manual trace measurement, use the touchpad to position the caliper. Press the
Use the touchpad to trace the waveform.
If you need to make a correction, select Undo on-screen or press the backspace key.
For an auto trace measurement, select Auto on-screen, and use the touchpad to position the first
caliper at the beginning of the waveform. Press the
the end of the waveform.
Confirm that the system-generated boundary is correct. If you are not satisfied with the trace, obtain a
higher quality Doppler spectral trace image, or trace manually.
c Press the SET key.
d Save the calculation as described in

Patient reports and worksheets

The patient report contains calculation results and patient information for the exam. For Arterial, Cardiac, OB,
and TCD exams, the patient report has additional details and features.
The value for a calculation appears only if the calculation is performed. The pound symbol (###) indicates a
value that is out of range (for example, too large or small). Calculation values that are out of range are not
included in derived calculations (for example, mean).
You can display the patient report at any time during the exam. For a definition of terms in patient reports,
refer to "Glossary" on page A-1.
To display the patient report
1 Press the REPORT key.
2 Do any of the following:
To display additional pages, select
(Cardiac, Arterial, or TCD) Select Details or Summary on-screen. The mean of the detail entries is
used in the summary.
3 (Optional) Press the SAVE key to save the current page of the patient report.
4 To exit the patient report and return to imaging, select Done.
5-38
SELECT
"To save a calculation"
1/x on-screen.
key, and position the second caliper at
on page 5-8.
Measurements and Calculations
key.
SELECT
