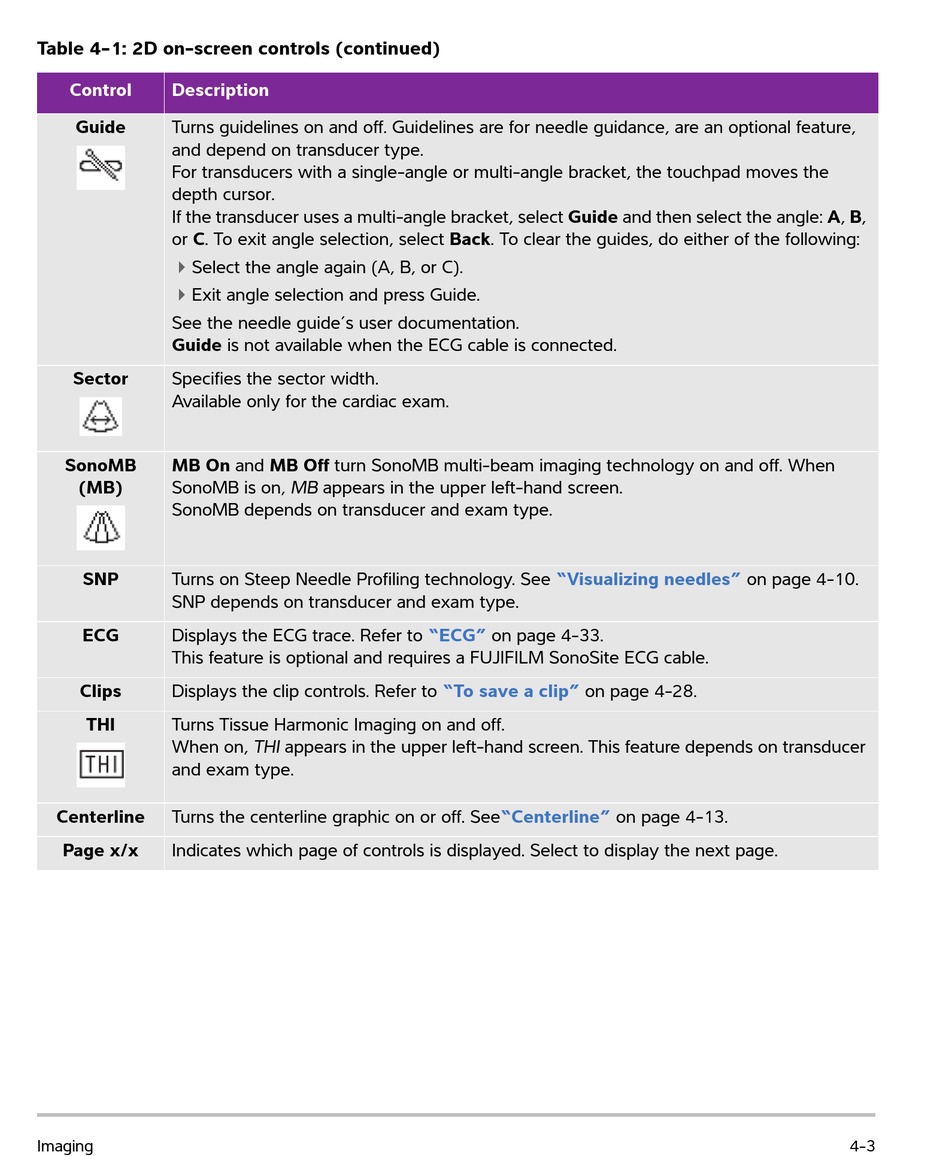

Table 4-1: 2D on-screen controls (continued)
Control Description
Guide Turns guidelines on and off. Guidelines are for needle guidance, are an optional feature,
and depend on transducer type.
For transducers with a single-angle or multi-angle bracket, the touchpad moves the
depth cursor.
If the transducer uses a multi-angle bracket, select Guide and then select the angle: A, B,
or C. To exit angle selection, select Back. To clear the guides, do either of the following:
Select the angle again (A, B, or C).
Exit angle selection and press Guide.
See the needle guide's user documentation.
Guide is not available when the ECG cable is connected.
Sector Specifies the sector width.
Available only for the cardiac exam.
SonoMB MB On and MB Off turn SonoMB multi-beam imaging technology on and off. When
(MB) SonoMB is on, MB appears in the upper left-hand screen.
SonoMB depends on transducer and exam type.
SNP Turns on Steep Needle Profiling technology. See
SNP depends on transducer and exam type.
ECG Displays the ECG trace. Refer to
This feature is optional and requires a FUJIFILM SonoSite ECG cable.
Clips Displays the clip controls. Refer to
THI Turns Tissue Harmonic Imaging on and off.
When on, THI appears in the upper left-hand screen. This feature depends on transducer
and exam type.
Centerline Turns the centerline graphic on or off.
Page x/x Indicates which page of controls is displayed. Select to display the next page.
Imaging
"Visualizing needles"
"ECG" on page 4-33.
"To save a clip" on page 4-28.
See"Centerline"
on page 4-10.
on page 4-13.
4-3
