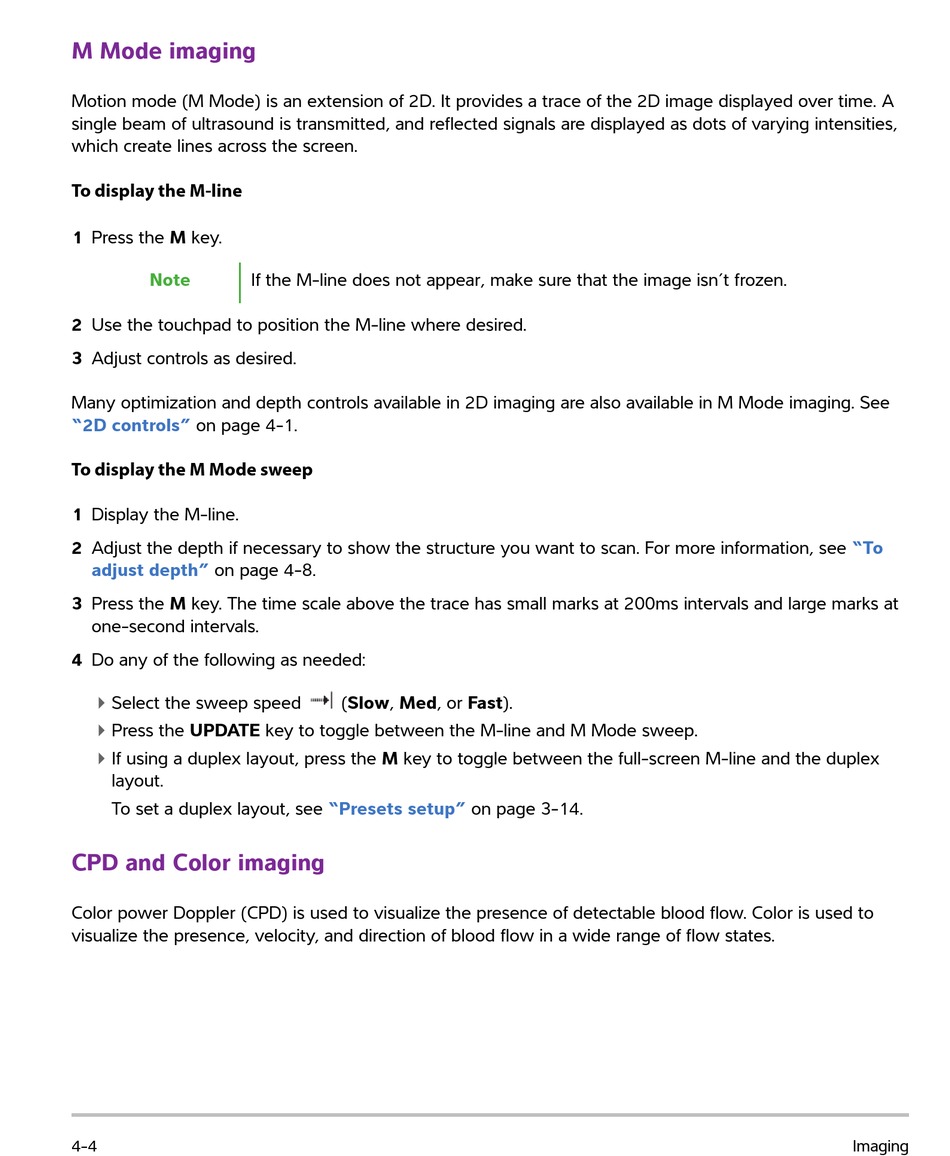

M Mode imaging

Motion mode (M Mode) is an extension of 2D. It provides a trace of the 2D image displayed over time. A
single beam of ultrasound is transmitted, and reflected signals are displayed as dots of varying intensities,
which create lines across the screen.
To display the M-line
1 Press the M key.
Note
2 Use the touchpad to position the M-line where desired.
3 Adjust controls as desired.
Many optimization and depth controls available in 2D imaging are also available in M Mode imaging. See
"2D controls" on page 4-1.
To display the M Mode sweep
1 Display the M-line.
2 Adjust the depth if necessary to show the structure you want to scan. For more information, see
adjust depth" on page 4-8.
3 Press the M key. The time scale above the trace has small marks at 200ms intervals and large marks at
one-second intervals.
4 Do any of the following as needed:
Select the sweep speed
Press the UPDATE key to toggle between the M-line and M Mode sweep.
If using a duplex layout, press the M key to toggle between the full-screen M-line and the duplex
layout.
To set a duplex layout, see

CPD and Color imaging

Color power Doppler (CPD) is used to visualize the presence of detectable blood flow. Color is used to
visualize the presence, velocity, and direction of blood flow in a wide range of flow states.
4-4
If the M-line does not appear, make sure that the image isn't frozen.
(Slow, Med, or Fast).
"Presets setup" on page 3-14.
"To
Imaging
