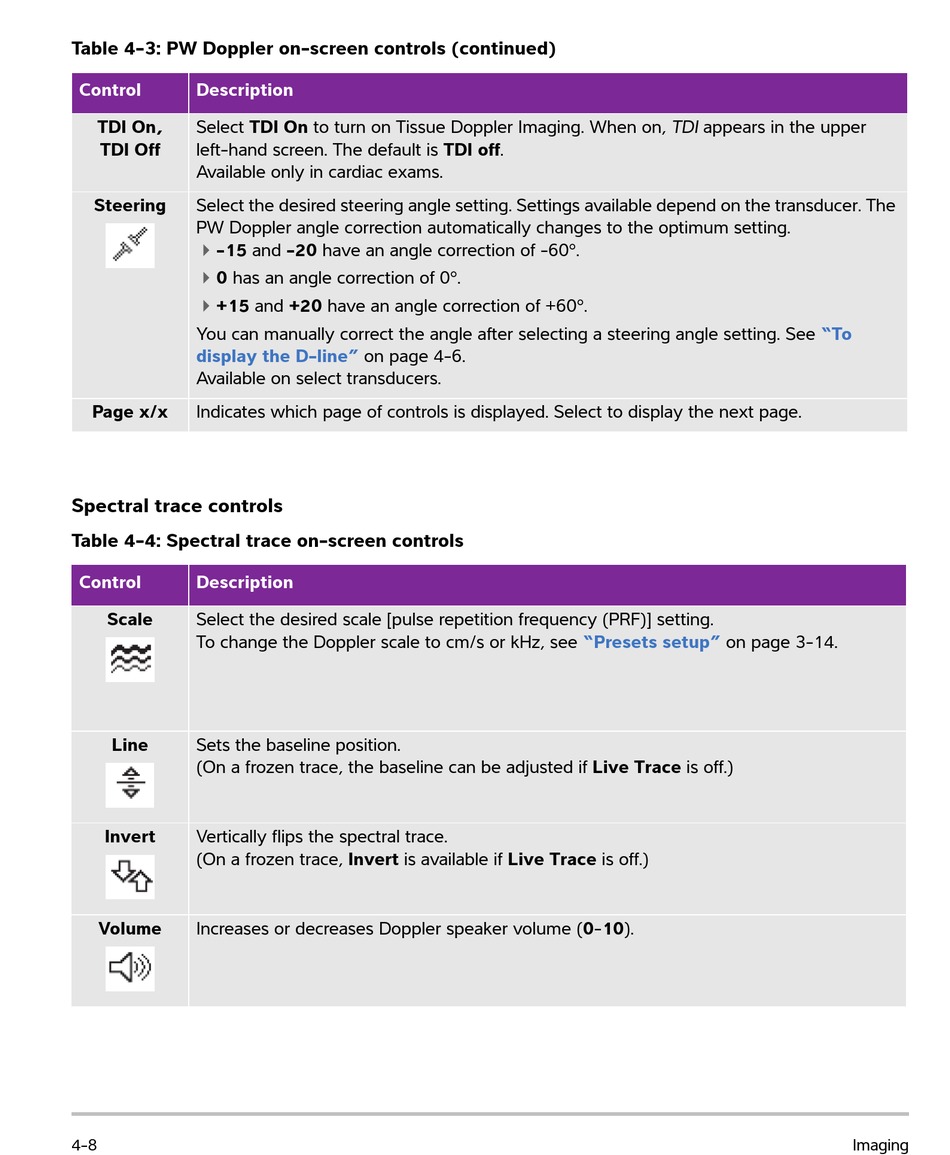

Table 4-3: PW Doppler on-screen controls (continued)
Control Description
TDI On, Select TDI On to turn on Tissue Doppler Imaging. When on, TDI appears in the upper
TDI Off left-hand screen. The default is TDI off.
Available only in cardiac exams.
Steering Select the desired steering angle setting. Settings available depend on the transducer. The
PW Doppler angle correction automatically changes to the optimum setting.
-15 and -20 have an angle correction of -60°.
0 has an angle correction of 0°.
+15 and +20 have an angle correction of +60°.
You can manually correct the angle after selecting a steering angle setting. See
display the D-line"
Available on select transducers.
Page x/x Indicates which page of controls is displayed. Select to display the next page.
Spectral trace controls
Table 4-4: Spectral trace on-screen controls
Control Description
Scale Select the desired scale [pulse repetition frequency (PRF)] setting.
To change the Doppler scale to cm/s or kHz, see
Line Sets the baseline position.
(On a frozen trace, the baseline can be adjusted if Live Trace is off.)
Invert Vertically flips the spectral trace.
(On a frozen trace, Invert is available if Live Trace is off.)
Volume Increases or decreases Doppler speaker volume (0-10).
4-8
on page 4-6.
"Presets setup" on page 3-14.
"To
Imaging
