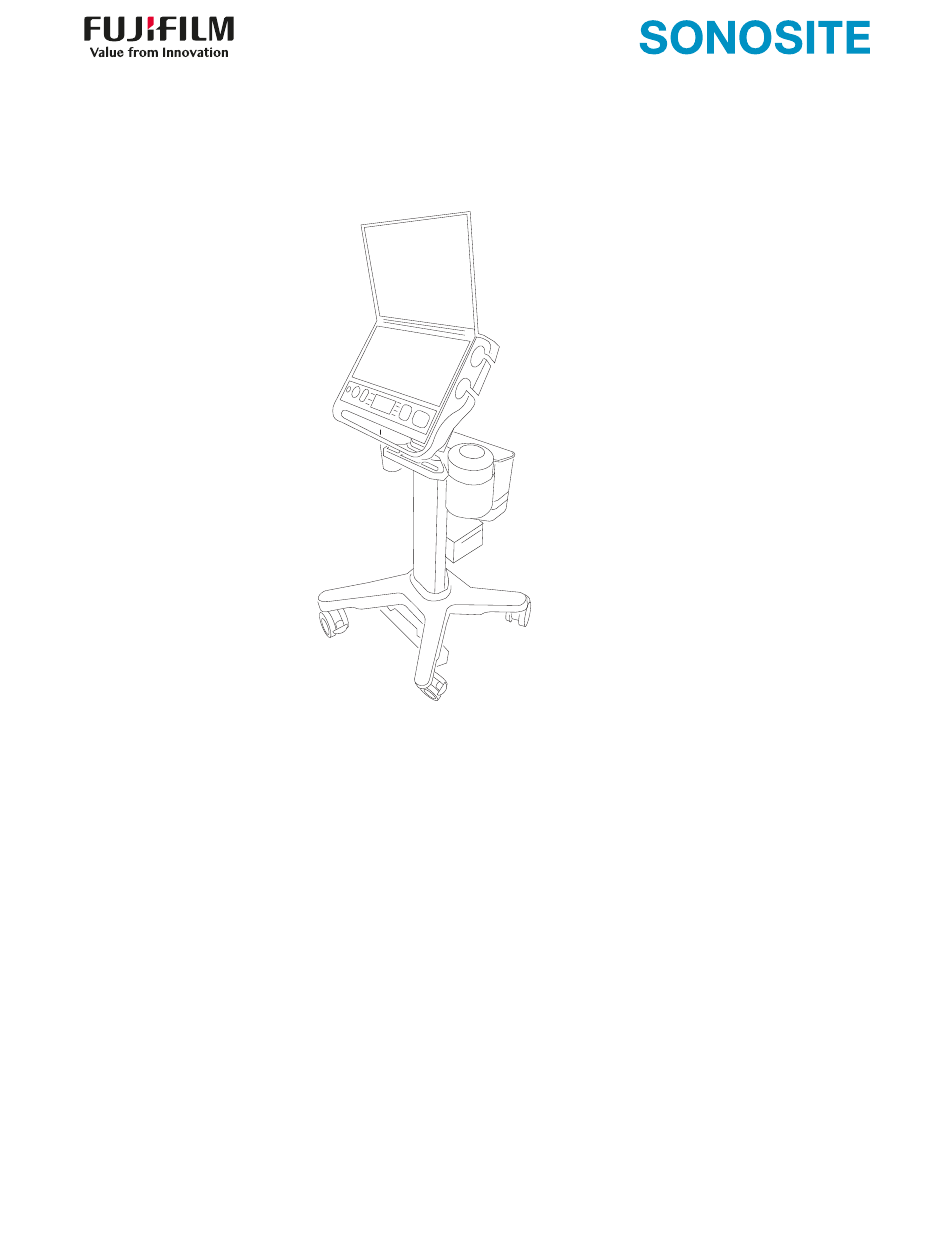

Sonosite PX Stand and
Accessory Assembly Instructions
Inside the boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Main box .......................................................................................................................................................................................................... 2
Platform box................................................................................................................................................................................................... 2
System box .................................................................................................................................................................................................... 2
Box A................................................................................................................................................................................................................. 2
Box B ................................................................................................................................................................................................................. 3
Printer box ...................................................................................................................................................................................................... 3
Unpack the boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Attach the storage tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Secure the column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Remove packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Remove packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Install covers over power receptacles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Attach the storage container, drawer, and cord wrap hooks . . . . . . . . . . 7
Attach the gel and wipe holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Attach the cable management system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Raise the column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Install the platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connect the stand to power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1
Advertisement
Table of Contents
Related Manuals for FujiFilm Sonosite PX
Summary of Contents for FujiFilm Sonosite PX
-
Page 1: Table Of Contents
Sonosite PX Stand and Accessory Assembly Instructions Inside the boxes ..........2 Main box .......................................... -
Page 2: Inside The Boxes
Inside the boxes Main box Platform box Column and base Platform System box Power cord Box A Magnetic bit driver 3 mm, 4 mm, and 5 mm #1 Phillips bit hex bits (1 each) M4 x 20 mm hex- M6 x18 mm hex- M3 x 8 mm Phillips- head screws (2) head screws (4) -
Page 3: Box B
Box B Gel bottle holder Cable stay mount Wipe holder Lockable storage drawer Bottom cover Cable management system cover Cable management system mounting bracket Power cord wrap hook Outlet cover Rear base cover Printer box Mounting bracket and box Printer and user documentation M6 x18 mm hex-head screws (4) Prying tool... -
Page 4: Unpack The Boxes
Unpack the boxes Remove the upper part of the box. Unpack the inner boxes and remove the cardboard packing material. Attach the storage tray Insert the 5 mm hex bit into the bit driver and use four hex-head 18 mm screws to attach the tray to the back of the stand column. -
Page 5: Secure The Column
Secure the column Raise the column upright. Use the bit driver with the 5 mm bit to tighten the four screws on the base of the column. 5 mm Remove packaging Remove the packing foam from on and around the Cut the tape holding the front flap of the box up and stand. -
Page 6: Remove Packaging
Remove packaging Roll the stand out of the packing box. Lock the wheels closest to the edge of the box. Install covers over power receptacles Fit the rear base cover around the stand column If you are not installing a printer, use the outlet cover above the power plugs, then press the cover straight to block the printer power outlet. -
Page 7: Attach The Storage Container, Drawer, And Cord Wrap Hooks
Attach the storage container, drawer, and cord wrap hooks Slide the storage container down over the tongue of Slide the drawer into the slots on the underside of the storage tray until it is resting on the tray. the tray. Slip the hook over the edge of the cord wrap on the front of the storage container. -
Page 8: Attach The Cable Management System
Attach the cable management system Attach the cable stay mount to the column with two Snap the cable management bracket into position on screws. top of the battery pack. 3 mm M4 x 20 mm Attach the cable management bracket to the column Slide the cable management cover down over the using the bit driver with the Phillips bit and the two top of the cable management bracket until is snaps... -
Page 9: Install The Platform
Install the platform Insert the platform pedestal into the inner stand Use the bit driver with the 4 mm bit to tighten the column four screws on the platform. 4 mm Connect the USB cable in the inner column to the USB port inside the platform. Slide the power cable grommet into the column Attach the column cover to the stand by tightening cover. -
Page 10: Connect The Stand To Power
Connect the column power cable to the platform by pushing it into place and screwing it into the connector. Tug gently to make sure it is secure. Connect the stand to power Connect AC power cord from the system box to the Connect the AC power cord to a hospital-grade AC base of the stand. -
Page 11: Install The Printer
Install the printer Unplug the stand from the wall. Slide the printer into the mounting box. Use the bit driver with the Phillips bit to tighten the Remove the cover on the back of the stand column. four screws on the bottom of the mounting box. Use the bit driver with the 5 mm bit and the hex- Slide the lip of the mounting box down onto the head 12 mm screws to attach the printer mounting... - Page 12 Tighten the screws located under the printer. Connect the AC cable to the printer, run the cable through the cable holder, and plug the cable into the stand. 4 mm M6 x 12 mm Connect the USB cable to the printer, and run the Lift off the USB port cover.
- Page 13 Attach the printer cover. Connect the AC power cord to a hospital-grade AC mains outlet. Push the power button to turn the printer on. WARNING To avoid the risk of a shock hazard, do not plug the power cord into a multiple portable socket outlet (MPSO) or into an extension cord.
- Page 14 SONOSITE and the SONOSITE logo are trademarks and registered trademarks of FUJIFILM Sonosite, Inc., in various jurisdictions. FUJIFILM is a registered trademark of FUJIFILM Corporation. Value from Innovation is a trademark of FUJIFILM Holdings America Corporation. All other trademarks are the property of their respective owners.
