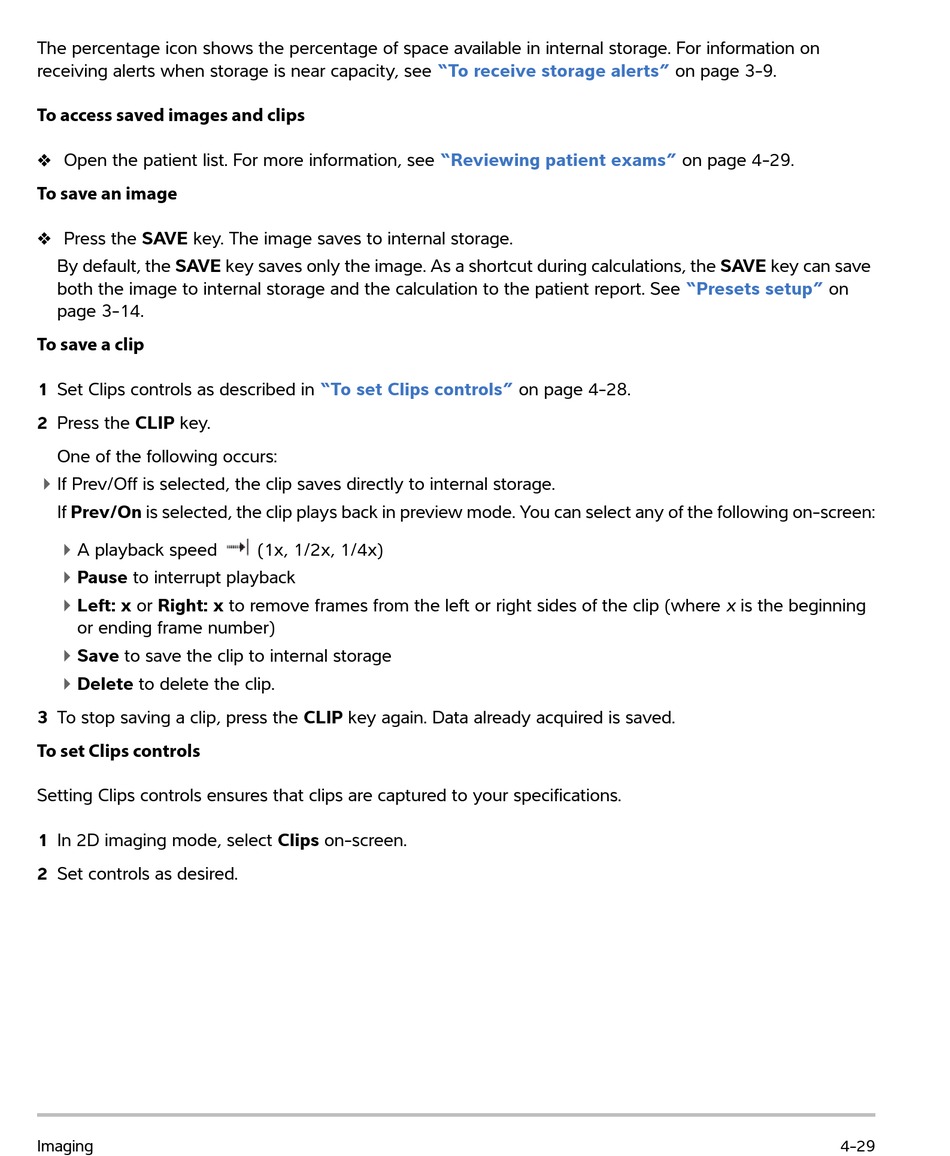

FujiFilm SonoSite Edge II User Manual page 77

The percentage icon shows the percentage of space available in internal storage. For information on
receiving alerts when storage is near capacity, see
To access saved images and clips

Open the patient list. For more information, see
To save an image

Press the SAVE key. The image saves to internal storage.
By default, the SAVE key saves only the image. As a shortcut during calculations, the SAVE key can save
both the image to internal storage and the calculation to the patient report. See
page 3-14.
To save a clip
1 Set Clips controls as described in
2 Press the CLIP key.
One of the following occurs:
If Prev/Off is selected, the clip saves directly to internal storage.
If Prev/On is selected, the clip plays back in preview mode. You can select any of the following on-screen:
A playback speed
Pause to interrupt playback
Left: x or Right: x to remove frames from the left or right sides of the clip (where x is the beginning
or ending frame number)
Save to save the clip to internal storage
Delete to delete the clip.
3 To stop saving a clip, press the CLIP key again. Data already acquired is saved.
To set Clips controls
Setting Clips controls ensures that clips are captured to your specifications.
1 In 2D imaging mode, select Clips on-screen.
2 Set controls as desired.
Imaging
"To set Clips controls"
(1x, 1/2x, 1/4x)
"To receive storage alerts"
"Reviewing patient exams"
on page 4-28.
on page 3-9.
on page 4-29.
"Presets setup" on
4-29
