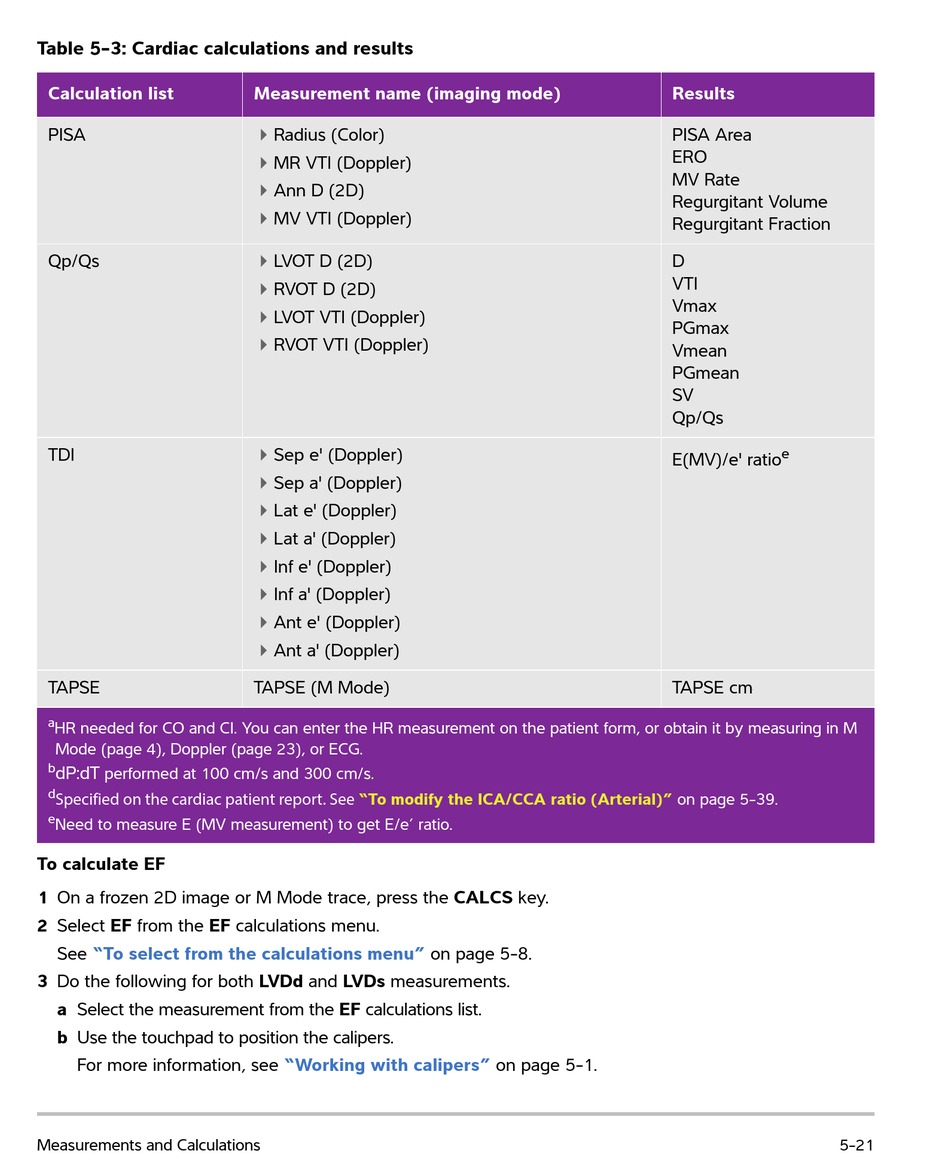

Table 5-3: Cardiac calculations and results
Calculation list
PISA
Qp/Qs
TDI
TAPSE
a
HR needed for CO and CI. You can enter the HR measurement on the patient form, or obtain it by measuring in M
Mode (page 4), Doppler (page 23), or ECG.
b
dP:dT
performed at 100 cm/s and 300 cm/s.
d
Specified on the cardiac patient report. See
e
Need to measure E (MV measurement) to get E/e' ratio.
To calculate EF
1 On a frozen 2D image or M Mode trace, press the CALCS key.
2 Select EF from the EF calculations menu.
See "To select from the calculations menu"
3 Do the following for both LVDd and LVDs measurements.
a Select the measurement from the EF calculations list.
b Use the touchpad to position the calipers.
For more information, see
Measurements and Calculations
Measurement name (imaging mode)
Radius (Color)
MR VTI (Doppler)
Ann D (2D)
MV VTI (Doppler)
LVOT D (2D)
RVOT D (2D)
LVOT VTI (Doppler)
RVOT VTI (Doppler)
Sep e' (Doppler)
Sep a' (Doppler)
Lat e' (Doppler)
Lat a' (Doppler)
Inf e' (Doppler)
Inf a' (Doppler)
Ant e' (Doppler)
Ant a' (Doppler)
TAPSE (M Mode)
"To modify the ICA/CCA ratio (Arterial)"
on page 5-8.
"Working with calipers"
Results
PISA Area
ERO
MV Rate
Regurgitant Volume
Regurgitant Fraction
D
VTI
Vmax
PGmax
Vmean
PGmean
SV
Qp/Qs
E(MV)/e' ratio
TAPSE cm
on page 5-1.
e
on page 5-39.
