Table 4-5: Transducers and exam types available with SNP (continued)
Transducer
HFL50x
HSL25x
L25x standard/armored
L38xi standard/armored
Outlined area
enhanced by SNP
Needle shaft

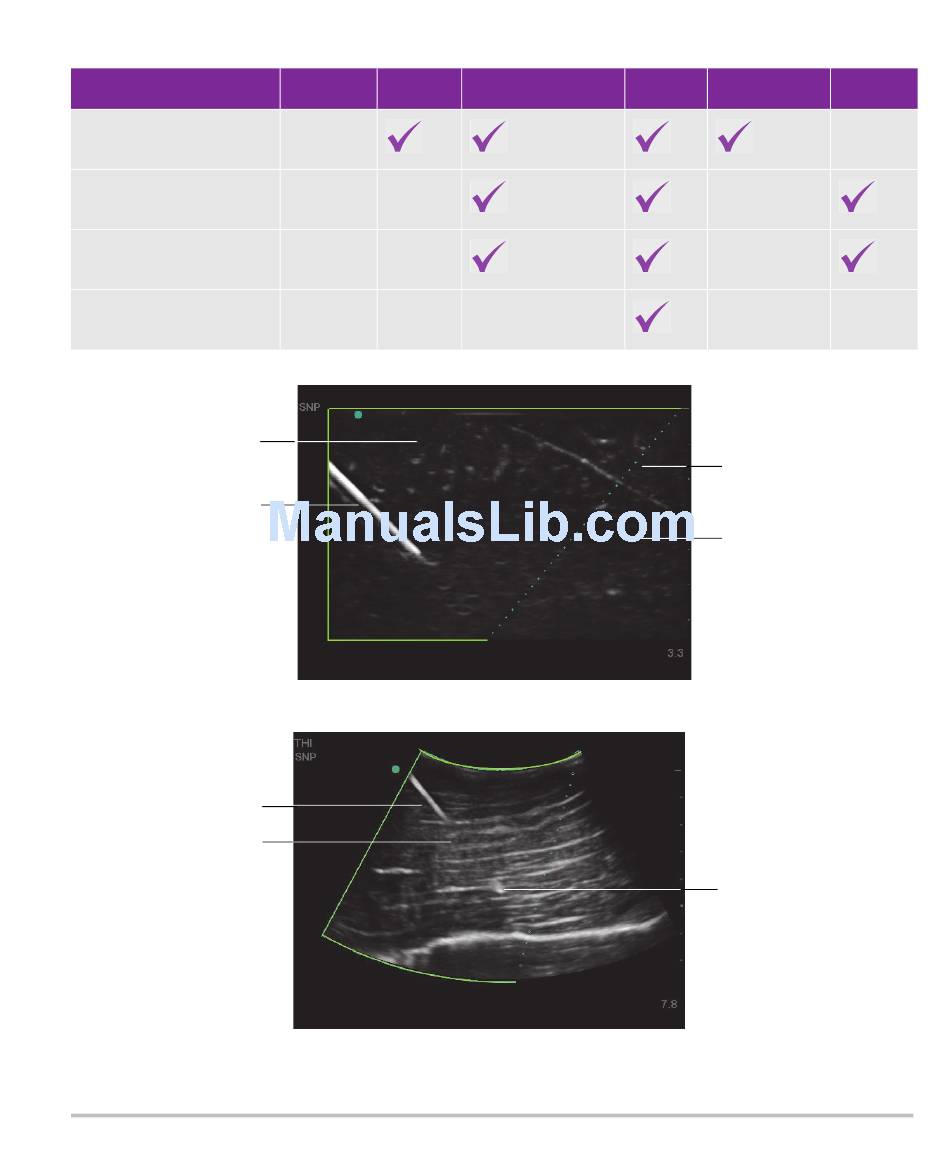

Figure 4-7 Image with SNP on (linear transducer)
Upper needle shaft
Segment of needle
shaft not shown
(depends on
specific image)
Figure 4-8 With a curved array transducer, only segments of the needle shaft may show
4-12
Arterial Breast Musculoskeletal Nerve Small Parts Venous
Dotted line
Unenhanced area
Needle tip
Imaging
