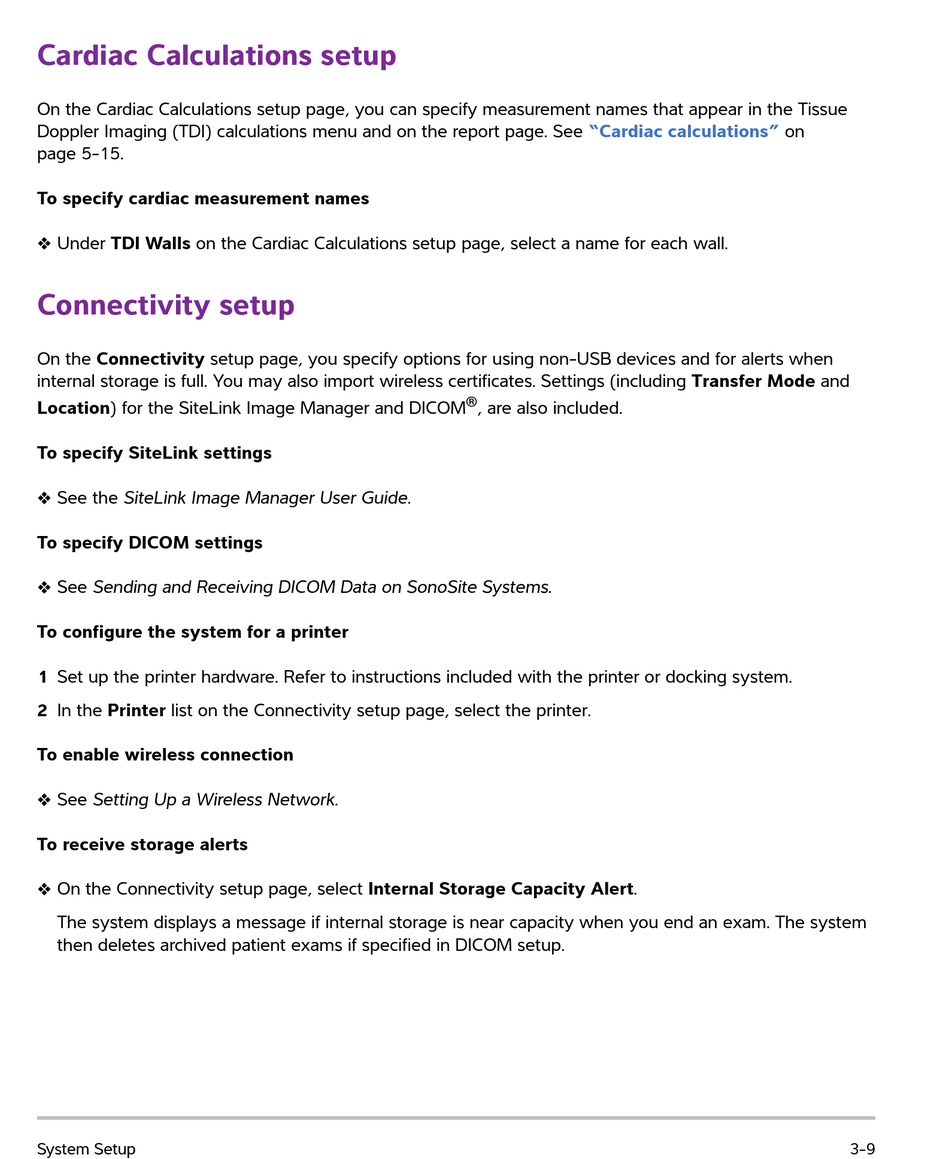

Cardiac Calculations setup

On the Cardiac Calculations setup page, you can specify measurement names that appear in the Tissue
Doppler Imaging (TDI) calculations menu and on the report page. See
page 5-15.
To specify cardiac measurement names

Under TDI Walls on the Cardiac Calculations setup page, select a name for each wall.

Connectivity setup

On the Connectivity setup page, you specify options for using non-USB devices and for alerts when
internal storage is full. You may also import wireless certificates. Settings (including Transfer Mode and
Location) for the SiteLink Image Manager and DICOM
To specify SiteLink settings

See the SiteLink Image Manager User Guide.
To specify DICOM settings

See Sending and Receiving DICOM Data on SonoSite Systems.
To configure the system for a printer
1 Set up the printer hardware. Refer to instructions included with the printer or docking system.
2 In the Printer list on the Connectivity setup page, select the printer.
To enable wireless connection

See Setting Up a Wireless Network.
To receive storage alerts

On the Connectivity setup page, select Internal Storage Capacity Alert.
The system displays a message if internal storage is near capacity when you end an exam. The system
then deletes archived patient exams if specified in DICOM setup.
System Setup
"Cardiac calculations"
®
, are also included.
on
3-9
