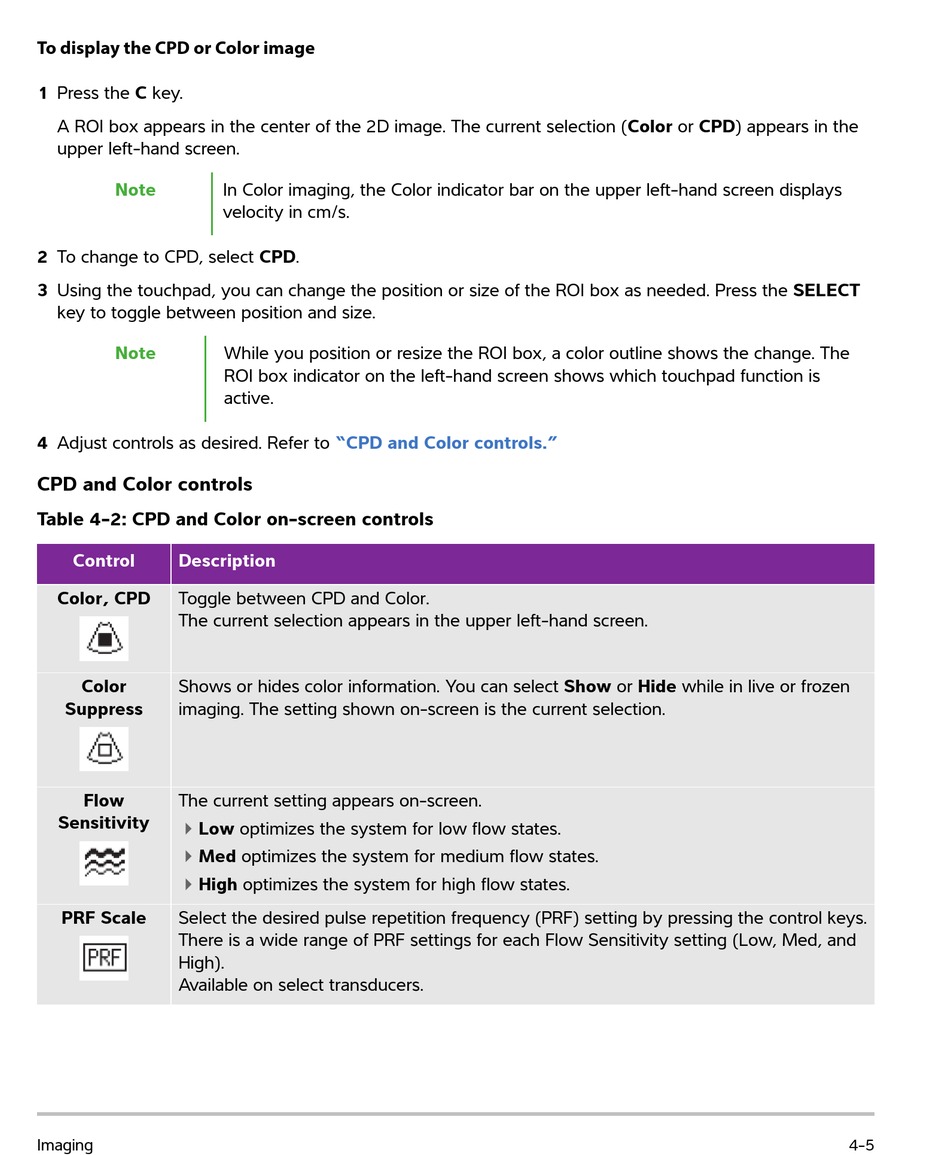

To display the CPD or Color image
1 Press the C key.
A ROI box appears in the center of the 2D image. The current selection (Color or CPD) appears in the
upper left-hand screen.
Note
2 To change to CPD, select CPD.
3 Using the touchpad, you can change the position or size of the ROI box as needed. Press the SELECT
key to toggle between position and size.
Note
4 Adjust controls as desired. Refer to
CPD and Color controls
Table 4-2: CPD and Color on-screen controls
Control Description
Color, CPD Toggle between CPD and Color.
The current selection appears in the upper left-hand screen.
Color Shows or hides color information. You can select Show or Hide while in live or frozen
Suppress imaging. The setting shown on-screen is the current selection.
Flow The current setting appears on-screen.
Sensitivity
Low optimizes the system for low flow states.
Med optimizes the system for medium flow states.
High optimizes the system for high flow states.
PRF Scale Select the desired pulse repetition frequency (PRF) setting by pressing the control keys.
There is a wide range of PRF settings for each Flow Sensitivity setting (Low, Med, and
High).
Available on select transducers.
Imaging
In Color imaging, the Color indicator bar on the upper left-hand screen displays
velocity in cm/s.
While you position or resize the ROI box, a color outline shows the change. The
ROI box indicator on the left-hand screen shows which touchpad function is
active.
"CPD and Color controls."
4-5
