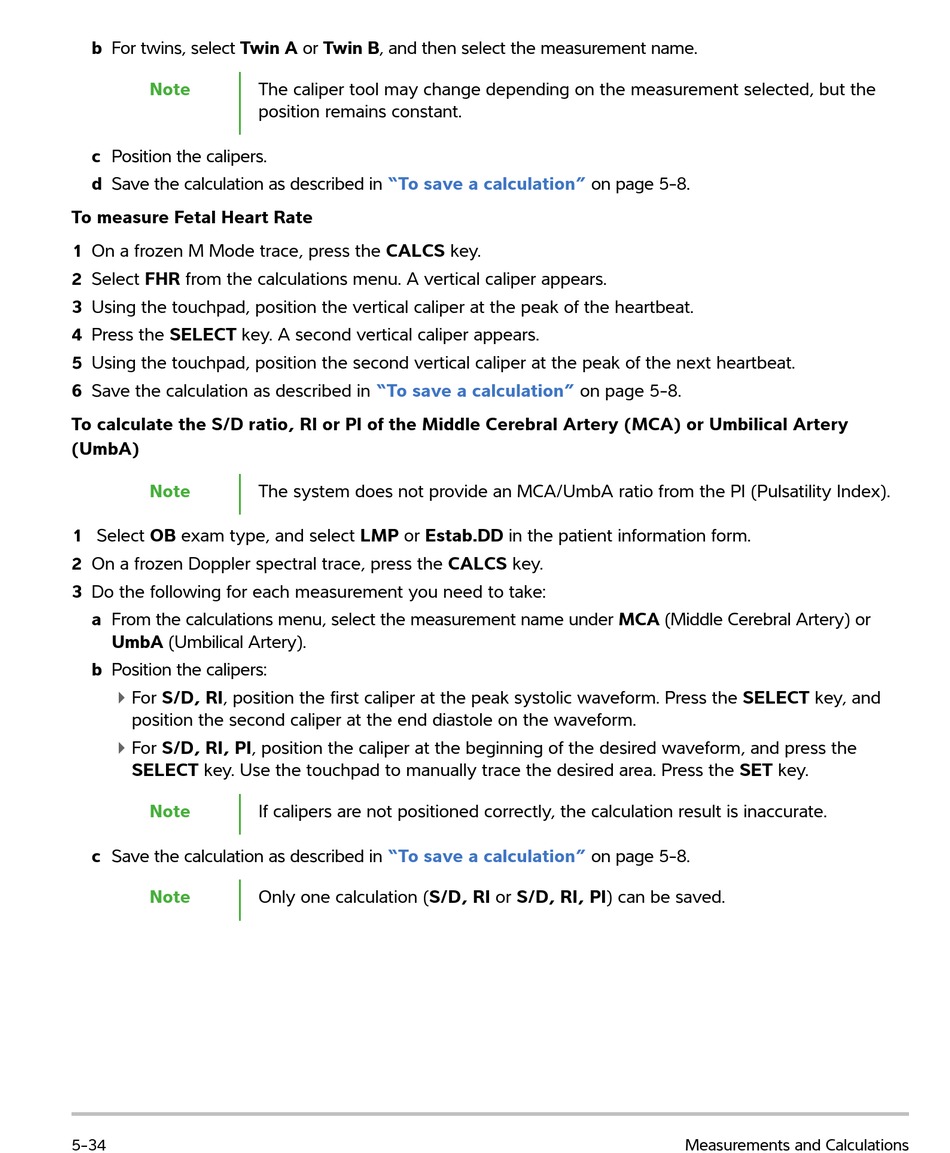

b For twins, select Twin A or Twin B, and then select the measurement name.
Note
c Position the calipers.
d Save the calculation as described in
To measure Fetal Heart Rate
1 On a frozen M Mode trace, press the CALCS key.
2 Select FHR from the calculations menu. A vertical caliper appears.
3 Using the touchpad, position the vertical caliper at the peak of the heartbeat.
4 Press the SELECT key. A second vertical caliper appears.
5 Using the touchpad, position the second vertical caliper at the peak of the next heartbeat.
6 Save the calculation as described in
To calculate the S/D ratio, RI or PI of the Middle Cerebral Artery (MCA) or Umbilical Artery
(UmbA)
Note
1 Select OB exam type, and select LMP or Estab.DD in the patient information form.
2 On a frozen Doppler spectral trace, press the CALCS key.
3 Do the following for each measurement you need to take:
a From the calculations menu, select the measurement name under MCA (Middle Cerebral Artery) or
UmbA (Umbilical Artery).
b Position the calipers:
For S/D, RI, position the first caliper at the peak systolic waveform. Press the SELECT key, and
position the second caliper at the end diastole on the waveform.
For S/D, RI, PI, position the caliper at the beginning of the desired waveform, and press the
SELECT key. Use the touchpad to manually trace the desired area. Press the SET key.
Note
c Save the calculation as described in
Note
5-34
The caliper tool may change depending on the measurement selected, but the
position remains constant.
"To save a calculation"
"To save a calculation"
The system does not provide an MCA/UmbA ratio from the PI (Pulsatility Index).
If calipers are not positioned correctly, the calculation result is inaccurate.
"To save a calculation"
Only one calculation (S/D, RI or S/D, RI, PI) can be saved.
on page 5-8.
on page 5-8.
on page 5-8.
