Nominal Settings - Deif Multi-line 2 Designers Reference Handbook

AGC
Application settings push-button
Enter the desired telephone number using the application settings tool.

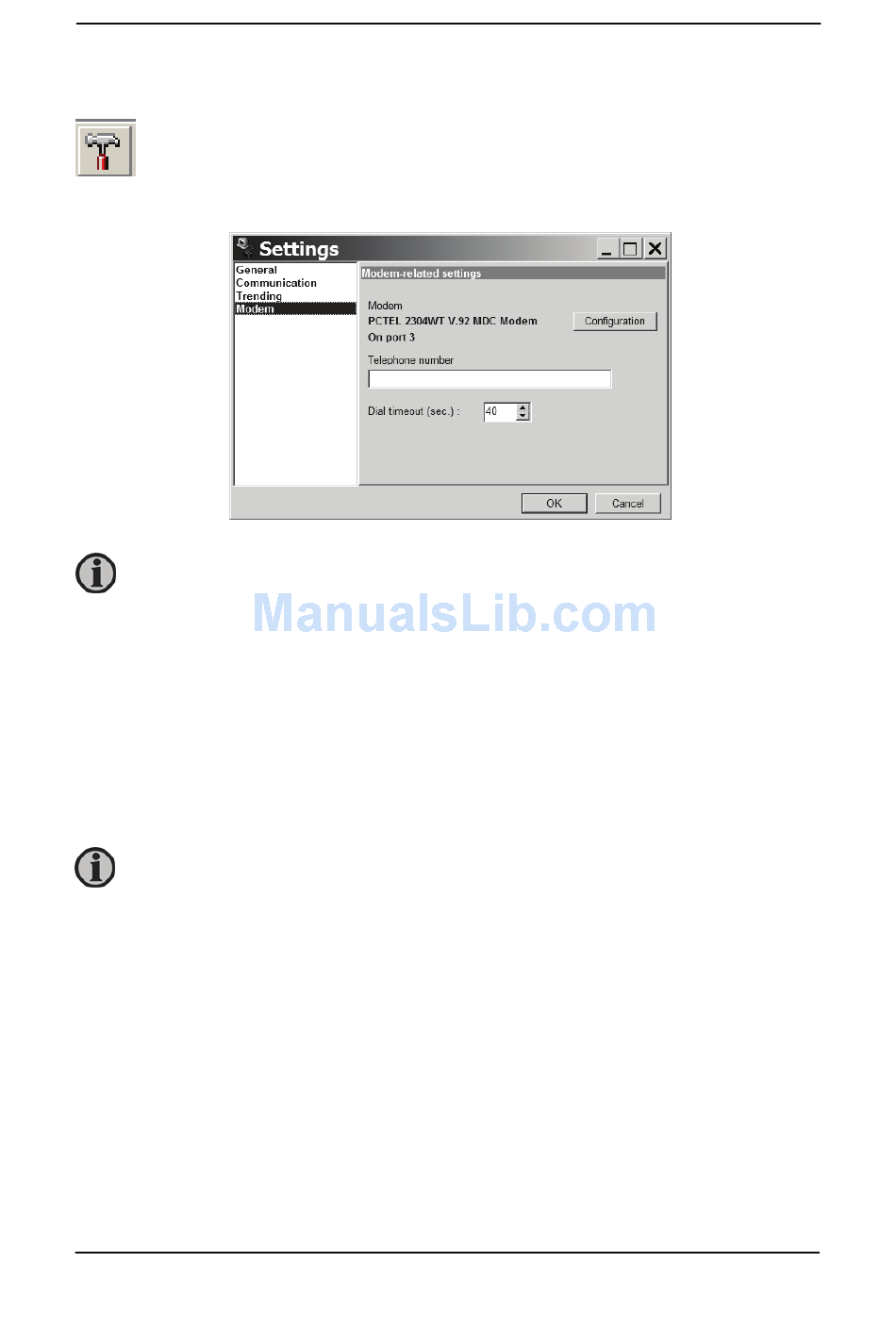

Settings dialog box:
The telephone number to be entered in this dialog box is the number of the
modem connected to the unit.
Safety
If communication fails, the unit will operate according to the received data. If e.g. only half of the
parameter file has been downloaded when the communication is interrupted, the unit will use
this actual data.
The nominal settings can be changed to match different voltages and frequencies. The AGC has
two sets of nominal values, and they are adjusted in menus 6010 (Nominal settings 1) and 6020

(Nominal settings 2).

The possibility to switch between the two sets of nominal setpoints is typically
used on rental gen-sets, where switching between 50 and 60Hz is required.
Activation
The switching between the nominal setpoints can be done in three ways, namely digital input,
AOP or menu 6025.
Digital input
M-logic is used when a digital input is needed for switching between the two sets of nominal
settings. Select the required input among the input events, and select the nominal settings in the
outputs.
DEIF A/S
Nominal settings
Designer's Reference Handbook
