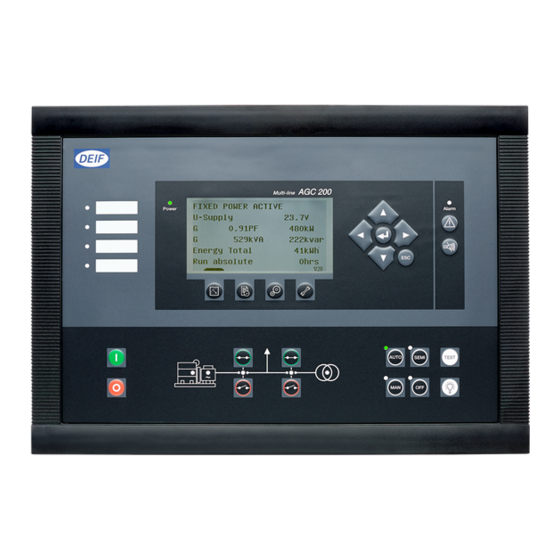

Deif AGC 200 Operator's Manual

Advanced genset controller display readings,push-button functions, alarm handling,log list
Hide thumbs Also See for AGC 200:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
OPERATOR'S MANUAL
Advanced Genset Controller, AGC 200
● Display readings
● Push-button functions
● Alarm handling
● Log list
DEIF A/S · Frisenborgvej 33 · DK-7800 Skive · Tel.: +45 9614 9614 · Fax: +45 9614 9615 · info@deif.com · www.deif.com
Document no.: 4189340607F
SW version: 4.21.x or later

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGC 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deif AGC 200

Summary of Contents for Deif AGC 200

  • Page 1 ● Log list DEIF A/S · Frisenborgvej 33 · DK-7800 Skive · Tel.: +45 9614 9614 · Fax: +45 9614 9615 · info@deif.com · www.deif.com isenborgvej 33 · DK-7800 Skive · Tel.: +45 9614 9614 · Fax: +45 9614 9615 · info@deif.com · www.deif.com Document no.: 4189340607F...
  • Page 2 AGC 200 operators manual 4189340607 1. General information 1.1. Warnings, legal information and safety....................3 1.1.1. Warnings and notes ........................3 1.1.2. Legal information and disclaimer ....................3 1.1.3. Safety issues ..........................3 1.1.4. Electrostatic discharge awareness ....................3 1.1.5. Factory settings ..........................4 1.2.

  • Page 3: Agc 200 Operators Manual

    1.1.2 Legal information and disclaimer DEIF takes no responsibility for installation or operation of the generator set. If there is any doubt about how to install or operate the engine/generator controlled by the Multi-line 2 unit, the company responsible for the installation or the operation of the set must be contacted.

  • Page 4: Factory Settings

    AGC 200 operators manual 4189340607 General information 1.1.5 Factory settings The Multi-line 2 unit is delivered from factory with certain factory settings. These are based on average values and are not necessarily the correct settings for matching the engine/generator set in question. Precautions must be taken to check the settings before running the engine/generator set.

  • Page 5: Front Views

    AGC 200 operators manual 4189340607 AGC 200 variants 2. AGC 200 variants 2.1 Front views 2.1.1 Island, AGC 212/222/232/242 DEIF A/S Page 5 of 24...

  • Page 6: Automatic Mains Failure, Agc 213/233/243

    AGC 200 operators manual 4189340607 AGC 200 variants 2.1.2 Automatic mains failure, AGC 213/233/243 DEIF A/S Page 6 of 24...

  • Page 7: Mains, Agc 245

    AGC 200 operators manual 4189340607 AGC 200 variants 2.1.3 Mains, AGC 245 DEIF A/S Page 7 of 24...

  • Page 8: Mains And Tie Breaker, Agc 246

    AGC 200 operators manual 4189340607 AGC 200 variants 2.1.4 Mains and tie breaker, AGC 246 DEIF A/S Page 8 of 24...

  • Page 9: Bus Tie Breaker, Agc 244

    AGC 200 operators manual 4189340607 AGC 200 variants 2.1.5 Bus tie breaker, AGC 244 DEIF A/S Page 9 of 24...

  • Page 10: Push-Button Functions

    AGC 200 operators manual 4189340607 Display, push-buttons and LEDs 3. Display, push-buttons and LEDs 3.1 Push-button functions The display unit holds a number of push-button functions which are described below: 1. View of measured values 2. Log lists. The list holds 150 events. These events are deleted when the AGC is switched off 3.

  • Page 11: Led Functions

    AGC 200 operators manual 4189340607 Display, push-buttons and LEDs 3.2 LED functions The display unit holds 10 LED functions. The colour is green or red or a combination in different situations. The display LEDs are indicating as follows: 1. User-configurable LED 2.

  • Page 12: About Display And Menu Structures

    AGC 200 operators manual 4189340607 Display and menu structure 4. Display and menu structure 4.1 About display and menu structures 4.1.1 LCD display The display is a backlit LCD graphical display. The display light intensity, LED indication and contrast can be adjusted from menu 9150.
  • Page 13 AGC 200 operators manual 4189340607 Display and menu structure MAINS FAILURE U-supply 24.1 V 0.001 PF 0 kW 0 kVA 0 kVAr Energy Total 0 kWh Run Absolute 0 hrs 1/20 In the view menus, various measured values are on display. The views contain up to 20 different windows which can be selected using the push-buttons located on the right hand side of the display.

  • Page 14: Status Line Texts

    AGC 200 operators manual 4189340607 Display and menu structure 4.1.5 Status line texts Status text Condition Comment BLOCK Block mode is activated SIMPLE TEST Test mode is activated LOAD TEST FULL TEST SIMPLE TEST ###.#min Test mode is activated and test timer counting down LOAD TEST ###.#min...
  • Page 15 AGC 200 operators manual 4189340607 Display and menu structure Status text Condition Comment SHUTDOWN OVERRIDE The configurable input is active ACCESS LOCK The configurable input is activated, and the operator tries to activate one of the blocked keys GB TRIP EXTERNALLY...
  • Page 16 Quick setup of the application failed MOUNT CAN CONNEC- Connect the power management CAN line ADAPT IN PROGRESS The AGC 200 is receiving the application, to which it has just been connected SETUP IN PROGRESS The new AGC is being added to the existing applica-...

  • Page 17: Texts Only Related To Power Management (Agc 24X Only)

    AGC 200 operators manual 4189340607 Display and menu structure 4.1.6 Texts only related to power management (AGC 24x only) Status text Condition Comment DG unit BLACKOUT ENABLE This info is shown if a CAN failure is present in a pow- er management application.
  • Page 18 AGC 200 operators manual 4189340607 Display and menu structure Status text Condition Comment RECEIVING APPL. # AGC 200 receiving an application. BROADCAST COMPLE- Successful broadcast of an application. RECEIVE COMPLETED Application received successfully. BROADCAST ABORTED Broadcast terminated. RECEIVE ERROR Application is not received correctly.

  • Page 19: Available Display Views

    AGC 200 operators manual 4189340607 Display and menu structure 4.1.7 Available display views View line configuration For generator For bus/mains G f-L1 frequency L1 (Hz) M f-L1 frequency L1 (Hz) G f-L2 frequency L2 (Hz) M f-L2 frequency L2 (Hz)
  • Page 20 AGC 200 operators manual 4189340607 Display and menu structure View line configuration G I-L1 (current L1) M I-L1 (current L1) G I-L2 (current L2) M I-L2 (current L2) G I-L3 (current L3) M I-L3 (current L3) Run abs. (absolute run time) Run rel.

  • Page 21: Mode Overview

    AGC 200 operators manual 4189340607 Display and menu structure View line configuration External analogue readings View menu example MAINS FAILURE MAINS FAILURE MAINS FAILURE U-supply 24.1 V Event log Setup menu Press Press 0.001 PF 0 kW Alarm log 1000 Protection...
  • Page 22 AGC 200 operators manual 4189340607 Display and menu structure When the OFF mode is selected, the unit is not able to initiate any sequences, e.g. the start sequence. OFF mode must be selected, when maintenance work is carried out on the genset.

  • Page 23: Alarm Handling

    AGC 200 operators manual 4189340607 Alarm handling and log list 5. Alarm handling and log list 5.1 Alarm handling When an alarm occurs, the unit will automatically go to the alarm list in the display. If this has been disabled by setting "Alarm jump"...
  • Page 24 AGC 200 operators manual 4189340607 Alarm handling and log list To enter the log list: 1. Press 2. Select the needed list by using the push-buttons (move the highlight of the list) and press the push-button. DEIF A/S Page 24 of 24...
