Idle speed, no stopping
In this example both timers are deactivated.
If the gen-set is to be prevented from stopping, then the digital input 'temp control' must be left
ON at all times. In that case the characteristic looks like this:

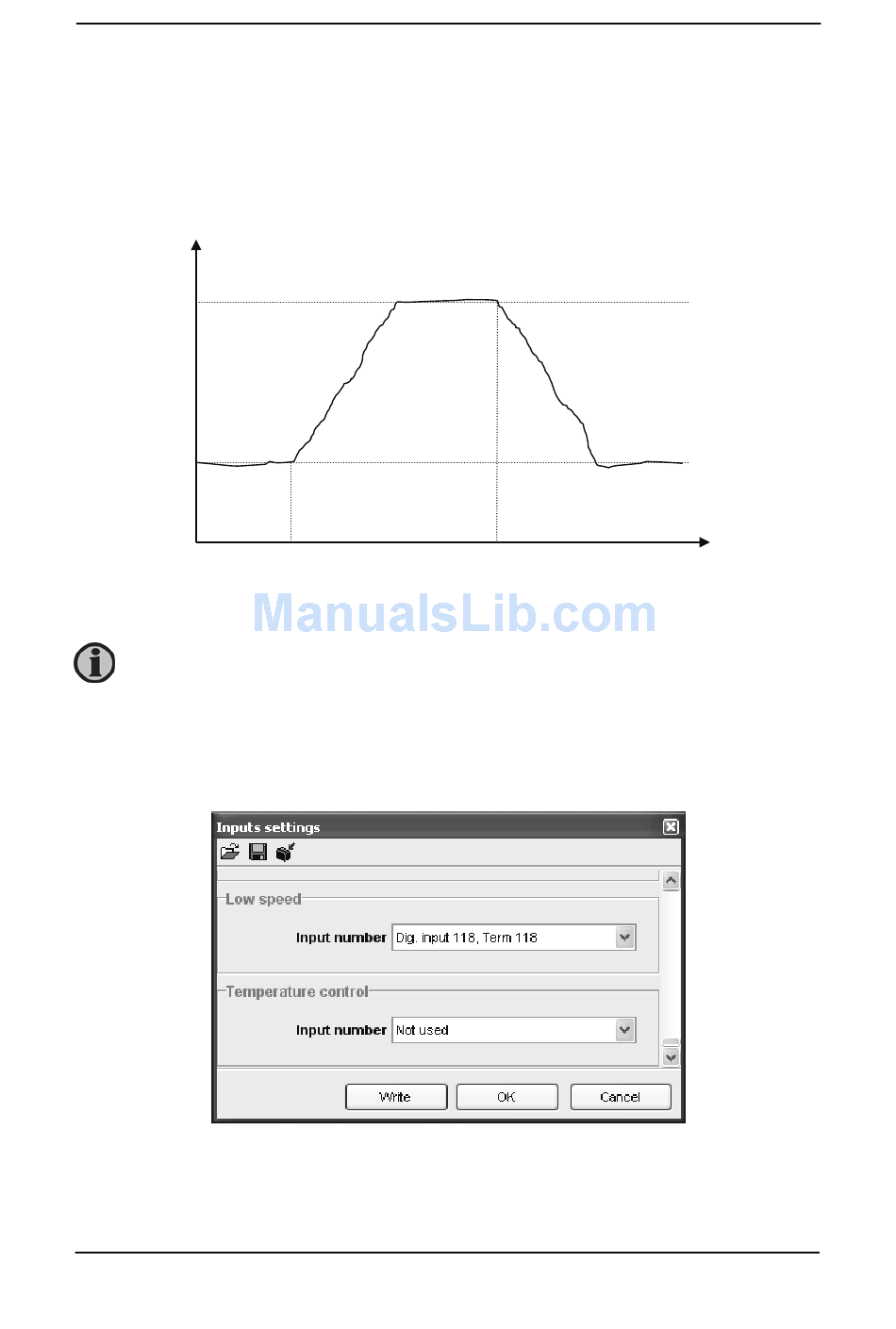

RPM
1500
300
The run status is deactivated, when idle run is active. This means that all
protections set to 'RUN' will be inhibited.
The oil pressure alarm will be enabled at all times, no matter if it is set to 'RUN'
or 'ON'.
Configuration of digital input
The digital input is configured via the PC software.
Inhibit
The alarms that are deactivated by the inhibit function or the alarms with run status are inhibited
like usual except for the oil pressure alarms, i.e. VDO 104 if option M2 is selected, and 4...20mA
input 100 if option M1 is selected.
