AGC

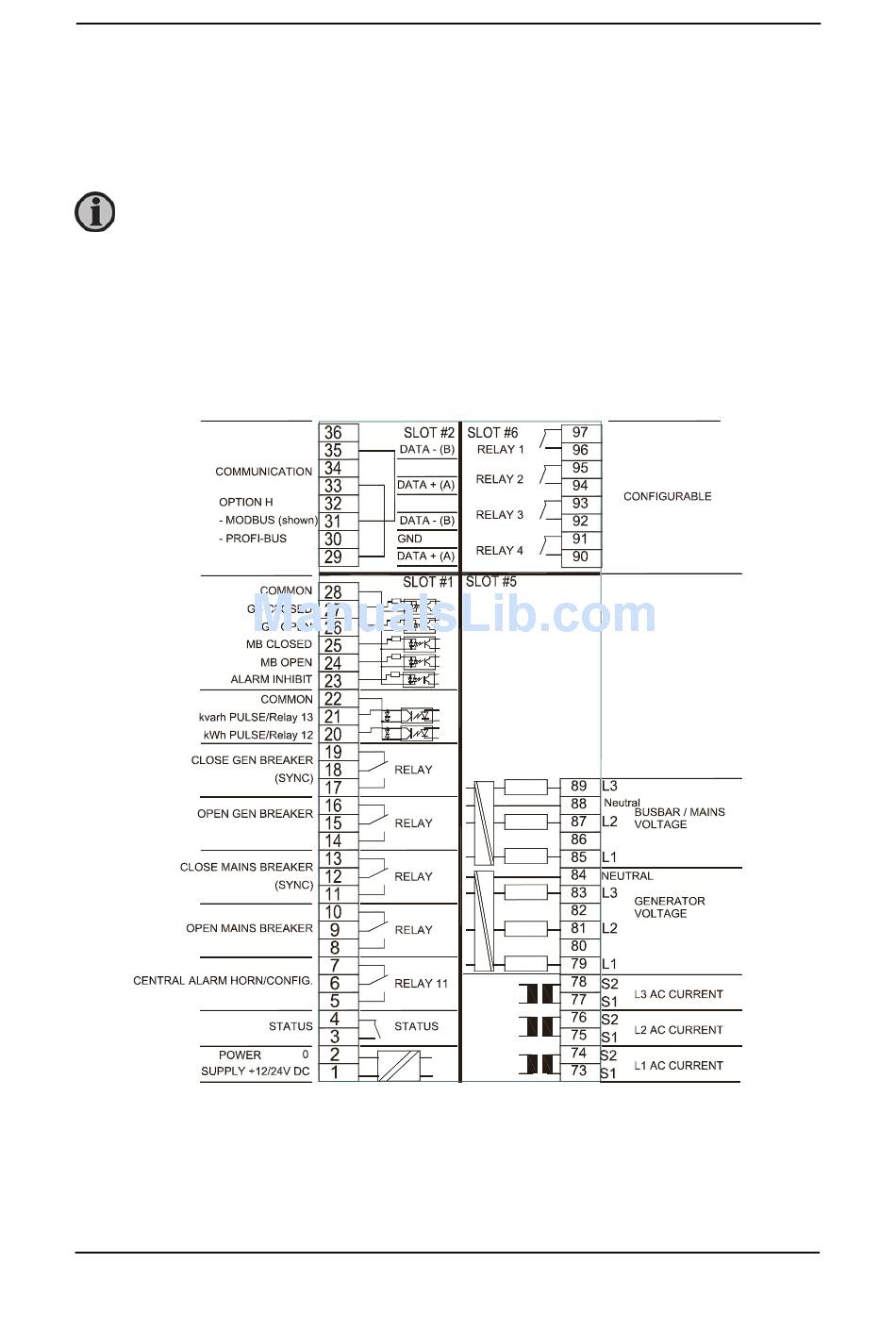

The terminal strip overview shows I/Os for selectable standard and optional
hardware.
Refer to the data sheet for accurate information about possible configurations
of the AGC.
Refer to the input/output lists in the installation instructions for detailed
information about the I/Os of the specific options.
Slots #1, #2, #5 and #6
DEIF A/S
Terminal strip overview
Designer's Reference Handbook
Page 9 of 168
