AGC

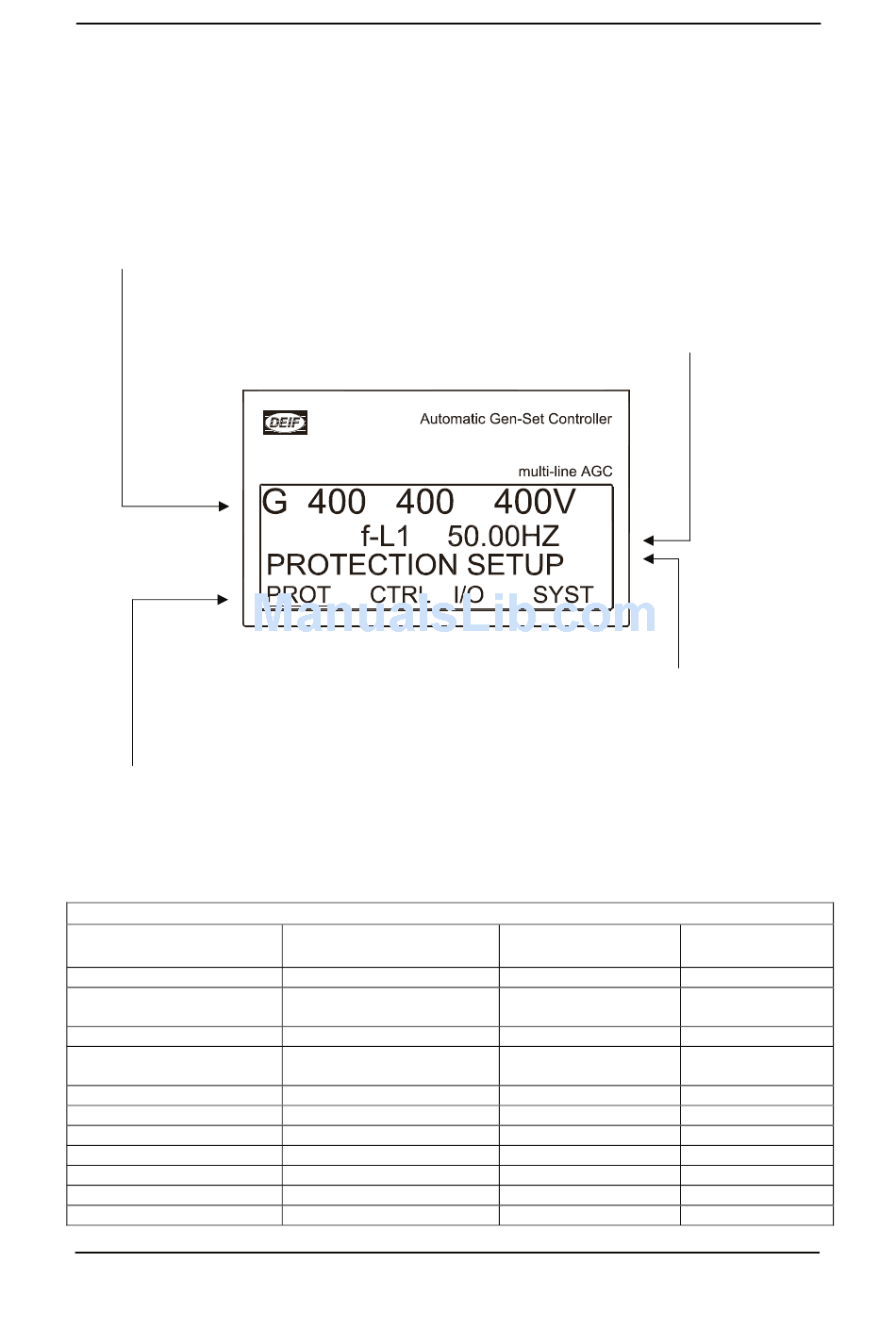

Setup menu
The setup menu system is used for parameter setup of the unit, and if the user needs detailed
information that is not available in the view menu system. So, this menu can be used for both
daily use and setup purposes. The menu is entered from the entry window by selecting the entry
SETUP in the fourth display line.
First display line
(Daily use) The first line is used to display generator and BUS values
Second display line
(Daily use)
(Menu system)
(Alarm/event list)
Third display line
(Daily use)
(Setup menu)
Fourth display line
(Daily use) Entry selection for the setup menu. Press SEL to enter the underscored menu
(Setup menu) Sub-functions for the individual parameters, e.g. limit
Possible values in second display line
View line/second display line configuration
For generator
Voltage L1 L2 L3 (V AC)
Voltage L1-N (V AC)
Voltage L2-N (V AC)
Voltage L3-N (V AC)
Voltage L1-L2 (V AC)
Voltage L2-L3 (V AC)
Voltage L3-L1 (V AC)
Voltage max. (V AC)
Voltage min. (V AC)
Current L1 L2 L3 (A)
Current L1 (A)
DEIF A/S
Various values can be displayed
Information about the selected channel number
The latest alarm/event is displayed
Explanation for the fourth line cursor selection
Presents setting of the selected function, and, if
changes are made, the possible max. and min. values
for the setting
For bus/mains
Voltage L1 L2 L3 (V AC)
Voltage L1-N (V AC)
Voltage L2-N (V AC)
Voltage L3-N (V AC)
Voltage L1-L2 (V AC)
Voltage L2-L3 (V AC)
Voltage L3-L1 (V AC)
Voltage max. (V AC)
Voltage min. (V AC)
Frequency (Hz)
Frequency/voltage L1 (Hz/
Designer's Reference Handbook
For analogue input
Analogue 98
Analogue 100 (oil
press.)
Analogue 102 (fuel
level)
Analogue 104
Analogue 91
Analogue 93
Analogue 95
Analogue 97
PT100 no. 106
PT100 no. 109
Communication/
other
PID Value #1.1
PID Value #1.2
PID value #1.3
PID value #1.4
PID value #1.5
PID value #1.6
PID value #1.7
PID value #1.8
PID value #2.1
PID value #2.2
PID value #2.3
