AGC
It is necessary to use the PC utility software when setting up the time dependent
start/stop function.

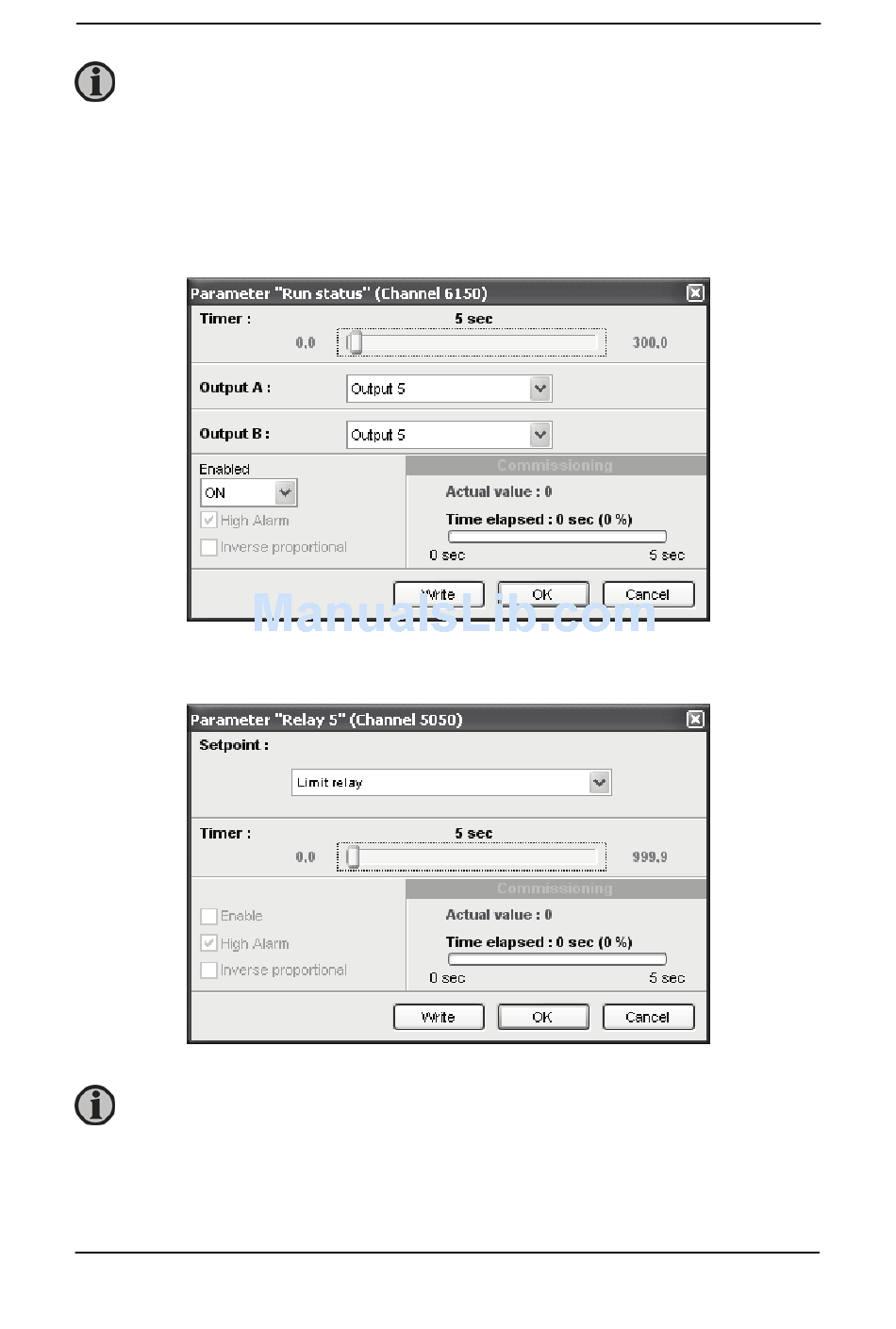

6150 Running status
can be adjusted to give a digital output when the gen-set is running.
Select the correct relay number in output A and output B and enable the function. Change the
relay function to limit in the I/O menu. Then the relay will activate, but no alarm will appear.
If the relay function is not changed to 'limit' function, an alarm will appear at
every running situation.
The purpose of the derate function is to be able to reduce the maximum output power of the
gen-set, if specific conditions require this. An example of such a condition is the ambient
DEIF A/S

Running output

Derate gen-set

Designer's Reference Handbook
Page 82 of 168
