7

Technical Data

7.1

Specifications

7.2

PC and CTA Interfaces

The PC interface of the CT SB2 switch box is exclusively intended to connect
the CT SB2 to a computer (e.g. running the CT Analyzer PC Toolset software).
The CTA interface of the CT SB2 switch box is exclusively intended to connect
the CT SB2 to a CT Analyzer.

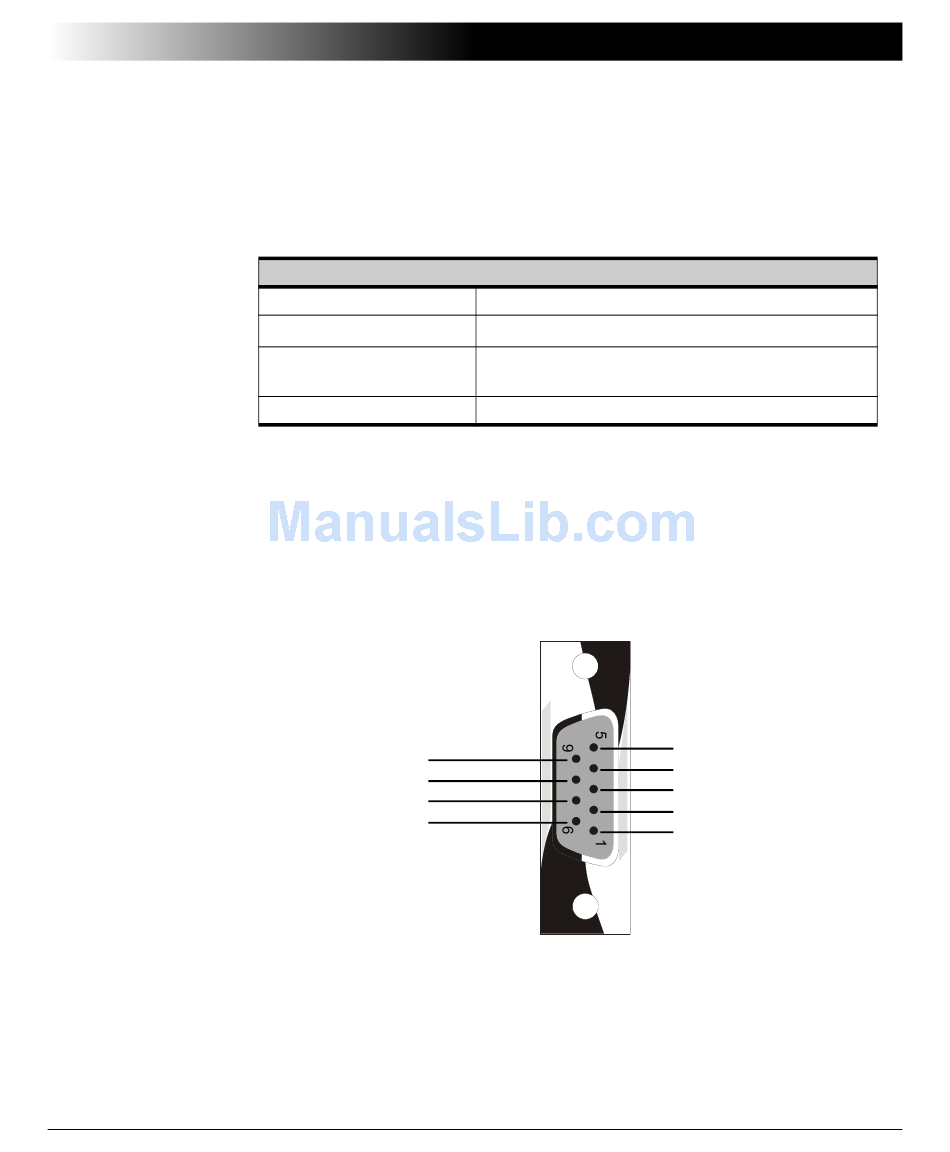

PC interface
9-pole SUB-D connector, female
Outside view onto the sockets at the
CT SB2!
Figure 7-1
Specifications
Mains connection
Mains voltage
Mains fuses
Output voltage
9 nc
8 RTS (out)
7 CTS (in)
6 nc
PC interface on the CT SB2
Connector according to IEC 60320
100 - 240V / 50/60Hz / 0.2A
AC
2 x T2.0AH 250V,
(high-breaking capacity wire fuse 5 x 20mm)
0 - 120V
Technical Data
5 GND (signal ground)
4 nc
3 RxD (data in / receive)
2 TxD (data out / transmit)
1 nc
