6.2.2

Information Fields to be Filled by the User

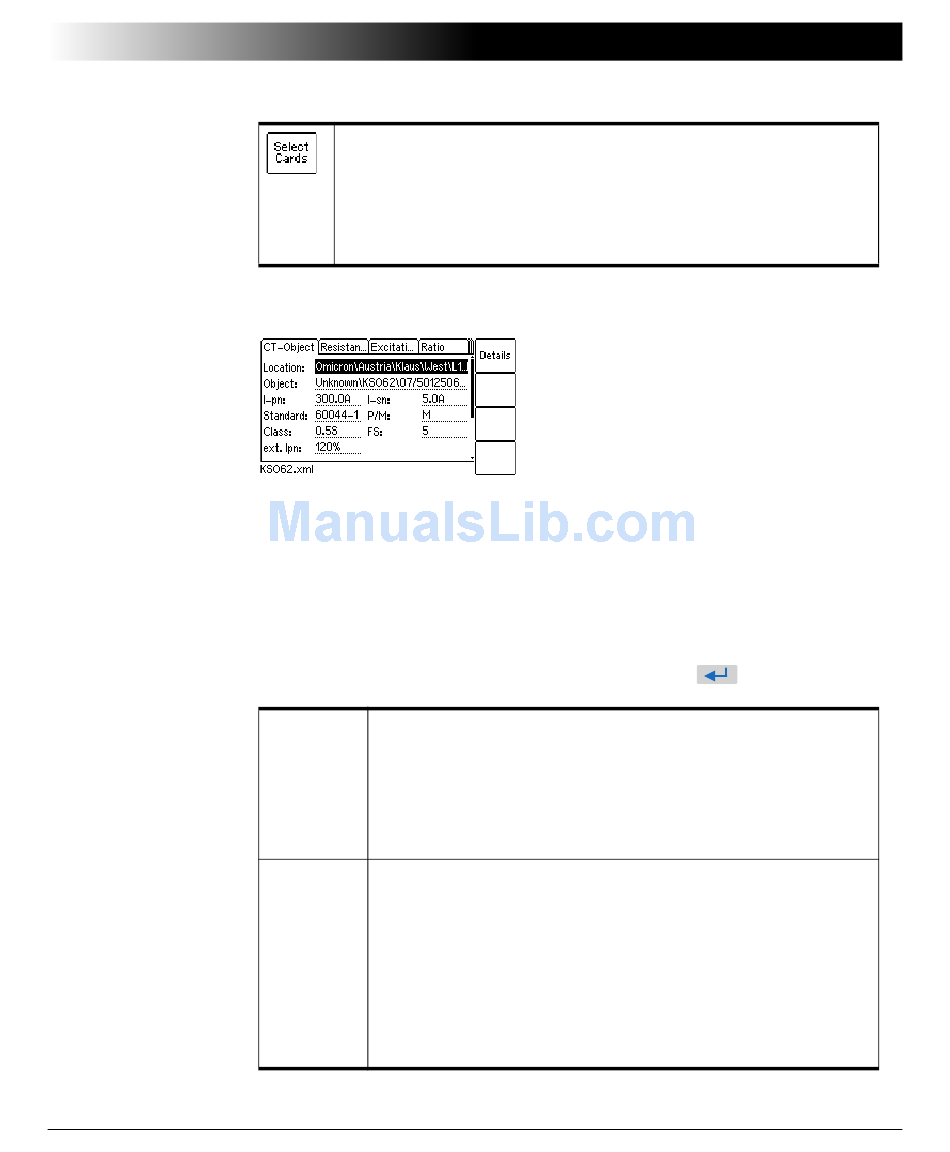

Figure 6-2
The "Location" and "Object" text fields are only used for reporting and
documentation purposes. They can be filled by the user after the test is finished.
These fields provide information about the location of the CT and the CT itself.
The content of these fields is defined in the Location settings page and the
Object settings page, respectively.
To open these settings pages, position the cursor on the "Location" or the
"Object" field and then press the Details soft key or the
Opens the Select Cards page where you can select the test cards
for the current test. The Select Cards page is described on page 69.
Note: When loading a new CT test from the main menu (using the
"New CT-Test" entry), the test card selection defined in the default
test settings is used for this new test. The card selection performed
in the CT-Object card will then be discarded.
Editing the location settings in the CT-Object card
Location The Location settings page provides the following text fields.
settings Each field can contain a maximum of 40 numbers or letters.
page
• Company, Country, Station, Feeder:
Information where the CT is installed.
• Phase: Phase to which the CT is connected.
• IEC-ID: IEC-ID of the CT or freely definable information.
Object The Object settings page provides the following text fields.
settings Each field can contain a maximum of 40 numbers or letters.
page
• Manufact.: Manufacturer of the CT under test.
• Type: Type number or description of the CT under test.
• Serial No.: Serial number of the CT under test.
• Core: Number of the tested core.
• Tap: Description of the tap (e.g. 1S1-1S3, X1-X4, ...).
• Optional 1: Optional field for free use.
The CT Analyzer Test Cards
key.
