Functional Components of the CT Analyzer

1.2.1

Overview

12

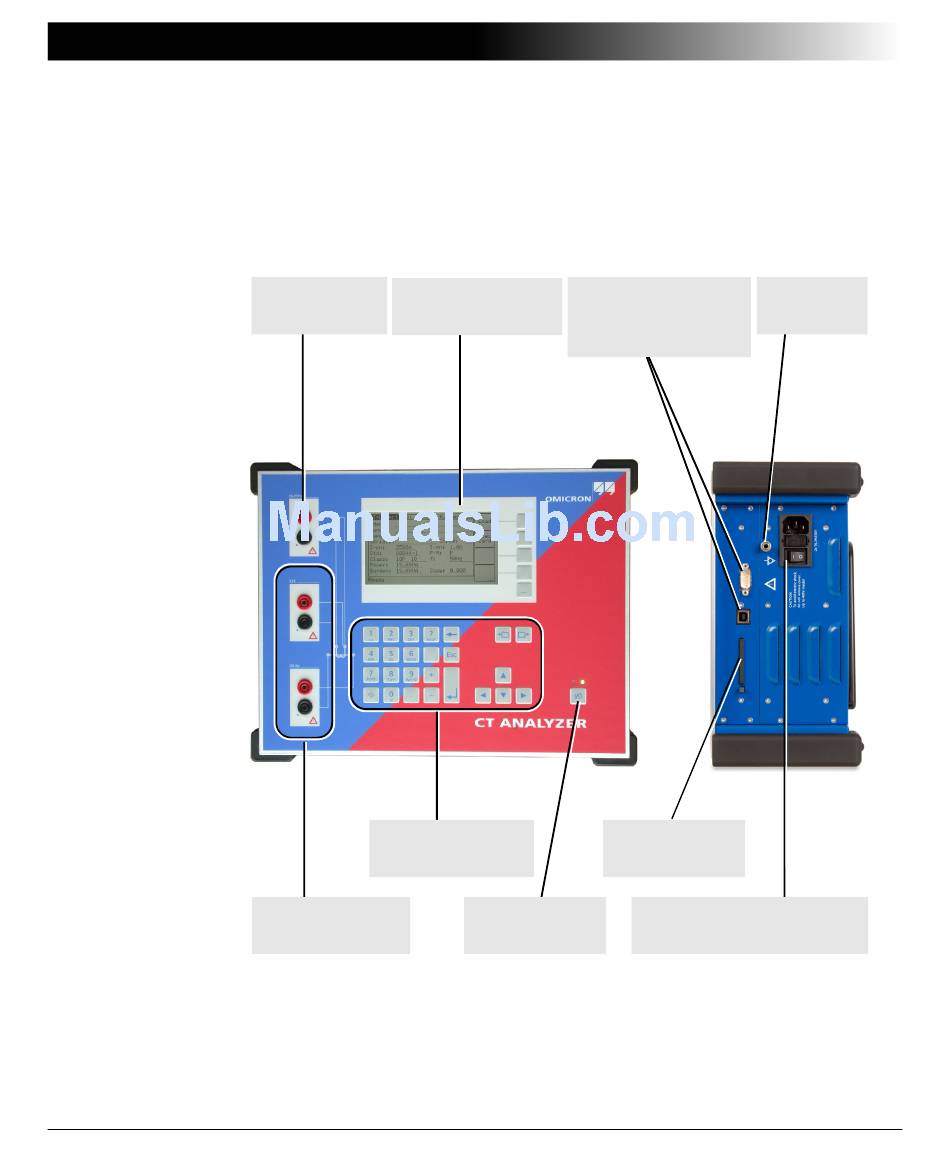

Figure 1-1 provides an overview of the operating and display elements and the
connectors of the CT Analyzer.
Output
Display
Generator output
with context-dependent
keys ("soft keys")
Keyboard
with cursor keys and
card selection keys
Sec, Prim
Measurement inputs
Figure 1-1 CT Analyzer overview
Remote control interface
RS232 interface and USB
interface for connecting
the CT Analyzer to a PC
Compact Flash
card slot
I/0 key Mains connection unit
with status LEDs Mains socket with fuse and
ON/OFF switch
Grounding
terminal
