6.2.1

Available Soft Keys

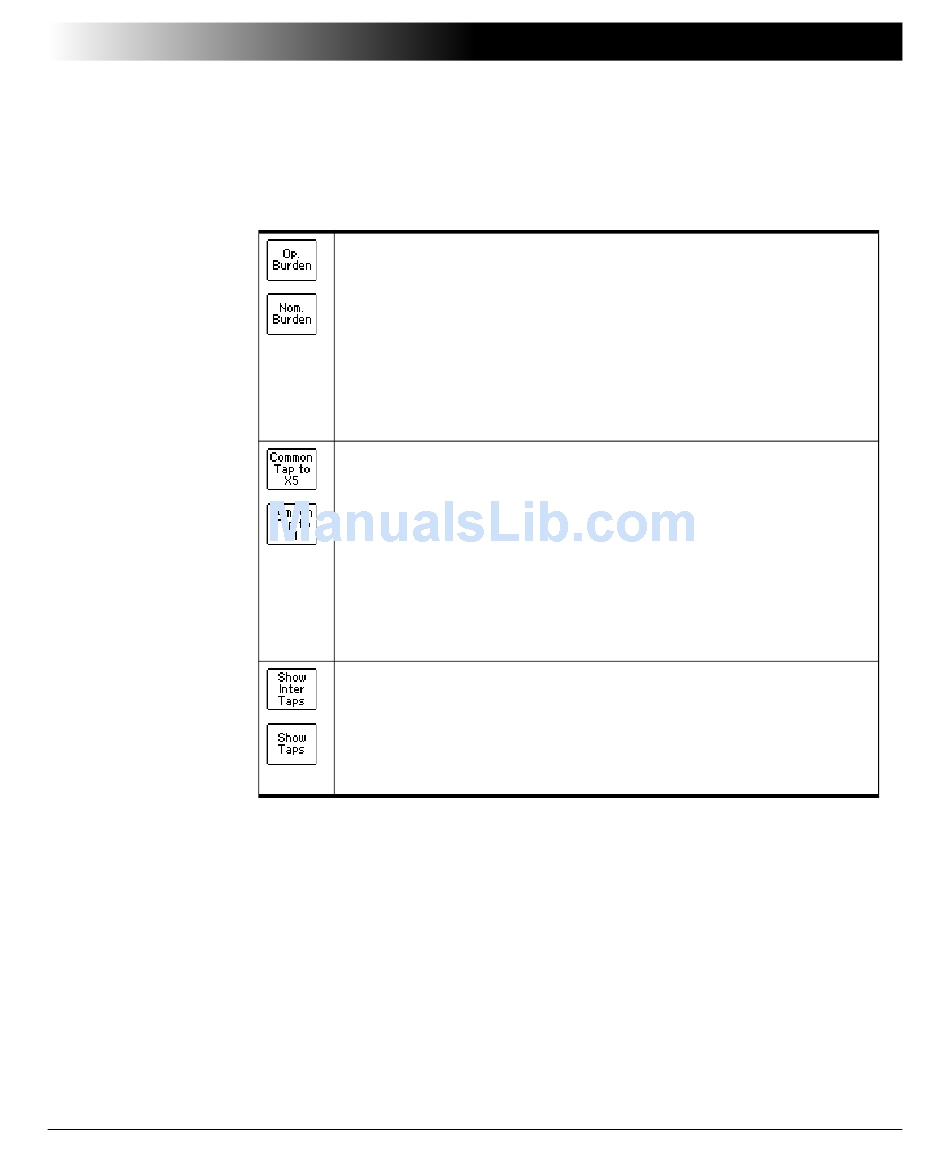

The following soft keys are available if the MR-Config. card is selected but not
in edit mode (the card's tab is highlighted as shown in Figure 6-3):
CT Analyzer Test Cards for Multi-Ratio CT Testing
By default, the table in the MR-Config. card displays the nominal
burden values. Use the Op. Burden soft key to display this table
with the operating burden instead.
The soft key then changes to Nom. Burden to switch the table back
to the nominal burden values.
For the nominal burden values the column header is "VA", for the
operating burden values the column header is "Burden".
See "VA" and "Burden" on page 42 for more detailed information.
Using the Common Tap to X# soft key you can select the common
tap (e.g. tap X5 instead of default tap X1). The common tap is the
tap that is used as reference for all tap combinations (e.g. X1-X2,
X1-X3, X1-X4 etc. if the common tap is X1).
If the highest tap (e.g. X5) is selected as common tap, the soft key
changes to Common Tap to X1.
The default common tap can be selected using the
Select Startup Mode option in the Setting Menu, see chapter 5 on
page 33.
Use the Show Inter Taps soft key to display the intertap
combinations instead of the tap combinations. If the intertap
combinations are displayed, the soft key is labeled Show Taps.
Examples of tap combinations: X1-X2, X1-X3, X1-X4, etc.
Examples of intertap combinations: X2-X3, X2-X4, X3-X4, etc.
