Hardware

2.1

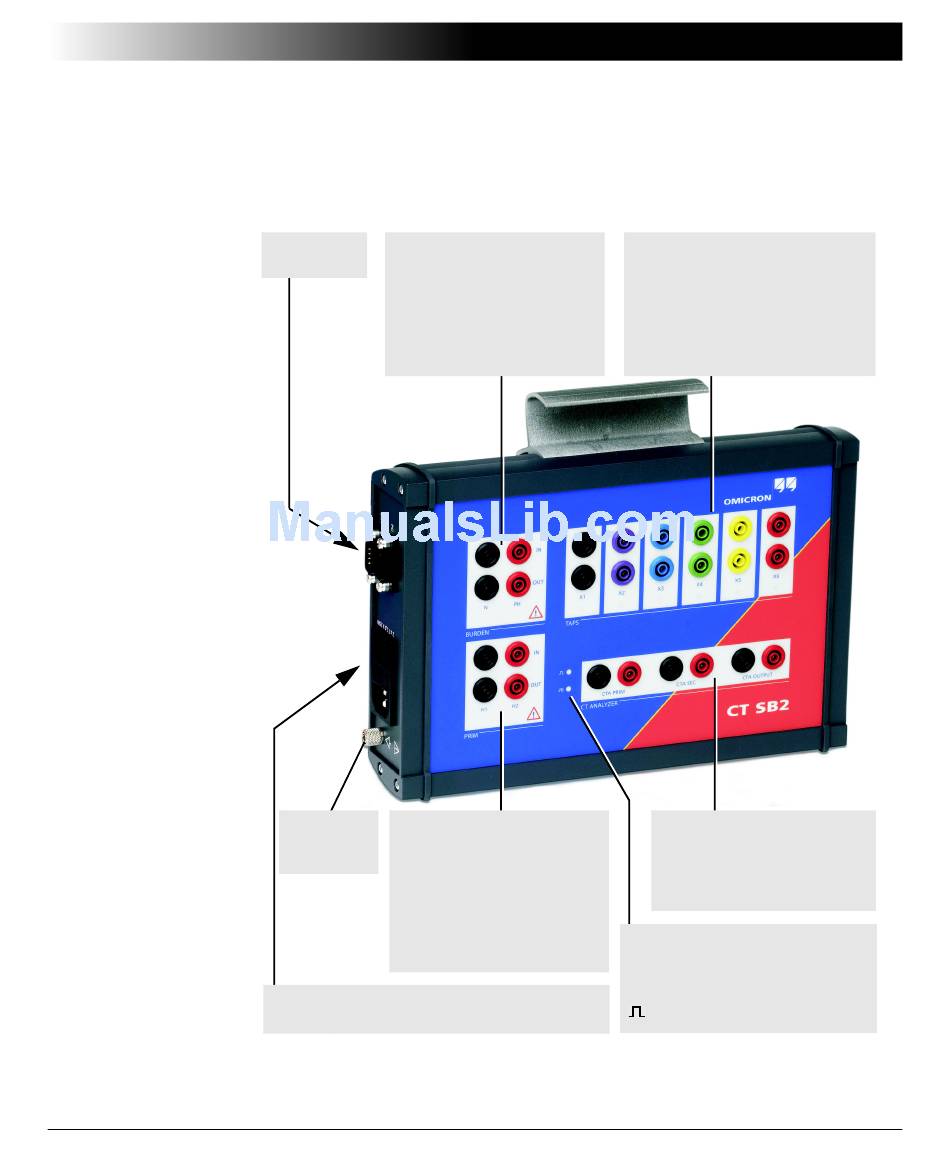

Functional Components of the CT SB2

See also
Figure 2-2
Figure 2-1
PC and CTA
BURDEN
interfaces
IN:
Measurement input for
burden measurement.
OUT: Generator output for
burden measurement.
A green LED lights up when the
output is active.
Equipotential
PRIM
bonding
IN:
Measurement input for
connector
primary side of the CT.
OUT: Generator output for
primary winding
resistance measurement.
A green LED lights up when the
output is active.
Mains connection unit
Mains socket with fuse and ON/OFF switch
CT SB2 overview
Hardware
TAPS
Terminals for connection of CT taps
X1 to X6.
Connect each CT tap to both sockets!
A green LED lights up to indicate
which input/output is currently active.
CT ANALYZER
Input and output terminals for
connection to the CT Analyzer
measurement inputs and
generator output.
LEDs
I/0
Green power LED. Indicates
that the CT SB2 is switched on
and ready for operation.
