Mounting

BE1-11g protection systems are available in two case configurations. J-option protection systems are
supplied in a non-drawout, S1-size case that fits in a standard S1 panel opening. H- and P-option
protection systems are supplied in an H1-size case with drawout capabilities. An H1 case can be adapted
to a panel or rack for single- or double-case mounting. Adapter plates are sold separately. A BE1-11g can
be mounted at any convenient angle.

J Type Case Cutouts and Dimensions

Front dimensions are shown in Figure 181 and side dimensions are shown in Figure 182. Dimensions are
shown in inches [millimeters].
BE1-11
Protection
System
Power Trouble
Edit
BE1-11g
7.00 [177.79]
Relay Minor Major
Alarm Alarm Trip
Reset
Select Operate
Control Control
Switch Switch
P0072-74

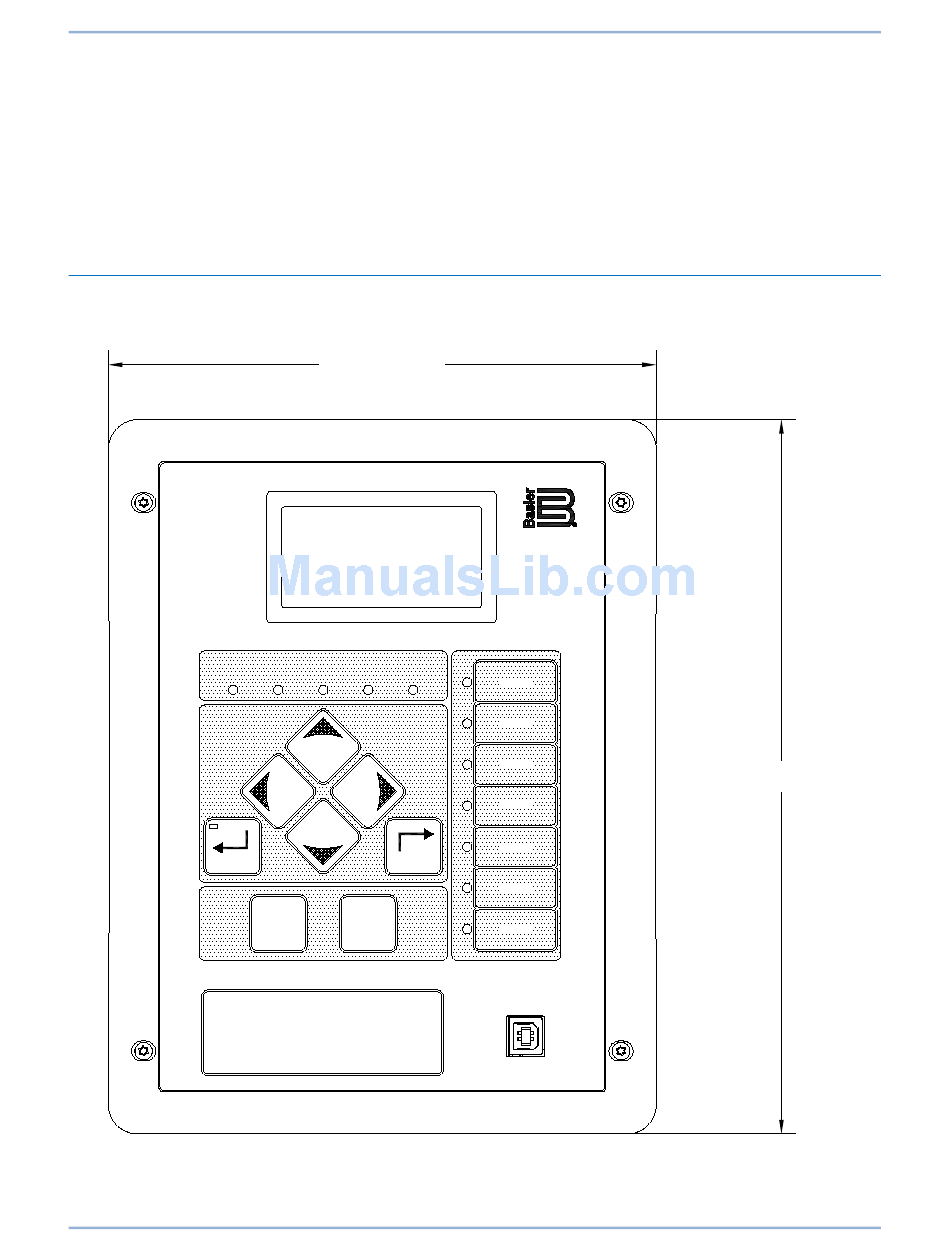

Figure 181. J Type Case - Front Dimensions
BE1-11
Indicator 1
Indicator 2
Indicator 3
Indicator 4
Indicator 5
Indicator 6
Indicator 7
USB
247
9.12 [231.64]
