Settings

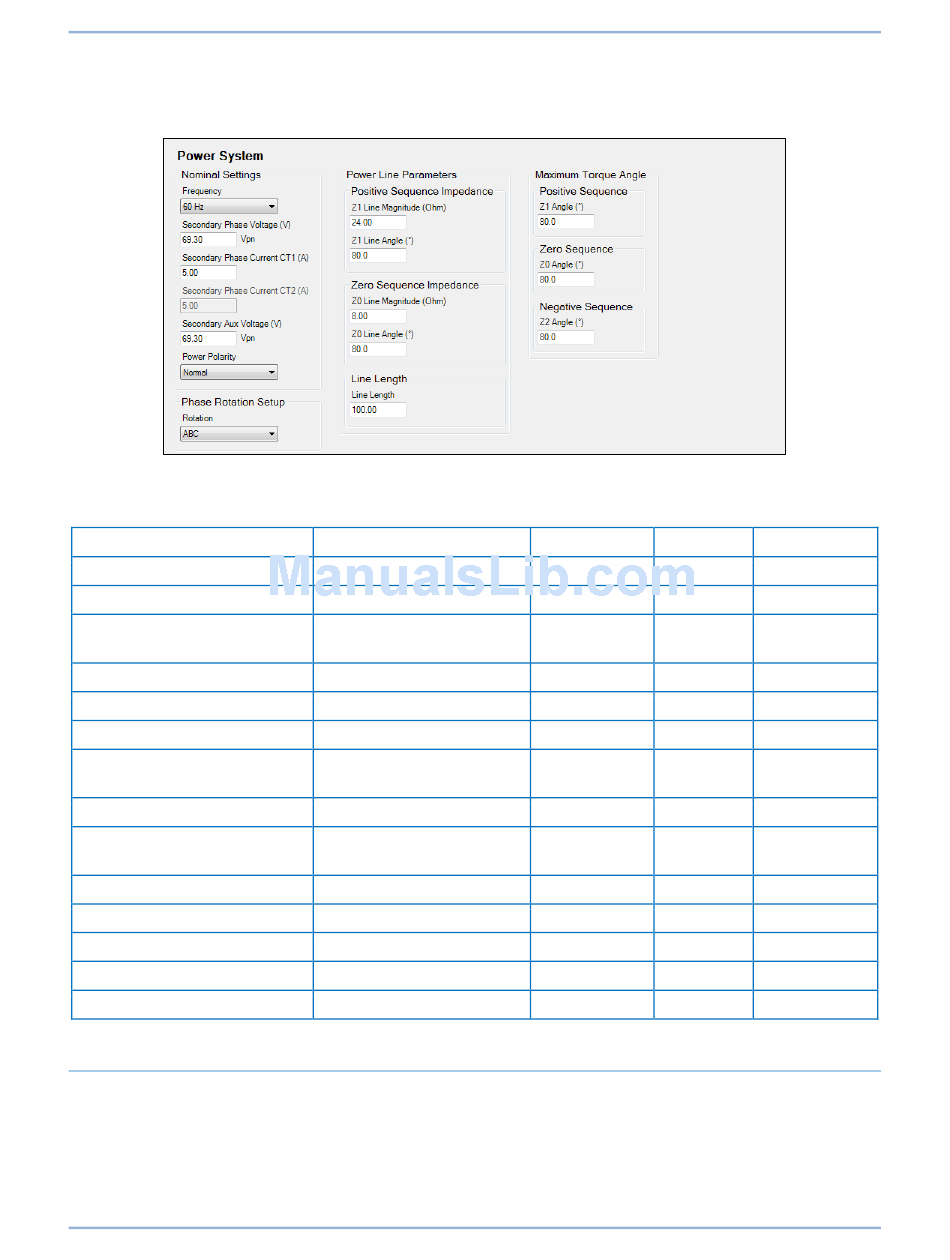

Power system settings are configured on the Power System settings screen (Figure 268) in
BESTCOMSPlus. Setting ranges and defaults are summarized in Table 112.
Setting
Nominal Frequency
Nominal Phase Voltage
Nominal Phase Current
Nominal Aux Voltage
Power Polarity
Phase Rotation
Z1 Line Magnitude
Z1 Line Angle
Z0 Line Magnitude
Z0 Line Angle
Line Length
MTA Z1 Angle
MTA Z0 Angle
MTA Z2 Angle

Sensing Transformers Settings

The BE1-11g requires information about the current and voltage transformers to provide metering, fault
reporting, fault location, and protective relaying.
Sensing transformer settings are configured on the Sensing Transformers settings screen in
BESTCOMSPlus. A summary of the settings appear at the end of this section.
BE1-11g
Figure 268. Power System Settings Screen
Table 112. Power System Settings
Range
25, 50, or 60
50 to 300
0.5 to 15 (5A CTs)
0.1 to 3 (1A CTs)
50 to 300
Normal or Reverse
ABC or ACB
0.05 to 200 (5A CTs)
0.01 to 40 (1A CTs)
0 to 90
0.05 to 650 (5A CTs)
0.01 to 130 (1A CTs)
0 to 90
0.01 to 130
0 to 359.9
0 to 359.9
0 to 359.9
Increment
Unit
n/a
hertz
0.01
volts
varies
amps
0.01
volts
n/a
n/a
n/a
n/a
varies
ohms
1
degrees
varies
ohms
1
degrees
0.01
units
0.1
degrees
0.1
degrees
0.1
degrees
347
Default
60
69.3
5 (5A CTs)
1 (1A CTs)
69.3
Normal
ABC
24
80
8
80
100
80
80
80
Configuration
