Basler BE1-11g Instruction Manual page 243

9424200994 Rev N
Table 89. Current Draw for each Power Supply Voltage Rating (H or P Type Case)
Power Supply Voltage Rating
24 Vdc
48/125 Vdc
125/250 Vdc
BE1-11g

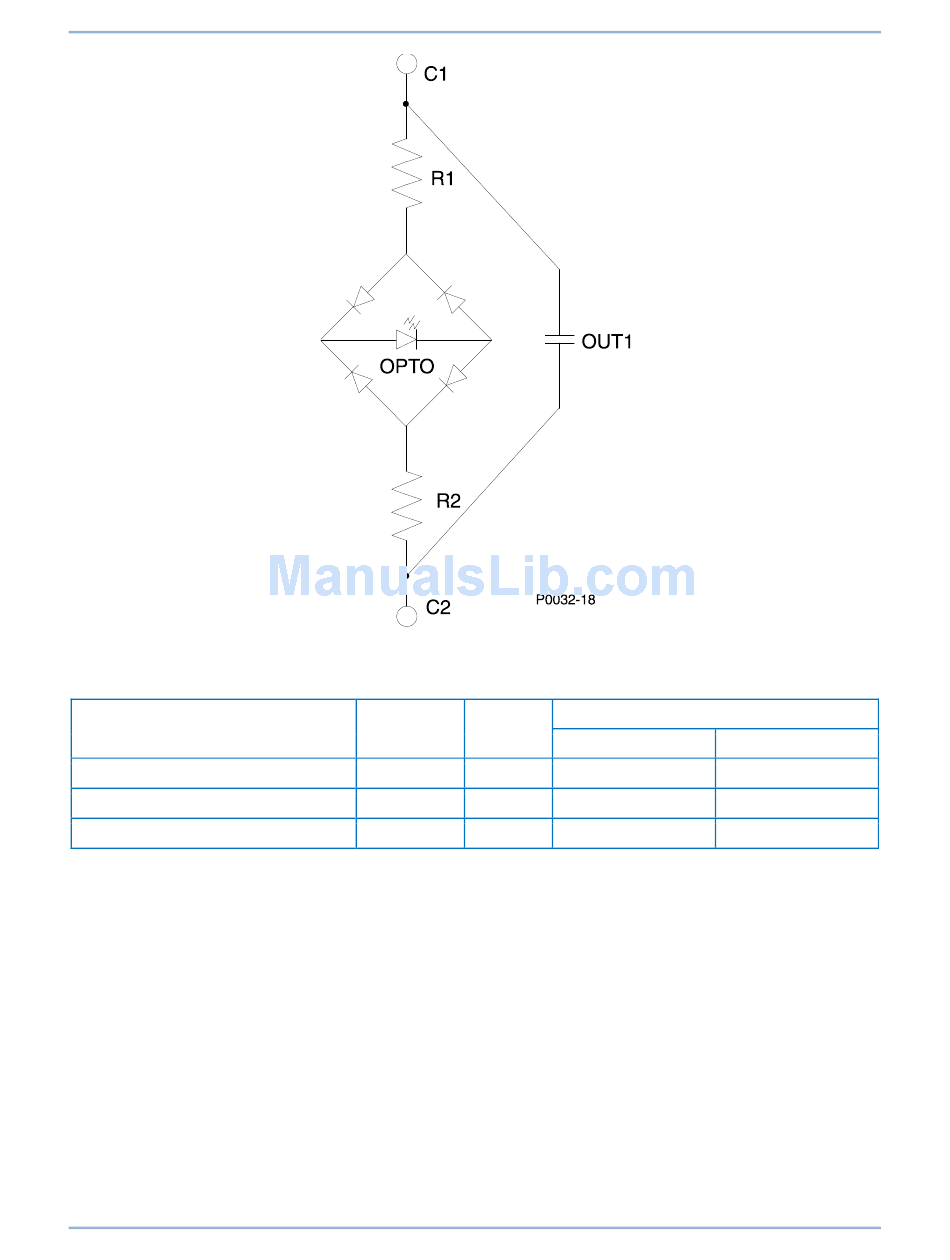

Figure 164. Trip Detector Circuit (H or P Type Case)
R1 = R2 =
8.2 kΩ
18 kΩ
47 kΩ
Optical Isolator
R Total
Off (25% V)
6.0 V (0.36 ma)
16.4 kΩ
26.4 V (0.68 ma)
36 kΩ
68.7 V (0.71 ma)
94 kΩ
On (80% V)
19.2 V (1.18 ma)
38.4 V (1.02 ma)
100 V (1.06 ma)
Trip Circuit Monitor (52TCM)
231
