Operational Settings

Breaker control element operational settings are configured on the Breaker Control Switch (101) settings
screen (Figure 116) in BESTCOMSPlus. Setting ranges and defaults are summarized in Table 68.
Setting
Mode
Disabled or Enabled
BE1-11g

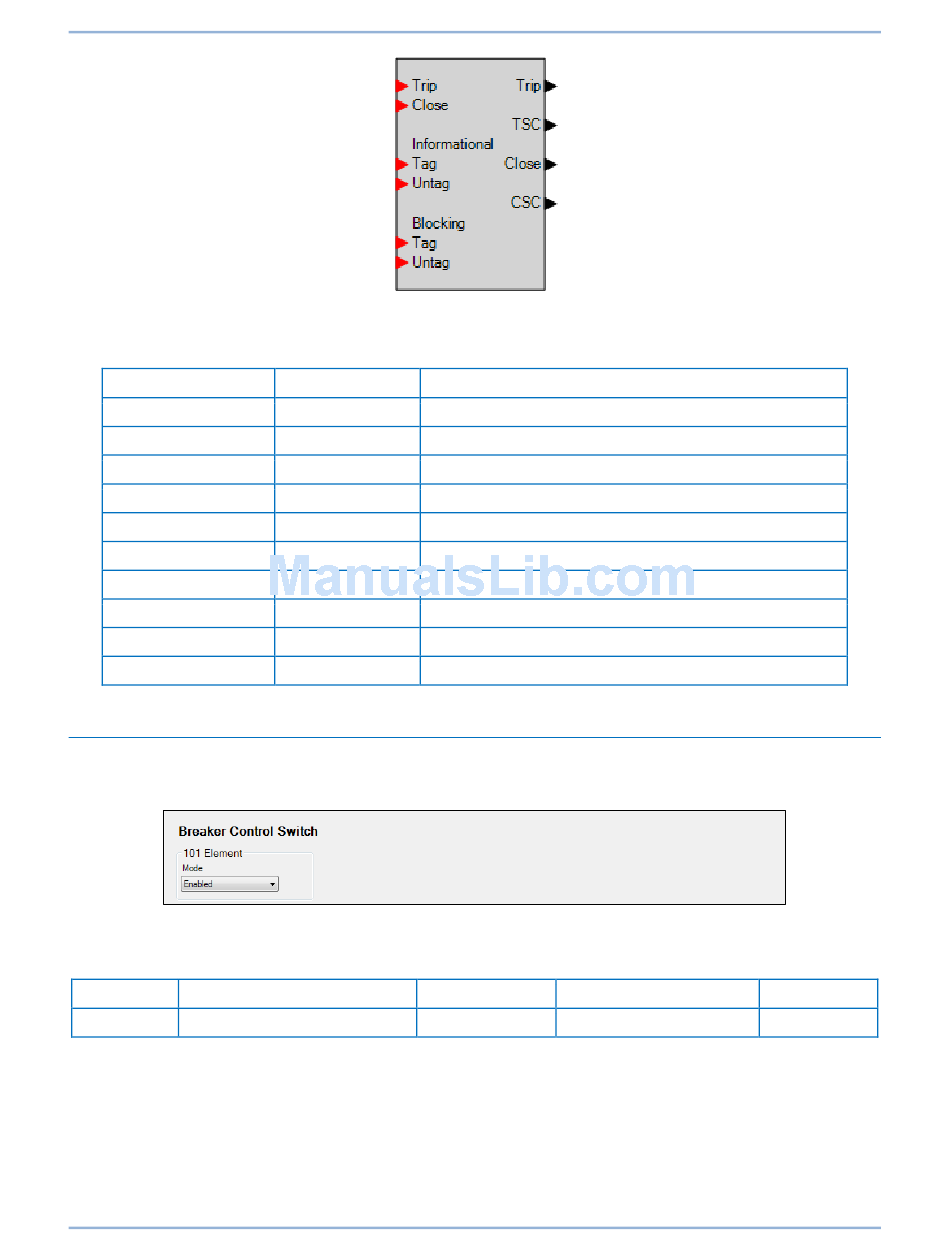

Figure 115. Breaker Control Element Logic Block
Table 67. Logic Inputs and Outputs
Logic Function
Input
Sets the state of the 101 element to Trip
Input
Sets the state of the 101 element to Close
Input
Sets an informational tag on the 101 element
Input
Removes the informational tag from the 101 element
Input
Sets a blocking tag on the 101 element
Input
Removes the blocking tag from the 101 element
Output
True if the 101 element is in the Trip state
Output
True after the Trip output momentarily closes
Output
True if the 101 element is in the Close state
Output
True after the Close output momentarily closes
Figure 116. Breaker Control Switch Settings Screen
Table 68. Operational Settings
Range
Increment
Purpose
Unit of Measure
n/a
n/a
Default
Disabled
Breaker Control Switch (101)
