Name
52TCM Trip Circuit Monitor.
Refer to the
60FL Fuse Loss.
Refer to the
BKRMONITOR Breaker Monitor.
Refer to the
BRKSTAT Breaker Status.
Refer to the
EMAIL-x Email Trigger 1 through 8.
Refer to the
FAULTTRIG Fault Trigger.
Refer to the
INDICATORx Indicators 1 through 7.
Refer to the
The indicator is displayed in the sequence of events and
the corresponding indicator on the front panel is lit when
the Trigger input is true.
To name indicators, use the Settings Explorer in
BESTCOMSPlus to expand the BESTlogicPlus
Programmable Logic tree branch and select Front Panel
Indicator Labels.
LOGICALMRST Logic Alarm Reset.
Refer to the
LOGICLABELx Logic Label 1 through 12.
The logic label is displayed in the sequence of events
when the Trigger input is true.
To name logic labels, use the Settings Explorer in
BESTCOMSPlus to expand the BESTlogicPlus
Programmable Logic tree branch and select Logic Labels.

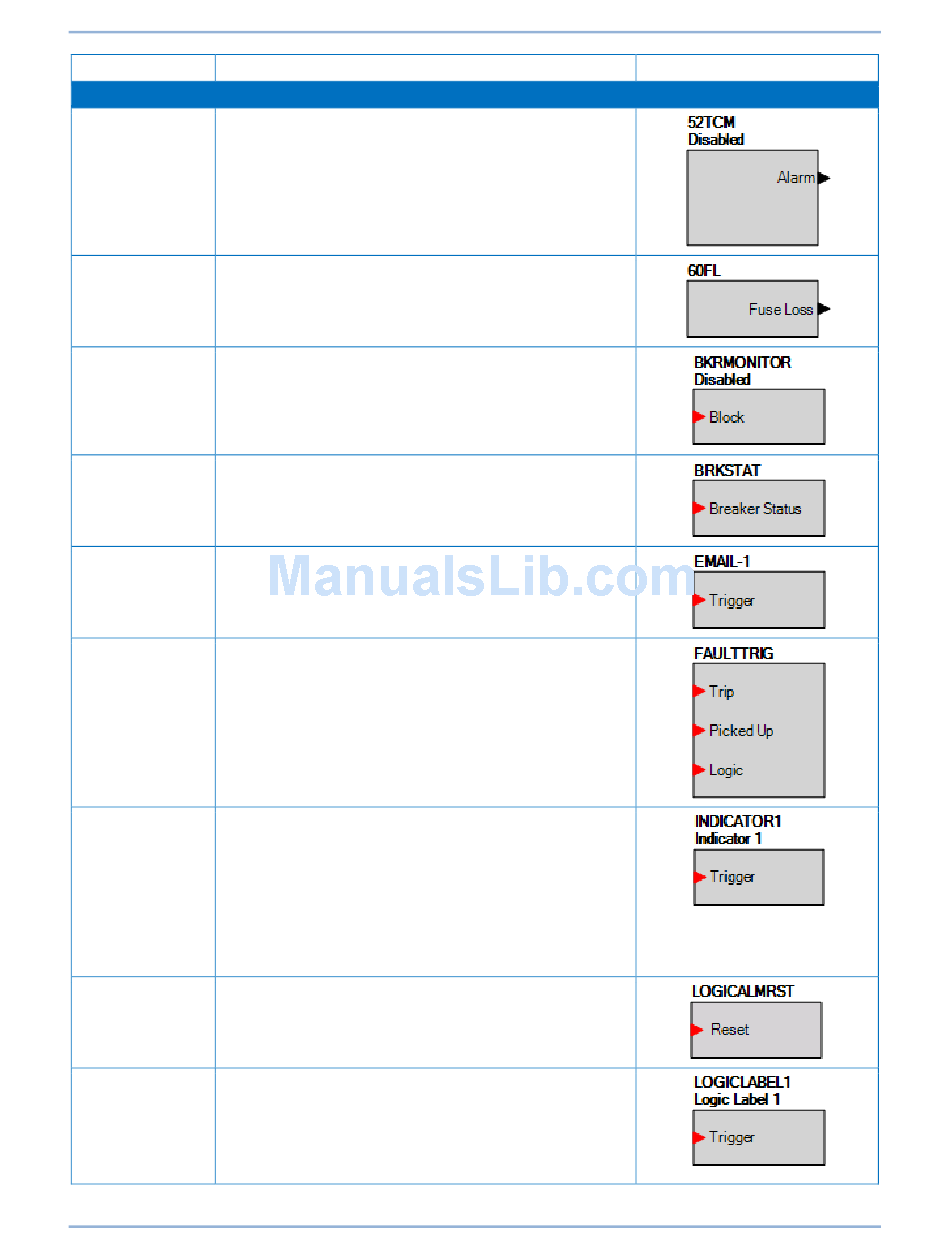

BESTlogic™Plus
Description
Reporting and Alarms
Trip Circuit Monitor (52TCM)
Fuse Loss (60FL) chapter.
Breaker Monitoring chapter.
Breaker Monitoring chapter.
Communication chapter.
Fault Reporting chapter.
Controls and Indicators chapter.
Alarms chapter.
chapter.
