Logic Schemes - Basler BE1-11g Instruction Manual

9424200994 Rev N

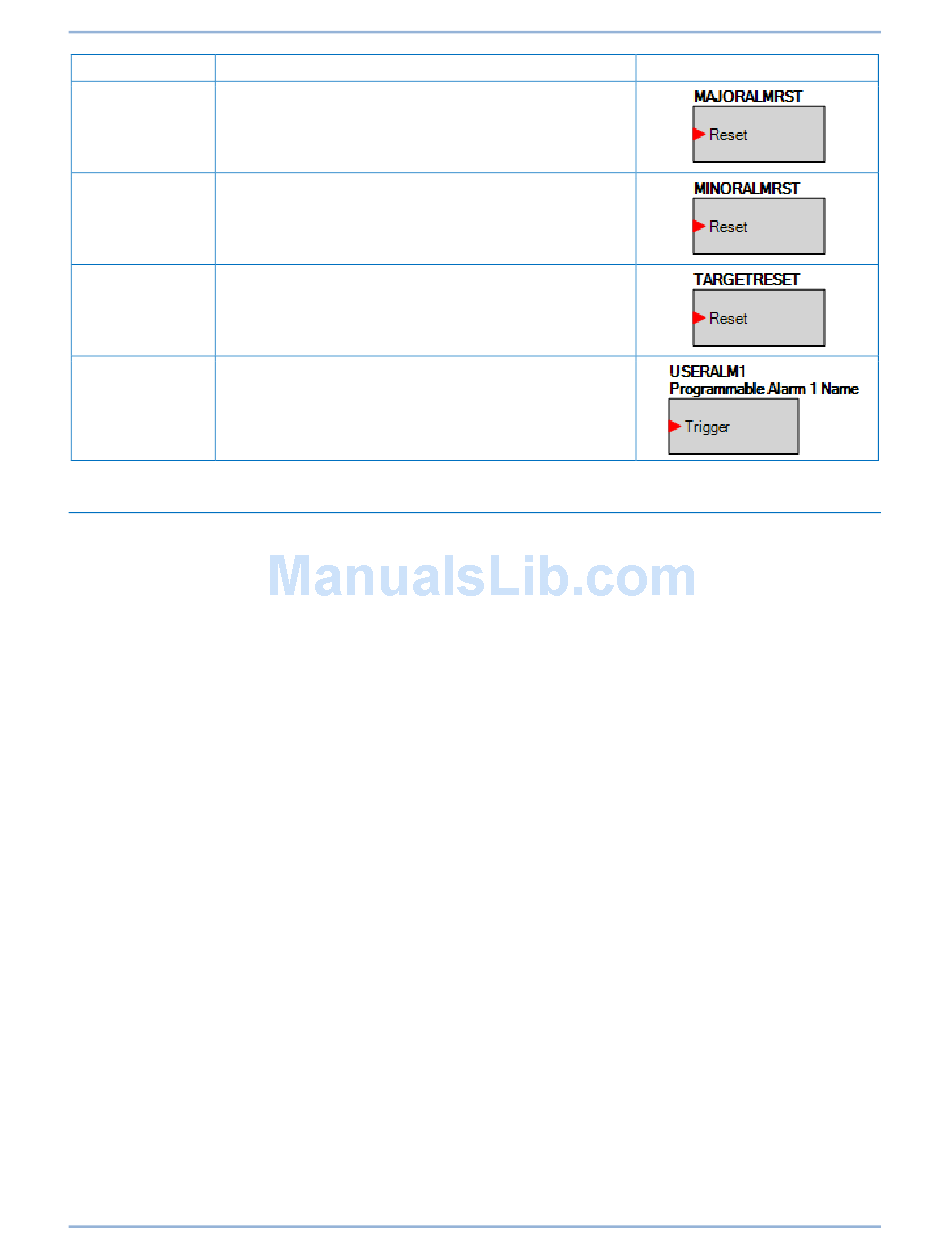

Name
MAJORALMRST Major Alarm Reset.
Refer to the
MINORALMRST Minor Alarm Reset.
Refer to the
TARGETRESET Target Reset.
Refer to the
USERALARMx User Alarms 1 through 16.
Refer to the

Logic Schemes

A logic scheme is a group of logic variables that defines the operation of a BE1-11g. Each logic scheme is
given a unique name. This gives you the ability to select a specific scheme and be confident that the
selected scheme is in operation. One logic scheme is configured for typical control applications and is the
default active logic scheme. Only one logic scheme can be active at a given time. In most applications,
preprogrammed logic schemes eliminate the need for custom programming. Preprogrammed logic
schemes can provide more inputs, outputs, or features than are needed for a particular application. This
is because a preprogrammed scheme is designed for a large number of applications with no special
programming required. Unneeded logic block outputs can be left open to disable a function or a function
block can be disabled through operating settings.
When a custom logic scheme is required, programming time is reduced by modifying the default logic
scheme.
Default Logic Scheme
All BE1-11g protection systems are delivered with the default logic scheme pre-loaded in memory. If the
function block configuration and output logic of the default logic scheme meets the requirements of your
application, then only the operating settings (power system parameters and threshold settings) need to be
adjusted before placing the BE1-11g in service.
Details of Default Logic Scheme describes the characteristics of the logic scheme and how it combines to
create an Overcurrent Protection System for a radial system substation. A detailed description of the
default scheme is also provided.
The default logic scheme is designed to accommodate most common distribution or sub-transmission
radial system overcurrent coordination schemes. The protection engineer can adapt it by changing the
function block operation and settings. This eliminates the need to create a custom logic scheme.
It should be noted that the default logic scheme also illustrates typical ways of using or controlling various
functions. The user can choose to create a custom logic scheme by mixing the logic from the default
scheme. The flexibility of BESTlogicPlus allows the protection engineer to create a custom scheme that
exactly meets the requirements of the application.
BE1-11g
Description
Alarms chapter.
Alarms chapter.
Fault Reporting chapter.
Alarms chapter.
307
Symbol
BESTlogic™Plus
