9424200994 Rev N
189

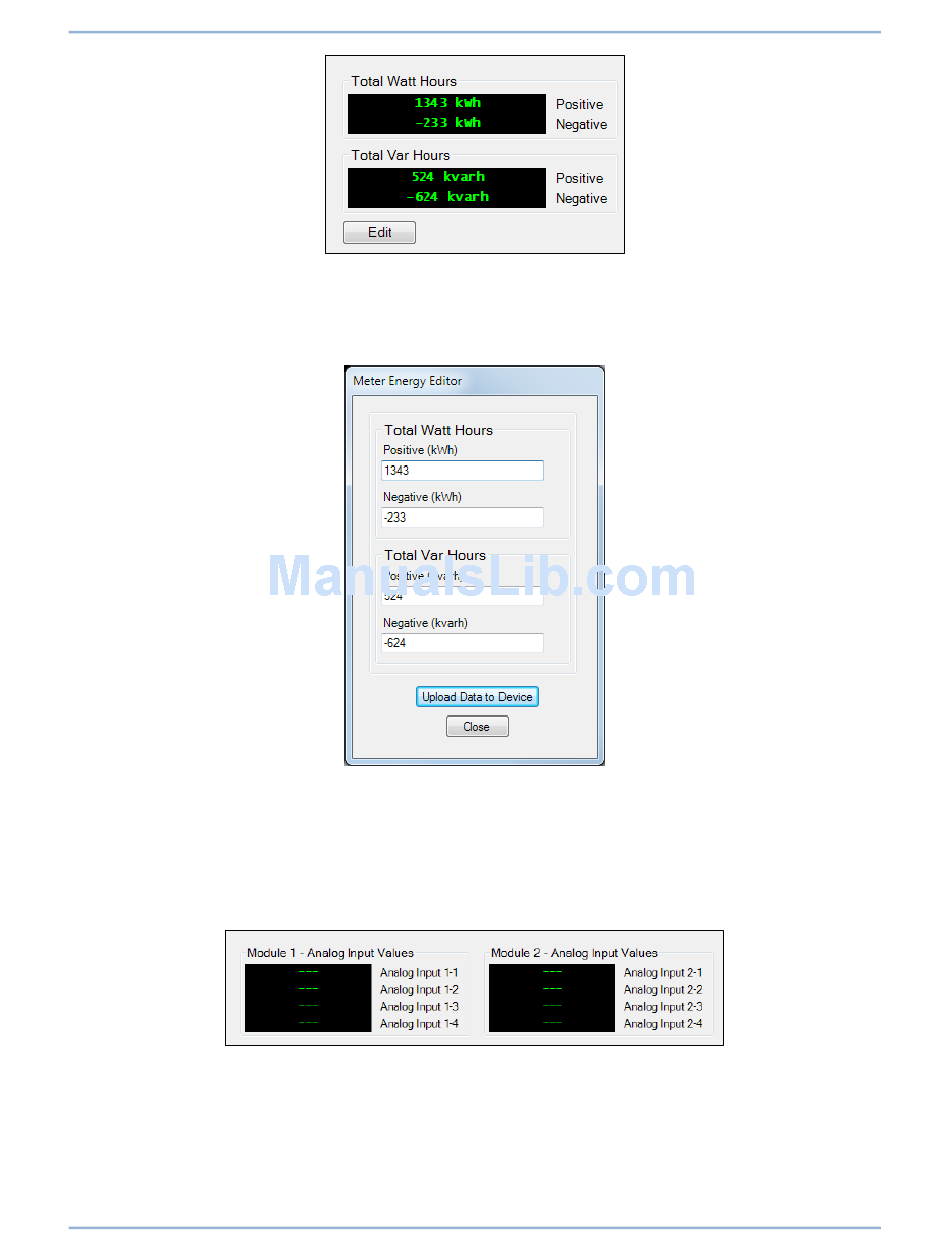

Figure 129. Analog Metering, Energy Screen
Click the Edit button to change the values. The Meter Energy Editor screen appears as shown in
Figure 130. Make the desired changes and then click Upload Data to Device. A username and password
are required to upload data. Click Close when finished.
Figure 130. Meter Energy Editor Screen
Analog Inputs and Outputs
The following screens are used when an optional RTD module is connected to the BE1-11g. For more
information, refer to the
RTD Module
chapter.
The Analog Inputs screen is shown in Figure 131 and the Analog Outputs screen is shown in Figure 132.
Figure 131. Analog Metering, Analog Inputs Screen
BE1-11g
Metering
