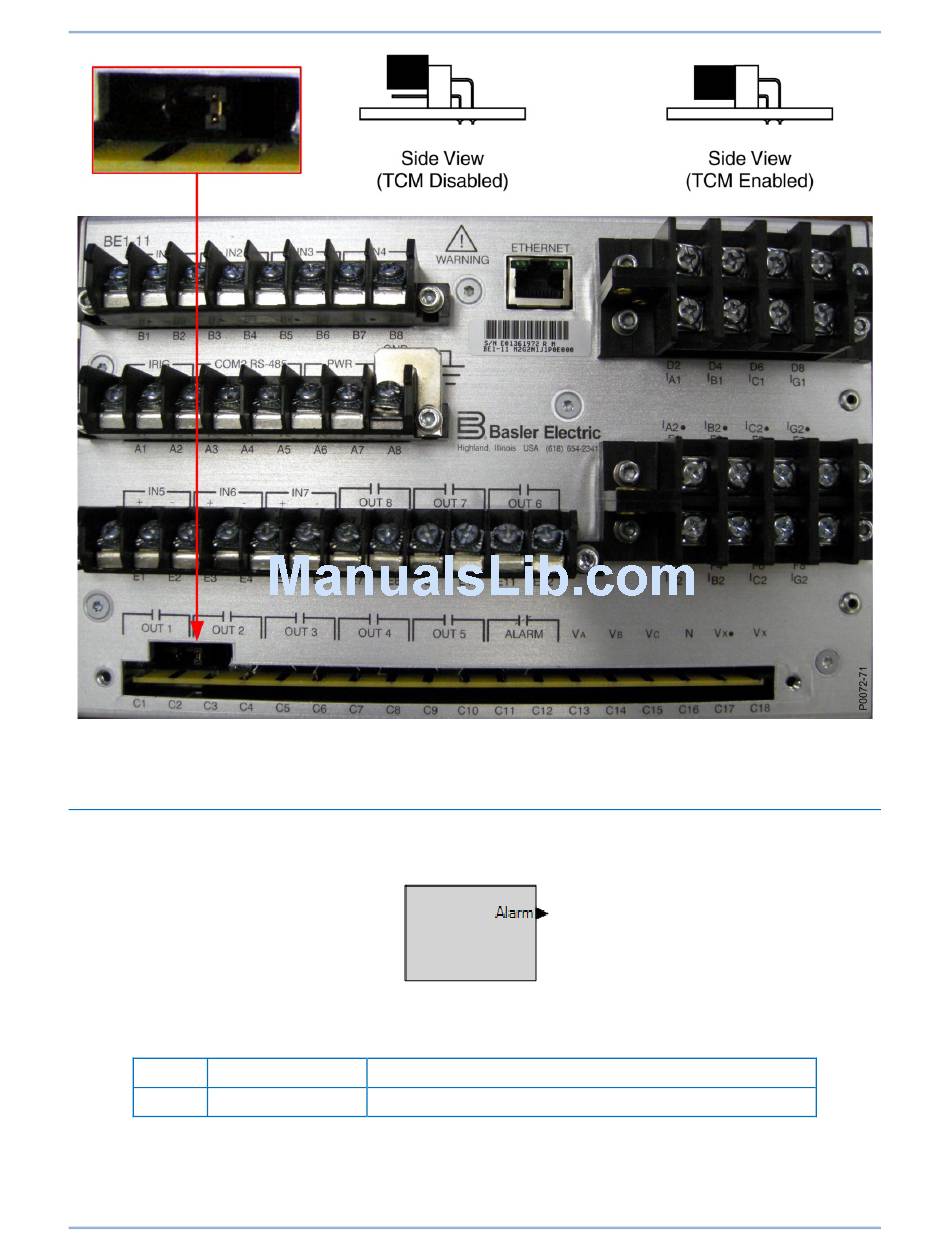

Figure 167. Trip Circuit Monitor Enable/Disable Jumper Location

Logic Connections

Trip circuit monitor logic connections are made on the BESTlogicPlus screen in BESTCOMSPlus. The trip

circuit monitor element logic block is illustrated in Figure 168. The logic output is summarized in Table 90.

Figure 168. Trip Circuit Monitor Element Logic Block

Table 90. Logic Output

Logic Function

True when voltage is not detected in the trip circuit

Trip Circuit Monitor (52TCM)
