430
Step 2:
Prepare to monitor the 81-1 timings. Timing accuracy is verified by measuring the elapsed time
between a frequency change and OUT1 closing.
Step 3:
Connect and apply a 120 Vac, 60-hertz voltage source to terminals C13 (A-phase) and C16
(neutral).
Step 4:
Step the frequency of the applied voltage down to 55-hertz. Measure the time delay and record
the result.
Step 5:
Repeat Step 4 for the 5,000 ms and 10,000 ms time delays listed in Table 178. Record the
results.
Step 6:
(Optional.) Repeat steps 1 through 5 for settings groups 1, 2, and 3.
Step 7:
(Optional.) Repeat steps 1 through 6 for 81-2, 81-3, 81-4, 81-5, 81-6, 81-7, and 81-8.
Pickup Verification (ROC Frequency)
Step 1:
Use BESTCOMSPlus to send the operational settings in Table 179 to the BE1-11g. Reset all
targets.
Setting
Element Mode
Source
Pickup
Voltage Inhibit
Over Frequency
Inhibit
Under Frequency
Inhibit
81-1 ROC
Step 2:
Use BESTCOMSPlus to configure the BESTlogicPlus programmable logic shown in Figure 294.
•
Blocking is disabled.
•
OUT1 closes for 81-1 Trip.
•
OUT2 closes for 81-1 Pickup.
•
Fault recording is enabled.
Frequency (81) Test
Table 179. Operational Settings (ROC Frequency)
BESTCOMSPlus
Value
Rate of
Protection, Frequency
Change
(81-1)
Phase VT
Protection, Frequency
(81-1)
10 Hz/sec
Protection, Frequency
(81-1)
40 V
Protection, Frequency
(81-1)
64 Hz
Protection, Frequency
(81-1)
46 Hz
Protection, Frequency
(81-1)
Enabled
Target Configuration,
Targets

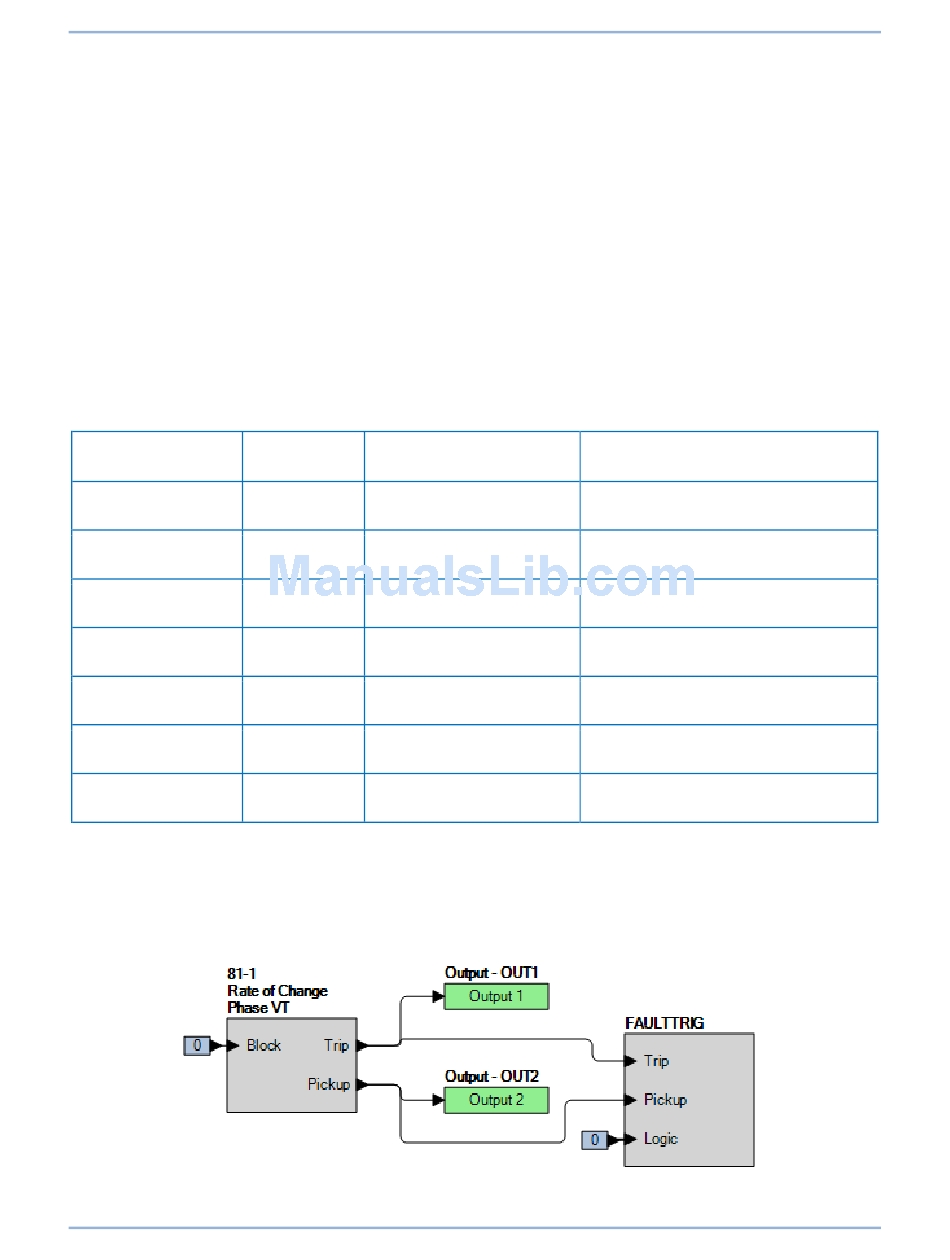

Figure 294. BESTlogicPlus Settings (ROC Frequency)
Screen
Enables 81-1 function for Rate of
Change mode
Sets source to Phase VT
Sets pickup to 10 Hz/sec
Sets voltage inhibit pickup to 40 V
Sets over frequency inhibit to 64 Hz
Sets under frequency inhibit to
46 Hz
Enables ROC target for 81-1
9424200994 Rev N
Description
BE1-11g
