62
Setting
Mode*
Pickup
Inhibit Level
Timing Mode
Time Delay (Definite Timing)
Time Dial (Inverse Timing)
* To use 3V0, V1, or V2, the VTP connection cannot be single-phase.
Auxiliary Undervoltage (27X) Protection

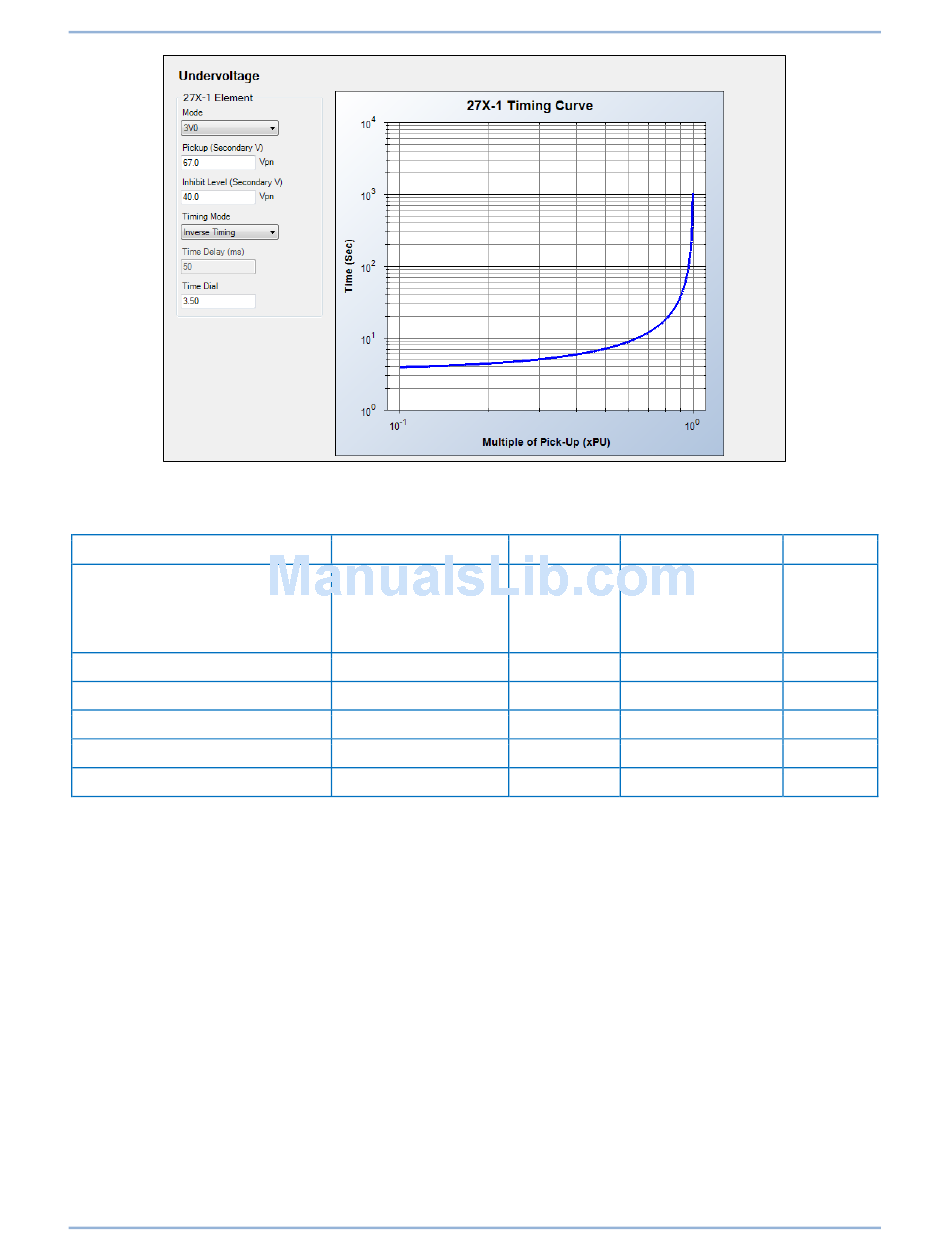

Figure 47. Auxiliary Undervoltage Settings Screen
Table 18. Operational Settings
Range
Disabled,
3V0, V1, V2,
Vx Fundamental,
Vx Third Harmonic
0 or 1 to 150
0 or 1 to 150
Definite or Inverse
50 to 600,000
0 to 9.9
Increment
Unit of Measure
n/a
n/a
0.1
volts
0.1
volts
n/a
n/a
varies
milliseconds
0.1
units
9424200994 Rev N
