148
Element Blocking
The Block input provides logic-supervision control of the element. When true, the Block input disables the
element by forcing the Trip and Pickup outputs to logic 0 and resetting the element timer. Connect the
element Block input to the desired logic in BESTlogicPlus. When the element is initially selected from the
Elements view, the default condition of the Block input is a logic 0.

Logic Connections

Remote analog input element logic connections are made on the BESTlogicPlus screen in
BESTCOMSPlus. The remote analog input element logic block is illustrated in Figure 93. Logic inputs and
outputs are summarized in Table 56.
Name Function
Block Input
Trip Output
Pickup Output

Operational Settings

Remote analog input element operational settings are configured on the Remote Analog Input settings
screen (Figure 94) in BESTCOMSPlus. Setting ranges and defaults are summarized in Table 57.
Setting
Mode Disabled, Over, or Under
Source Module 1 or 2, Input 1, 2, 3, or 4
–99,999.9 to 99,999.9
Pickup
–99,999.9 to 99,999.9
Inhibit
Time Delay
Analog Input Protection

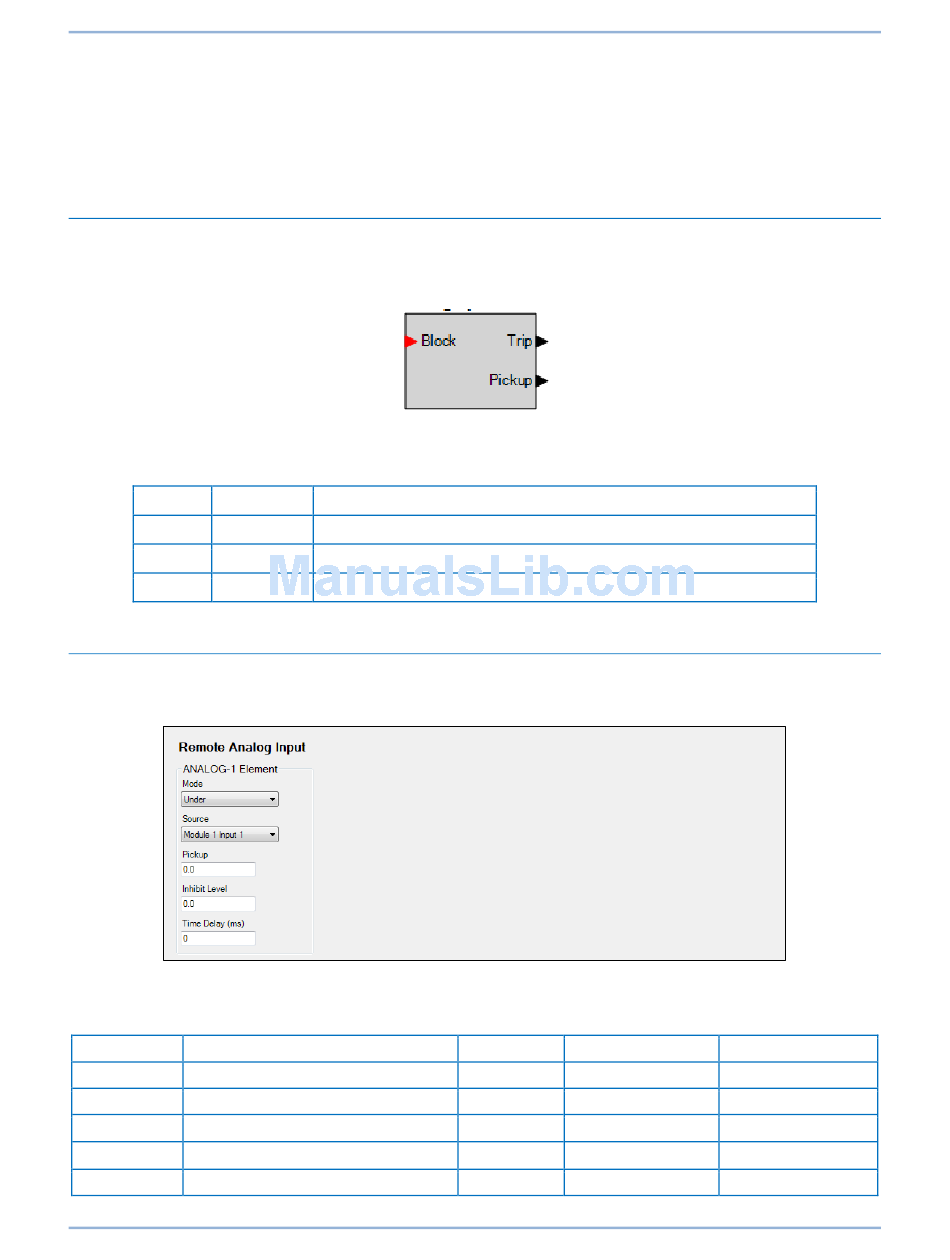

Figure 93. Remote Analog Input Element Logic Block
Table 56. Logic Inputs and Outputs
Disables the analog input element when true
True when the analog input element is in trip condition
True when the analog input element is in pickup condition
Figure 94. Remote Analog Input Settings Screen
Table 57. Operational Settings
Range
0 to 60,000
Purpose
Increment Unit of Measure
n/a n/a
n/a n/a
0.1 n/a
0.1 n/a
varies milliseconds
9424200994 Rev N
Default
Disabled
Module 1, Input 1
0
0
0
BE1-11g
