9424200994 Rev N
becomes an Off-Page Input. The Trip Bus Off-Page Input in connected to physical Output 1 on
the BE1-11g. Therefore, the OUT1 contacts operate when the 50-3 element is tripped.
BE1-11g

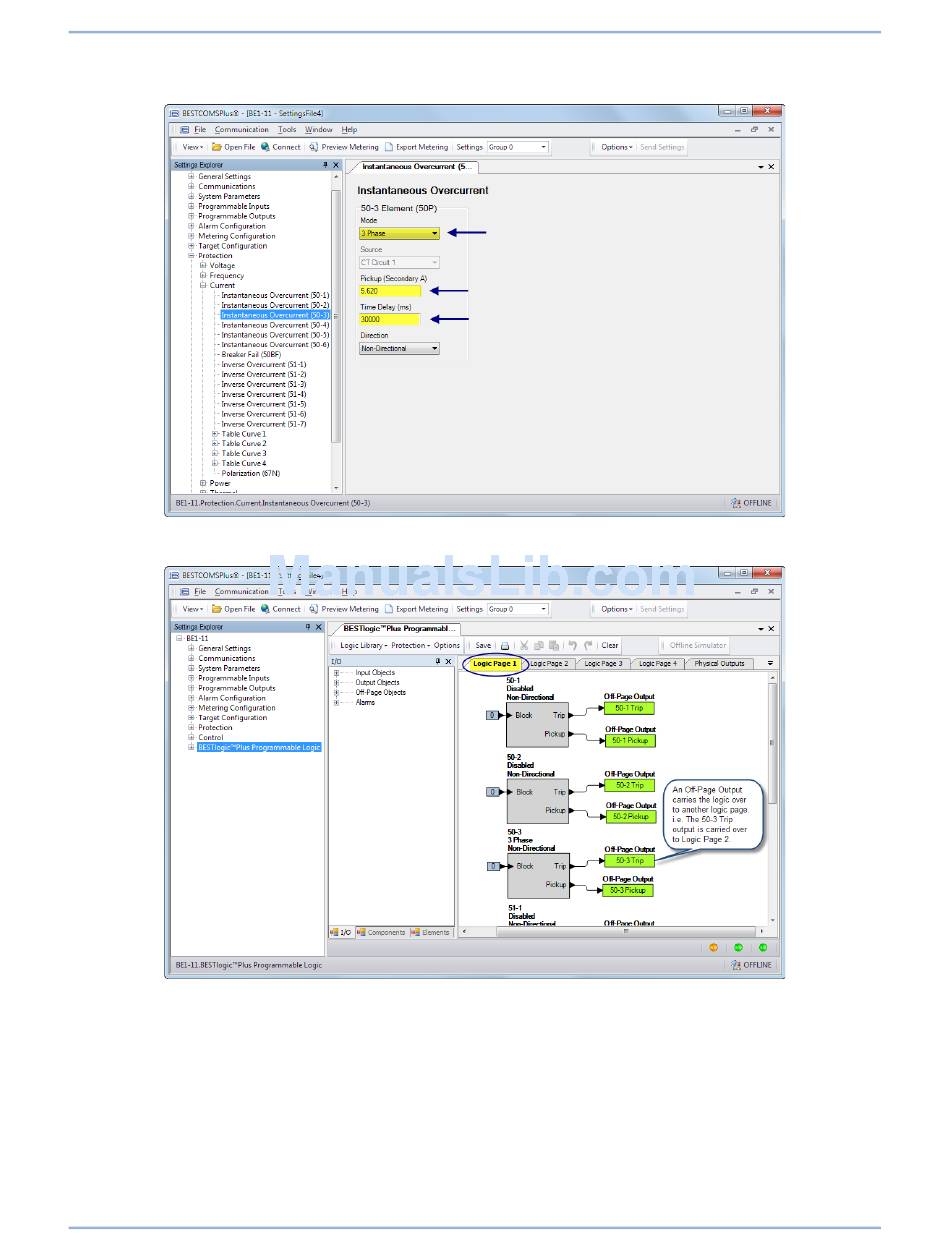

Figure 13. Instantaneous Overcurrent (50-3) Screen
Figure 14. BESTlogicPlus Logic Page 1
