166
Block input to the desired logic in BESTlogicPlus. When the element is initially selected from the
Elements view, the default condition of the Block input is a logic 0.

Logic Connections

Logic timer element logic connections are made on the BESTlogicPlus screen in BESTCOMSPlus. The
logic timer element logic block is illustrated in Figure 108. Logic inputs and outputs are summarized in
Table 63.
Name
Logic Function
Initiate
Input
Block
Input
Output
Output

Operational Settings

Logic timer element operational settings are configured on the Logic Timers (62) settings screen (Figure
109) in BESTCOMSPlus. Setting ranges and defaults are summarized in Table 64.
Logic Timers (62)

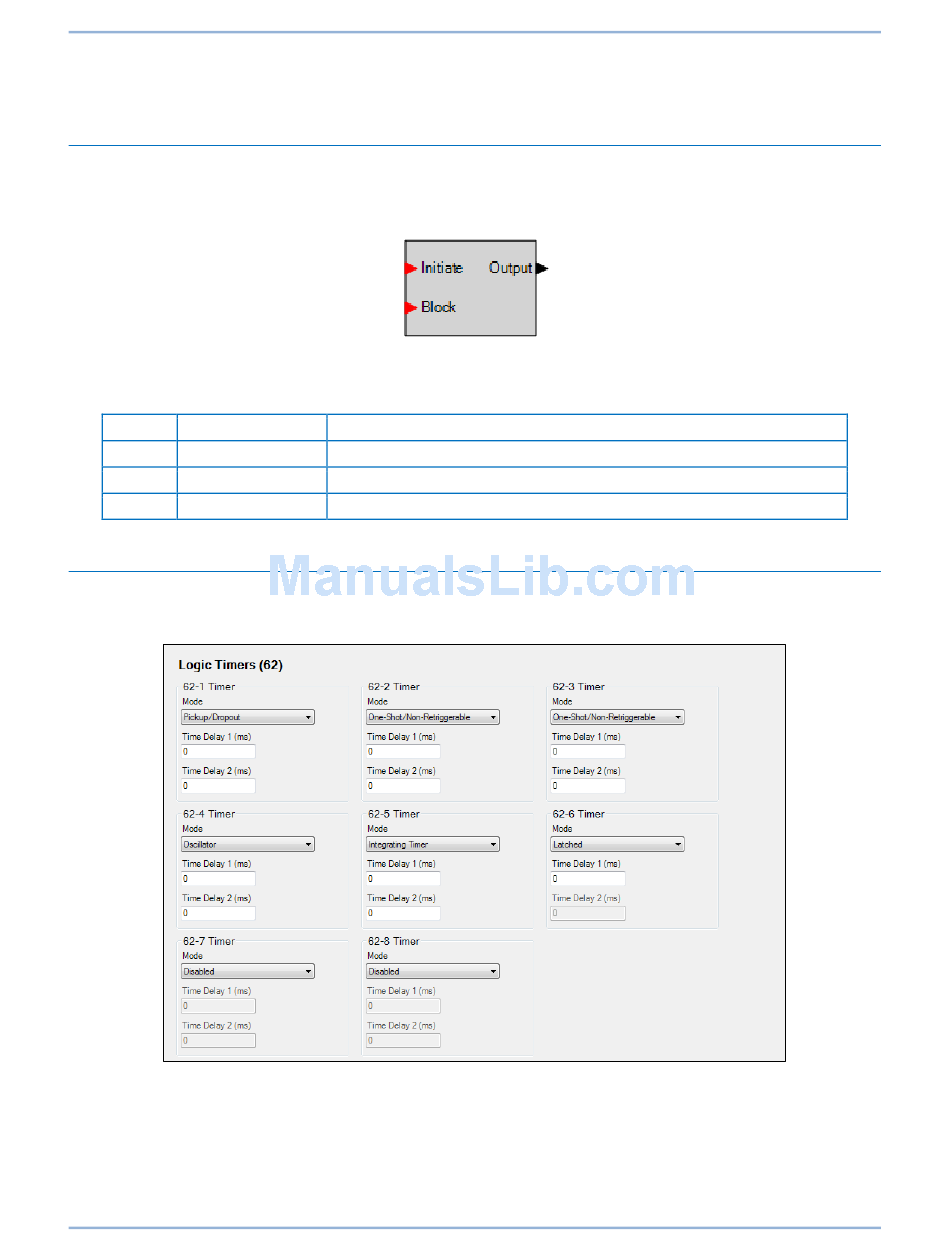

Figure 108. Logic Timer Element Logic Block
Table 63. Logic Inputs and Outputs
Starts the 62 timing sequence
Disables the 62 function when true
True when 62 timing criteria have been met according to mode
Figure 109. Logic Timers Settings Screen
9424200994 Rev N
