Offline Logic Simulator; Bestlogic™Plus File Management - Basler BE1-11g Instruction Manual

9424200994 Rev N
Initiate
Initiate
Dropout

Offline Logic Simulator

The offline logic simulator allows you to change the state of various logic elements to illustrate how that
state travels through the system. Before running the logic simulator, you must click the Save button on the
BESTlogicPlus toolbar to save the logic to memory. Changes to the logic (other than changing the state)
are disabled when the simulator is enabled. Colors are selected by clicking the Options button on the
BESTlogicPlus toolbar. By default, Logic 0 is red and Logic 1 is green. Using your mouse, double-click on
a logic element to change its state.
An example of the offline logic simulator is shown in Figure 236. Output 1 is Logic 0 (red) when Input 1 is
Logic 0 (red) and Fixed 1 is Logic 1 (green).
BESTlogic™Plus File Management
To manage BESTlogicPlus files, use the Settings Explorer to open the BESTlogicPlus Programmable
Logic tree branch. The BESTlogicPlus Programmable Logic toolbar is used to manage BESTlogicPlus
BE1-11g
Output
Pickup
Timer
Output
Timer

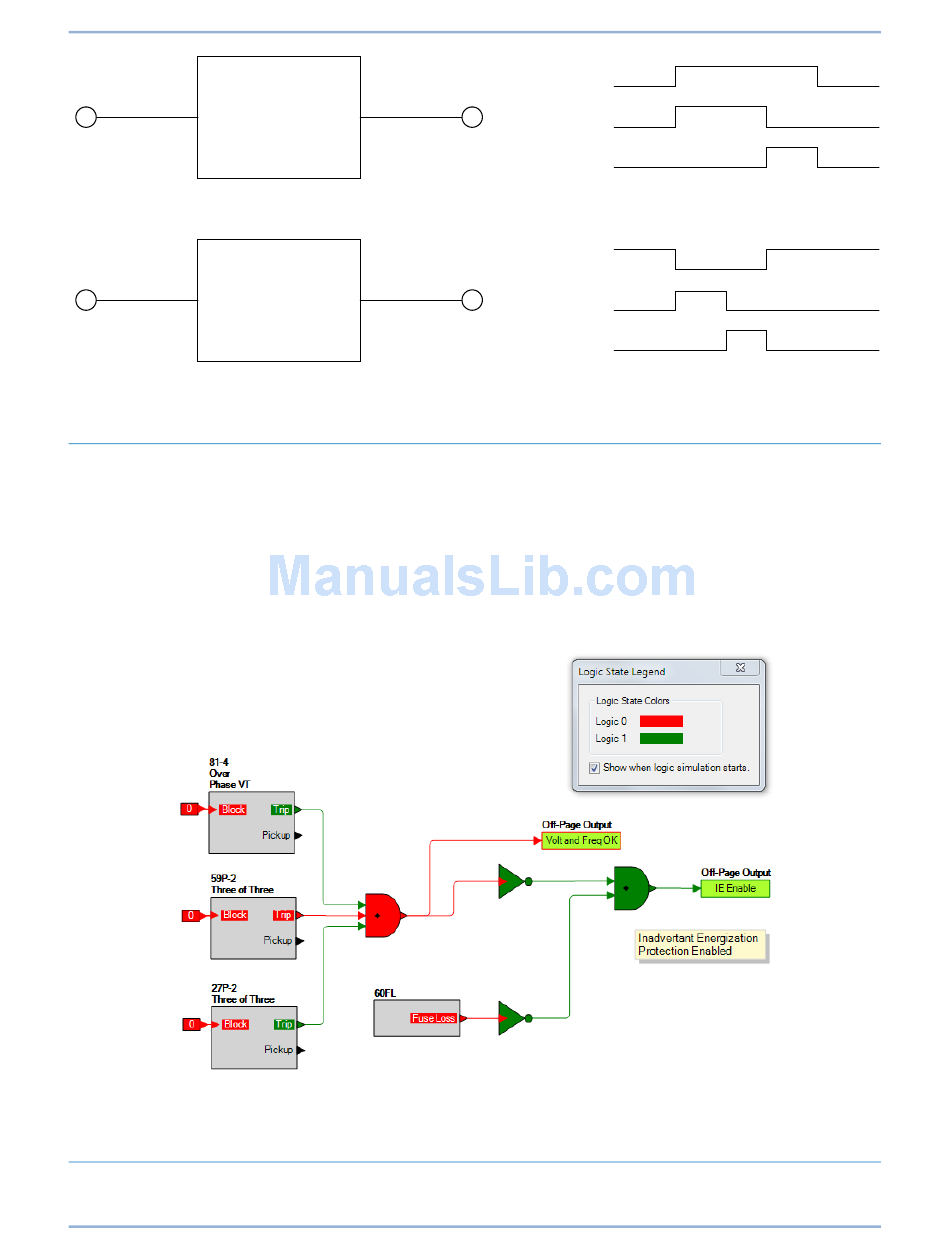

Figure 235. Pickup and Dropout Timer Logic Blocks
Figure 236. Offline Logic Simulator Example
Initiate
Pickup Time
Output
Initiate
Dropout Time
Output
313
P0048-03
BESTlogic™Plus
