298
BESTlogic™Plus Composition
There are three main groups of objects used for programming BESTlogicPlus. These groups are I/O,
Components, and Elements. For details on how these objects are used to program BESTlogicPlus, see
the paragraphs on Programming BESTlogicPlus.
I/O
This group contains Input Objects, Output Objects, Off-Page Objects, and Alarms. Input objects can be
logically connected to any logic block input. Output objects can be logically connected to any logic block
output. Table 98 lists the names and descriptions of the objects in the I/O group.
Name
Logic 0
Logic 1
Physical Inputs
IN1 – IN7
Status Inputs
Alarm Reset
Status Inputs
CT Circuit 1 Current
Detected
Status Inputs
Target Reset
Physical Outputs
OUT1 – OUT8 and
OUTA
Off-Page Output
Off-Page Input
Logic Alarm
Major Alarm
Minor Alarm
BESTlogic™Plus

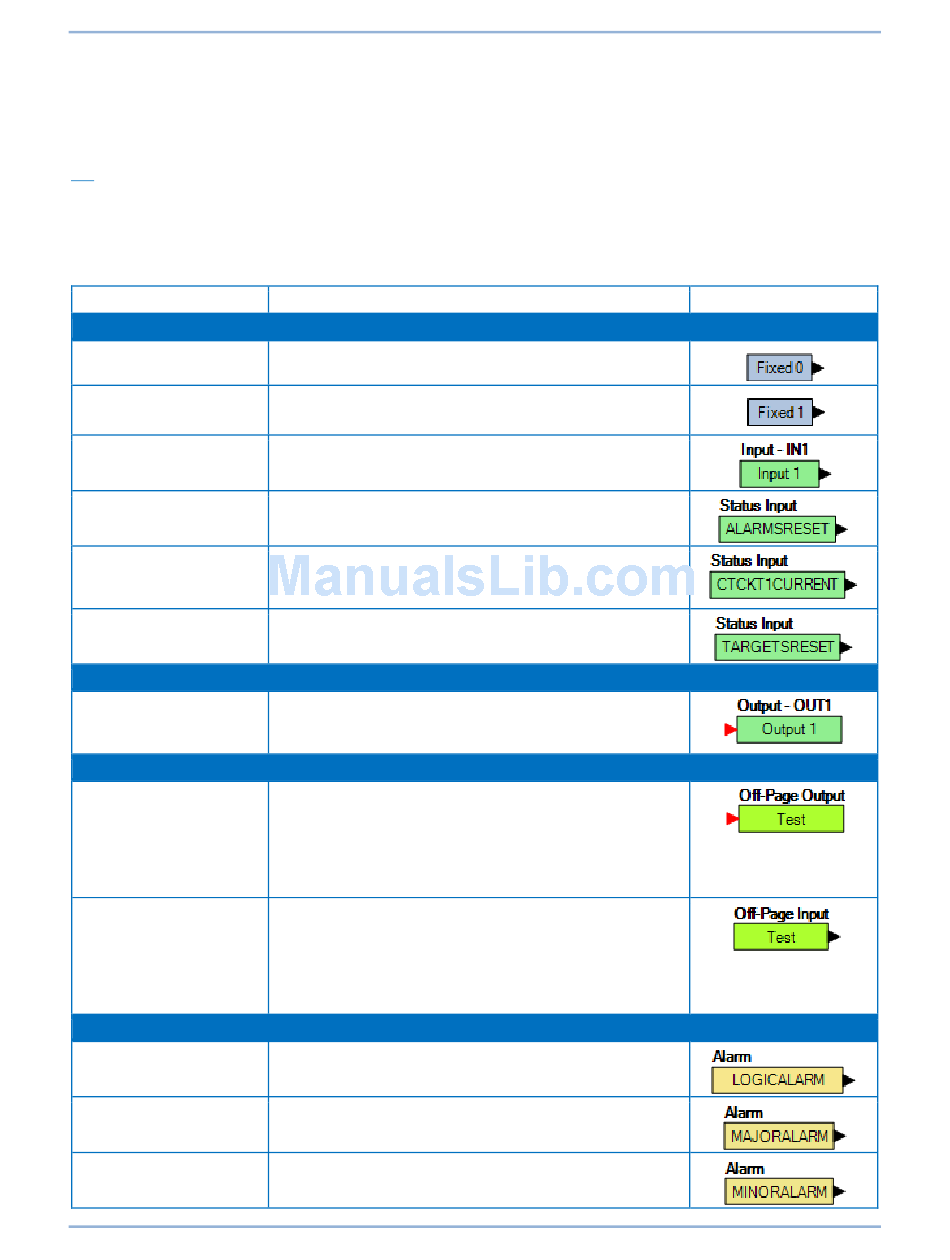

Table 98. I/O Group, Names and Descriptions
Description
Input Objects
Always false (Low). Double-click or right-click on the
object to change the fixed state from 0 to 1.
Always true (High). Double-click or right-click on the object
to change the fixed state from 1 to 0.
True when Physical Input x is active.
The Alarm Reset status input goes momentarily high
when the Major, Minor, and Logic alarms are cleared.
The CT Circuit 1 Current Detected status input goes high
when ac current is greater than 5% of nominal.
The Target Reset status input goes momentarily high
when the targets are cleared.
Output Objects
Physical Outputs 1 through 8 and A.
Off-Page Objects
Used in conjunction with the Off-Page Input to transform
an output on one logic page into an input on another logic
page. Outputs can be renamed by right-clicking and
selecting Rename Output. Right-clicking will also show
pages that the corresponding inputs can be found on.
Selecting the page will take you to that page.
Used in conjunction with the Off-Page Output to transform
an output on one logic page into an input on another logic
page. Inputs can be renamed by right-clicking and
selecting Rename Input. Right-clicking will also show
pages that the corresponding outputs can be found on.
Selecting the page will take you to that page.
Alarms
True when the Logic Alarm is true. Refer to the
chapter for more information.
True when the Major Alarm is true. Refer to the
chapter for more information.
True when the Minor Alarm is true. Refer to the
chapter for more information.
9424200994 Rev N
Symbol
Alarms
Alarms
Alarms
BE1-11g
