428
Step 2:
Use BESTCOMSPlus to configure the BESTlogicPlus programmable logic shown in Figure 292.
Blocking is disabled.
OUT1 closes for 81-1 Trip.
OUT2 closes for 81-1 Pickup.
Fault recording is enabled.
Step 3:
Use BESTCOMSPlus to open the Protection, Frequency, Frequency (81-1) screen and send
the first row of test settings in Table 175 to the BE1-11g.
Step 4:
Prepare to monitor the 81-1 function operation. Operation can be verified by monitoring OUT2
(see Figure 292).
Step 5:
Connect and apply a 120 Vac, 60-hertz voltage source to terminals C13 (A-phase) and C16
(neutral).
Step 6:
Slowly increase the frequency of the applied voltage until OUT2 closes and record the pickup.
Verify that there is an 81-1-Over target on the front-panel display. Slowly decrease the
frequency until OUT2 opens and record the dropout.
Step 7:
Repeat Step 6 for the 67 Hz and 69 Hz pickup settings listed in Table 175. Record the results.
Step 8:
(Optional.) Repeat steps 1 through 7 for settings groups 1, 2, and 3.
Step 9:
(Optional.) Repeat steps 1 through 8 for 81-2, 81-3, 81-4, 81-5, 81-6, 81-7, and 81-8.
Underfrequency Pickup Verification
Step 1:
Use BESTCOMSPlus to send the operational settings in Table 176 to the BE1-11g. Reset all
targets.
Setting
Value
Element Mode
Under
Source
Phase VT
Voltage Inhibit
40 V
81-1 Under
Enabled
Frequency (81) Test

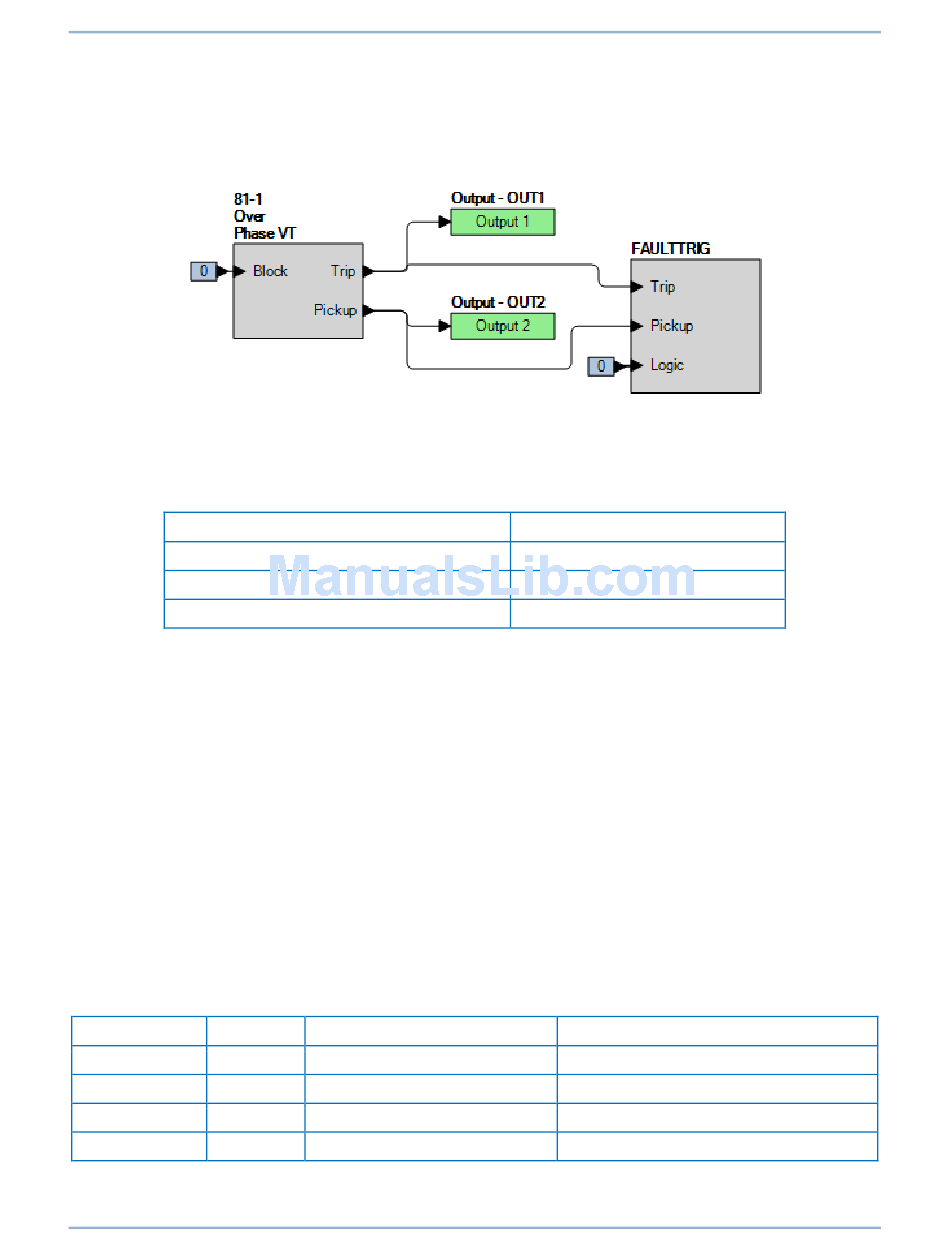

Figure 292. BESTlogicPlus Settings (Overfrequency)
Table 175. Pickup Test Settings (Overfrequency)
Pickup Setting
65 Hz
67 Hz
69 Hz
Table 176. Operational Settings (Underfrequency)
BESTCOMSPlus Screen
Protection, Frequency (81-1)
Protection, Frequency (81-1)
Protection, Frequency (81-1)
Target Configuration, Targets
9424200994 Rev N
Time Delay
0 ms
0 ms
0 ms
Description
Enables 81-1 function for Under mode
Sets source to Phase VT
Sets voltage inhibit pickup to 40 V
Enables Under target for 81-1
BE1-11g
