Basler BE1-11g Instruction Manual page 207

Generator protection system
Hide thumbs Also See for BE1-11g:
Table of Contents

Advertisement

9424200994 Rev N
Target
59X-#-3V0
59X-#-V1
59X-#-V2
59X-#-AUX
59X-#-3RD
60FL
62-#
78OOS
78V
81-#-Over
81-#-Under
81-#-ROC
86-#
87-A/B/C
87-Unrestrained A/B/C
87N-1
Analog In #
Target logging for a protective function can be disabled if the function is used in a supervisory or
monitoring capacity. The following paragraphs describe how the BE1-11g is programmed to define which
protective functions log targets.
Target Settings
Targets are enabled using BESTCOMSPlus. Use the Settings Explorer to open the Target Configuration
tree branch. You can select which protective elements trigger a target by selecting Enabled or Disabled
from the Mode drop-down menu next to the targets. See Figure 136.
BE1-11g
Auxiliary Overvoltage, 3V0-3ph VT
Auxiliary Overvoltage, Positive-Sequence
Auxiliary Overvoltage, Negative-Sequence
Auxiliary Overvoltage, Fundamental VX
Auxiliary Overvoltage, 3
Fuse Loss Detection
Timer Output
Out of Step
Vector Shift
Frequency, Over
Frequency, Under
Frequency, Rate of Change
Lockout Function
Differential Current, Phase A, B, or C
87 Unrestrained, Phase A, B, or C
Neutral Current Differential
Remote Analog Input

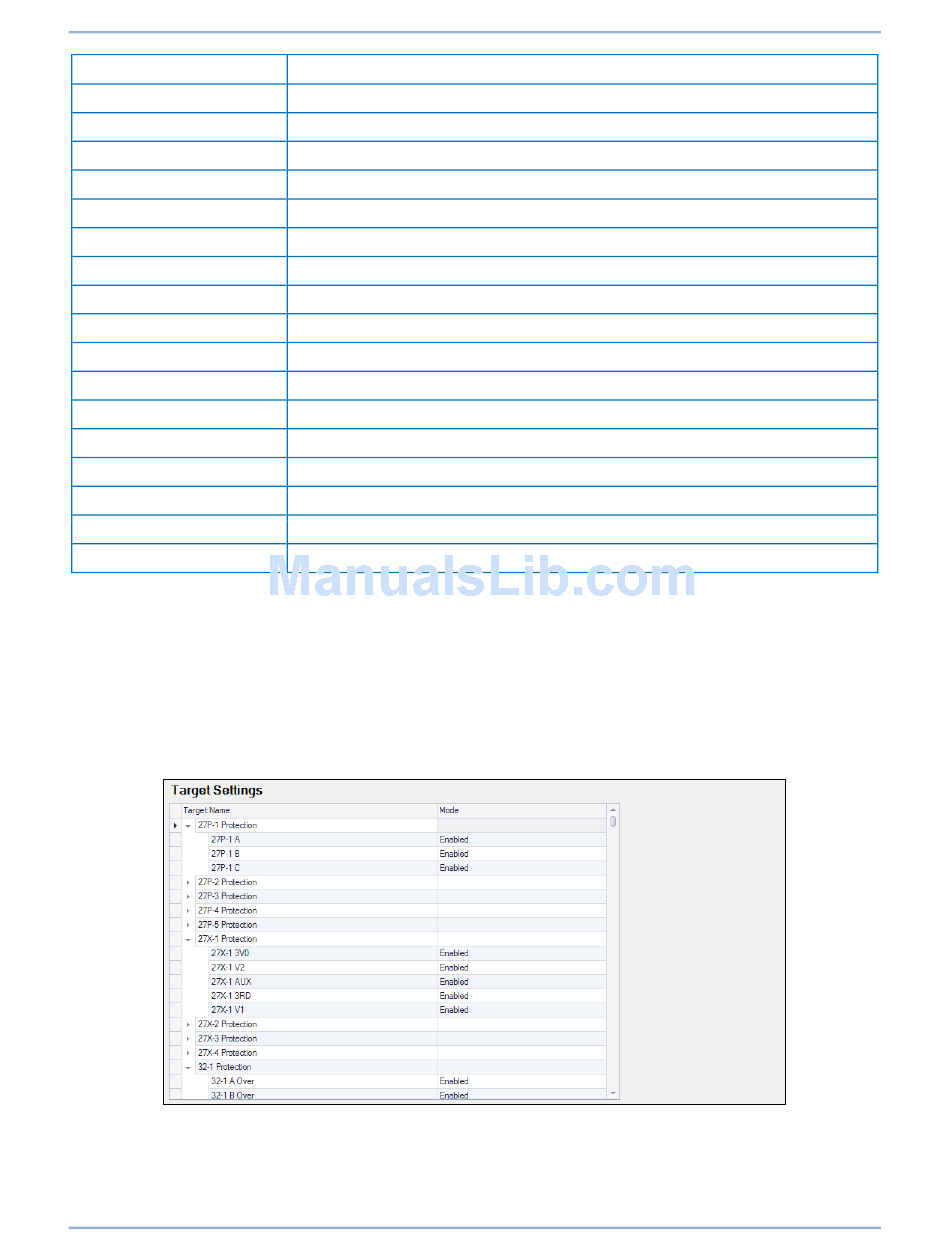

Figure 136. Target Settings Screen
Description
rd
Harmonic VX
195
Fault Reporting
