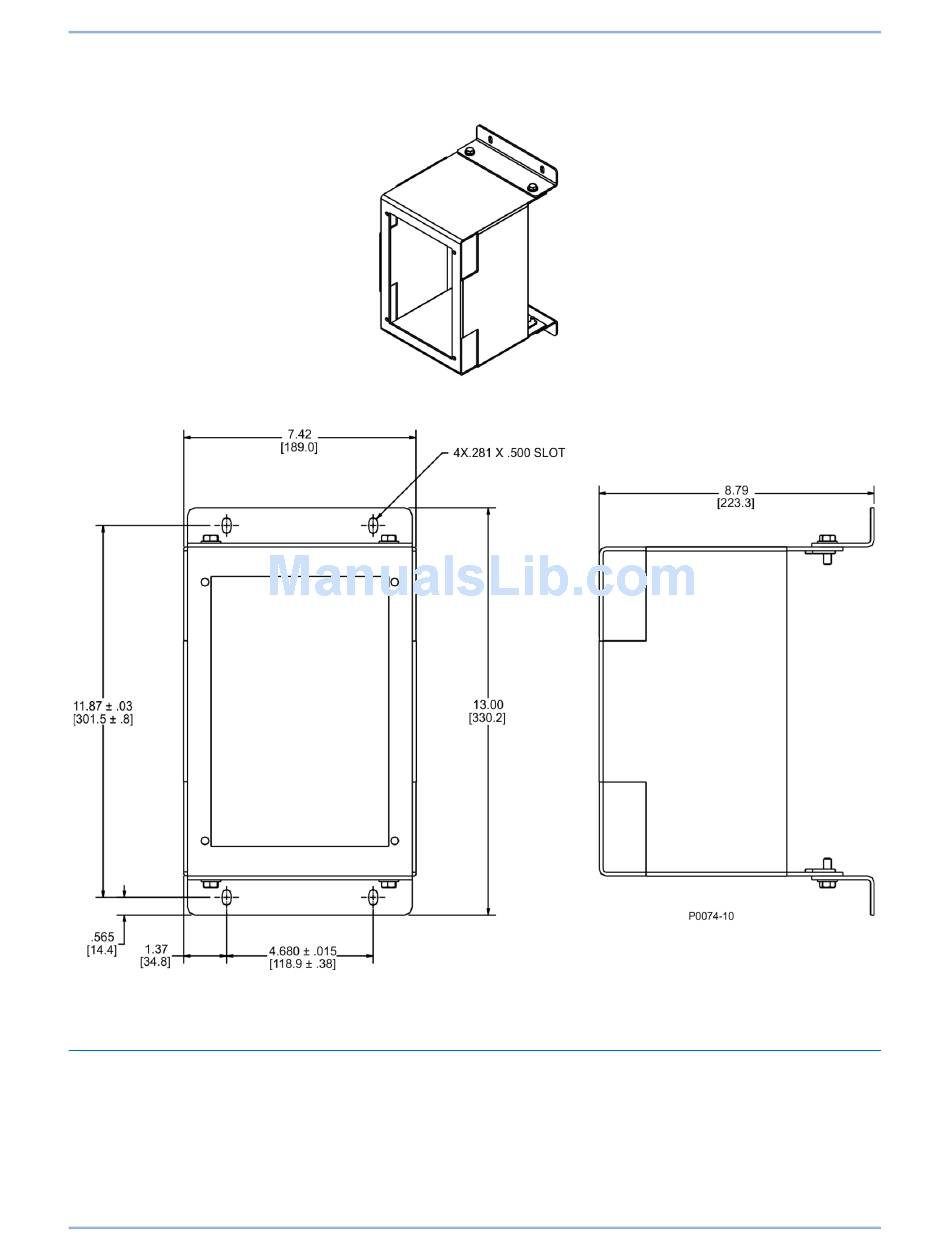

A pivoting projection-mounting kit for a J case is shown in Figure 189. When installed, this kit provides
rear access to connections by allowing the BE1-11g to swing left or right. Order Basler part number
9424226101.
Figure 189. Pivoting Projection-Mounting Kit (Basler P/N: 9424226101)

H or P Type Case Cutouts and Dimensions

H1 rack-mount package dimensions are shown in Figure 190. H1 panel-mount package dimensions are
shown in Figure 191. Dimensions are shown in inches [millimeters].
