Basler BE1-11g Instruction Manual page 273

Generator protection system

Hide thumbs Also See for BE1-11g:

Table of Contents

9424200994 Rev N

Part number 9289900016 is used to panel mount two dovetailed protection systems. Figure 197 gives the

cutout and drilling dimensions for panel mounting two dovetailed cases without an escutcheon plate.

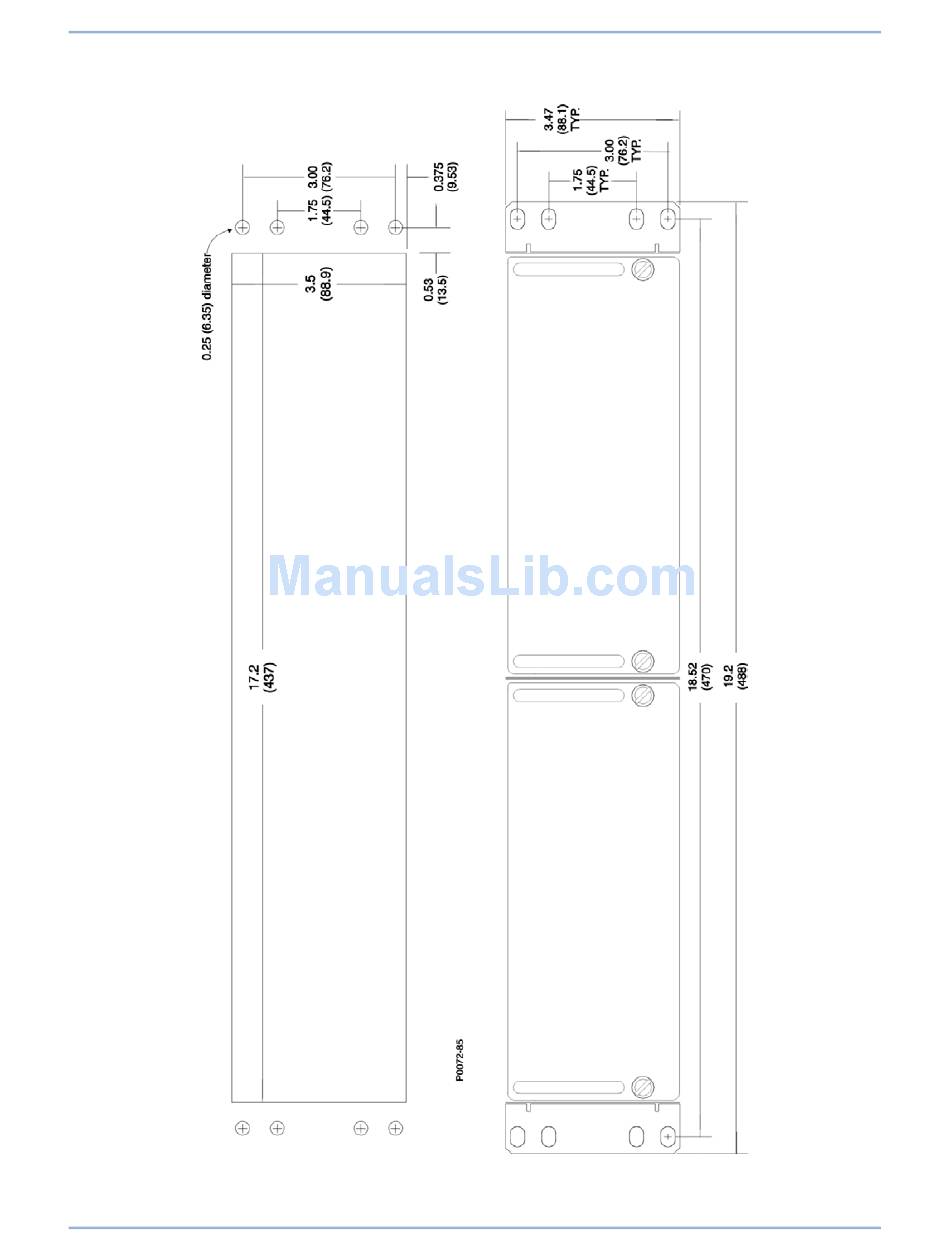

Figure 197. Mounting Dimensions for Panel Mounting Two H1 Protection Systems

without an Escutcheon Plate
