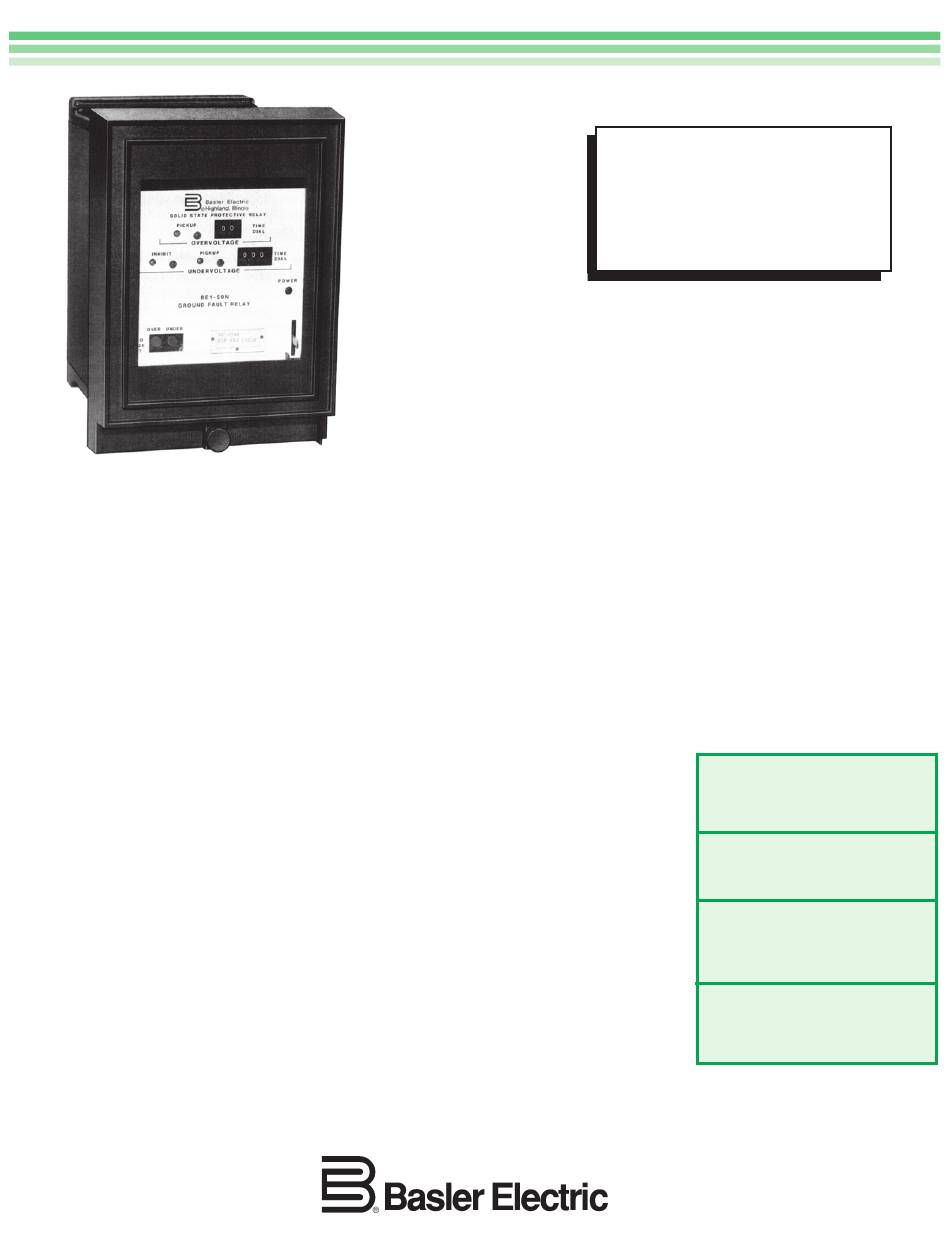

The BE1-59N Ground Fault Overvoltage Relay provides sensitive protection for
ungrounded and high resistance grounded systems.
• Provides 100% stator ground fault protection.
• 100/120 Vac or 200/240 Vac nominal sensing input.
• Four sensitivity ranges for overvoltage are available: 1-20 and 10-50 Vac for a
100/120 Vac input and 2-40 and 20-100 Vac for a 200/240 Vac input.
• Four sensitivity ranges for undervoltage are available: 0.1-2.5 Vac and 0.5-12 Vac
for a 100/120 Vac input and 0.2-5 Vac and 1-24 Vac for a 200/240 Vac input.
• Instantaneous, definite, and inverse time characteristics.
• 40 dB harmonic filtering.
• Low sensing input burden.
• Power supply status contact.
• Qualified to the requirements of
— IEEE C37.90.1-1989 and IEC 255 for surge withstand capability;
— IEC 255-5 for impulse.
• UL Recognized under Standard 508, UL File #E97033.
• Five year warranty.
ADDITIONAL INFORMATION
INSTRUCTION MANUAL
Request publication 9171400990
STANDARDS, DIMENSIONS & ACCESSORIES
Request bulletin SDA
ADVANTAGES
