Setting
87 Mode
Slope Mode
Minimum Restrained
Pickup
Restraint Slope 1
BE1-11g

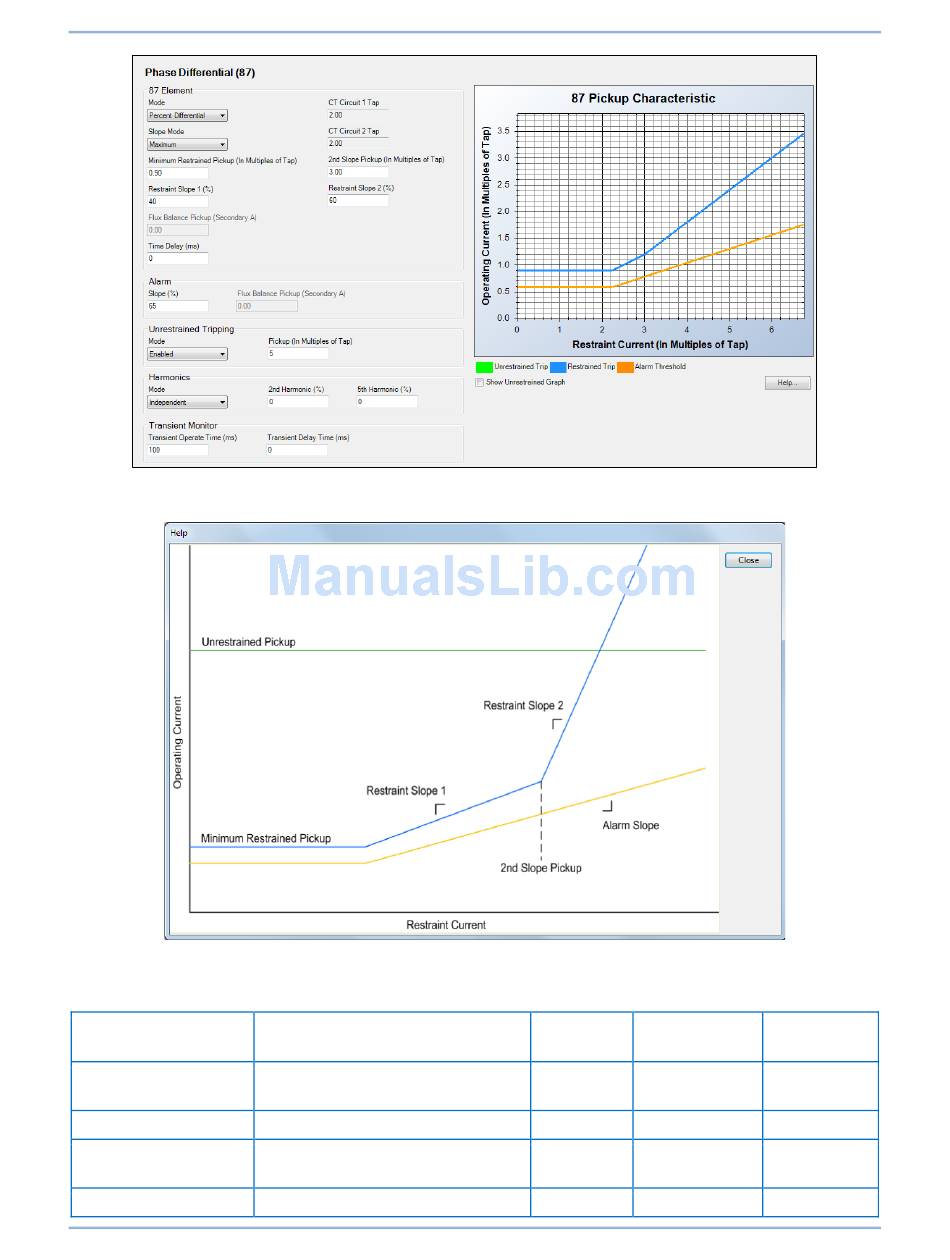

Figure 71. Phase Current Differential Settings Screen
Figure 72. Phase Current Differential Operation Chart
Table 41. Operational Settings
Range
Disabled, Percent Differential, or
Flux Balance
Maximum or Average
0 or 0.1 to 1
5 to 100
Unit of
Increment
Measure
n/a n/a
n/a n/a
0.01 n/a
1 percent
0BPhase Current Differential (87) Protection
115
Default
Disabled
Maximum
0
45
